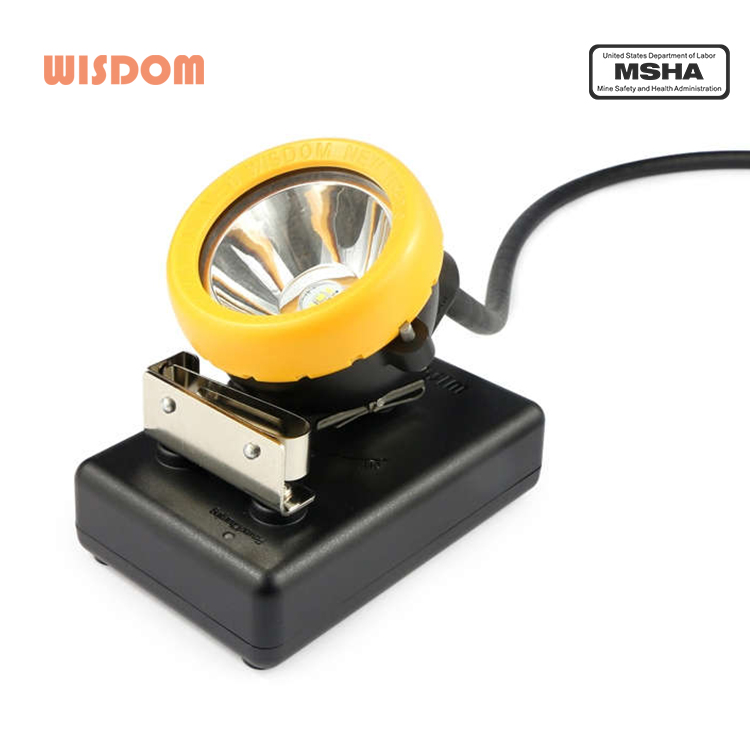

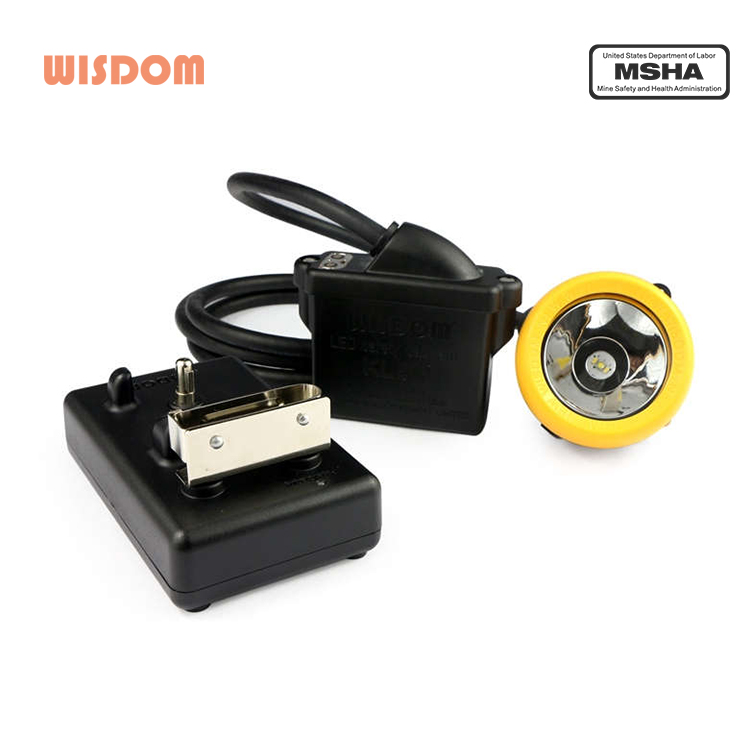

Original WISDOM Brand KL5M with 13H/16H working time and 16000Lux/11000Lux
Click on the image to view the original image
Product: views:2Original WISDOM Brand KL5M with 13H/16H working time and 16000Lux/11000Lux
Branch: WISDOM
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-11-19 18:33
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
WISDOM
Model Number:
KL5M
Usage:
Industrial
Power Source:
Rechargeable Battery
Lighting Period (h):
>12
Battery Type:
Lithium Ion
Certification:
CE, MSHA/EMC/ GOST/ RoHS/ CE/UL
IP Rating:
IP68
Lamp Body Material:
PC
Base Type:
PAR46
Warranty(Year):
2
Light Source:
LED
LED Light Source:
cree
Product name:
cap lamp loading system
Function:
mining
Material:
Bayer PC
Weight:
475/500G
Brightness:
11000-18000Lux
LED:
CREE LED
Size:
85x94x36mm
Supply Ability
Supply Ability:
500000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
carton packing 1pcs/box/170x100x 83mm ; 20pcs/carton/38x225x44cm; NW: 11kgs GW: 13kgs.
Port
SHENZHEN,CHINA

                       Original WISDOM Brand KL5M with 13H/16H working time and 16000Lux/11000Lux



Version     tandard version

(MSHA,IECEx)

Long versionSuper Long versionMSHA
Rated capacity

   7800 mAh

7800 mAh7800 mAh

8700 mAh

Rated voltage3.7 V
Continuous discharging time13 H16 H24 H16H
Main light LED working voltage3.0 V
Main light LED working current0.64 A0.5 A0.38 A0.35 A
Main light power1.92 W1.5 W1.14 W1.1 W
Main light luminous flux340 lm279 lm229 lm145 lm
Lamp lighting degree initial lighting degree in 1 m18000 lx14000 lx11000 lx8700 lx
Main light life span100000 h
Auxiliary light power0.4 W
Auxiliary light life span40000 h
Short circuit protection time< 320 μs
Life span of the battery (Recharges)1200 cycles (In reasonable working condition)
Charging time5 h4 h4 h3 h
Dimensions85x94x36 mm
Weight

475/500G;16.75/17.63 oz
