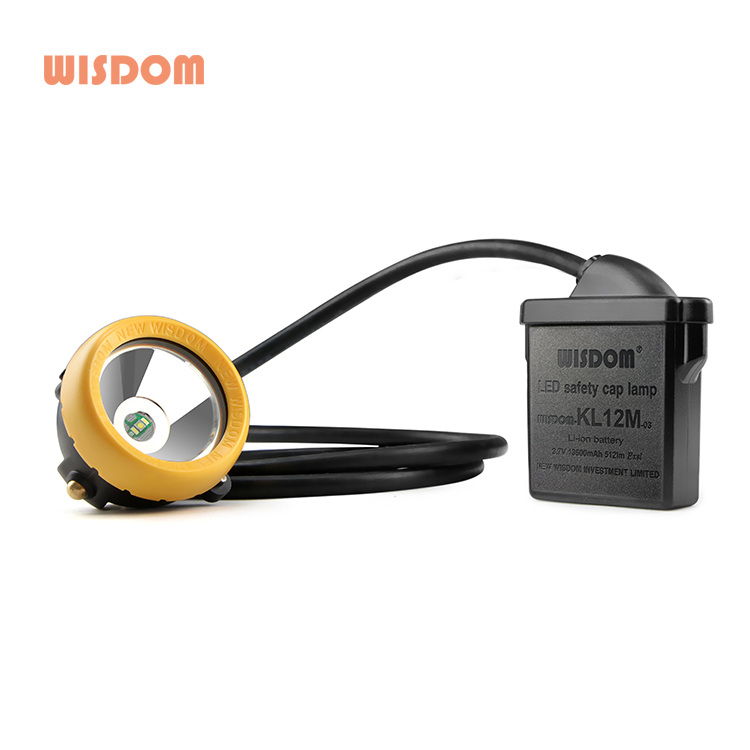

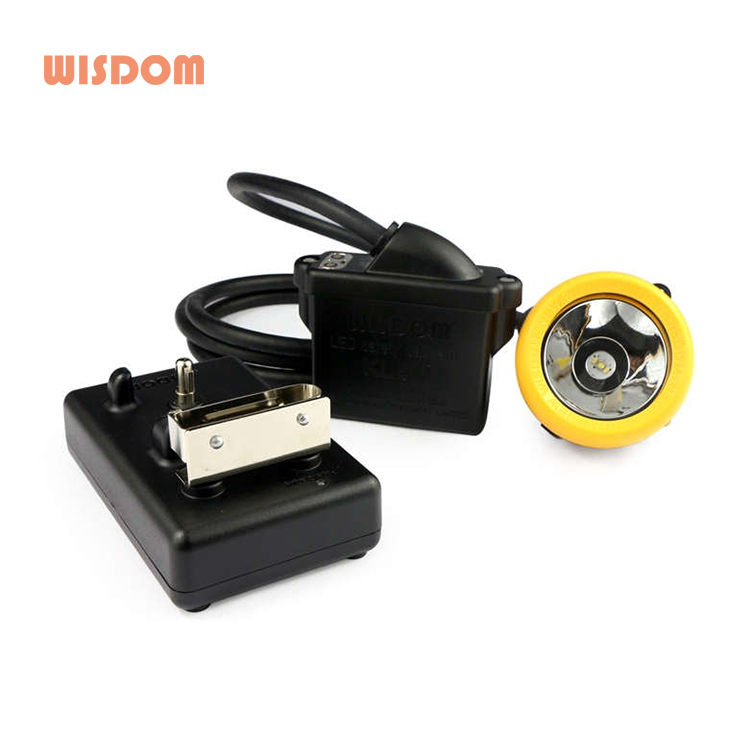

Underground mining LED light long working time safety helmet lamp
| Version | Standard version (ATEX,IECE) | Long version | Super Long version | ATEX(M1) |
| Rated capacity | 14000 mAh | 14000 mAh | 14000 mAh | 14000 mAh |
| Rated voltage | 3.7 V | |||
| Continuous discharging time | 13 H | 16 H | 24 H | 13 H |
| Main light LED working voltage | 3.0 V | |||
| Main light LED working current | 0.58 A | 0.43 A | 0.34 A | - |
| Main light power | 3.24 W | 2.67 W | 1.92 W | 3.24 W |
| Main light luminous flux | 512 Lm | 430 Lm | 340 Lm | 512 Lm |
| Lamp lighting degree initial lighting degree in 1 m | 28000 Lux | 24000 Lux | 18000 Lux | 28000 Lux |
| Main light life span | 100000 H | |||
| Auxiliary light power | 0.4 W | |||
| Auxiliary light life span | 40000 h | |||
| Short circuit protection time | < 320 μs | |||
| Life span of the battery (Recharges) | 1200 cycles (In reasonable working condition) | |||
| Charging time | 5 h | 4 h | 4 h | 4 h |
| Dimensions | 103x94x36mm | |||
| Weight | 475/500G;16.76/16.64 oz | |||
