Home > Products > Brightest among the industry warranty 2 years mini miner cap lamp with Certificate ATEX

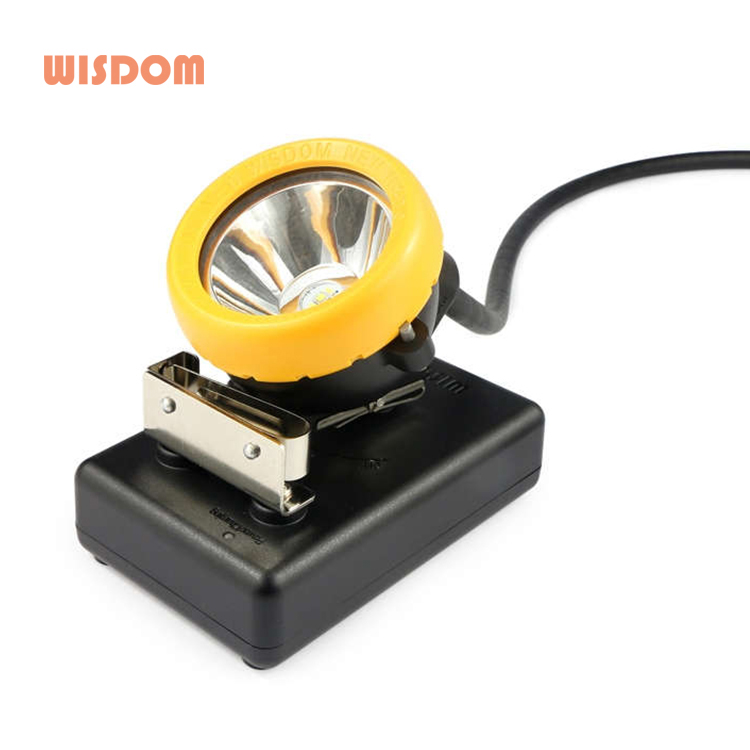

Brightest among the industry warranty 2 years mini miner cap lamp with Certificate ATEX
Click on the image to view the original image
Product: views:1Brightest among the industry warranty 2 years mini miner cap lamp with Certificate ATEX
Branch: WISDOM
Size: 10.3X9.4X3.6 cm
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-11-19 18:33
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
WISDOM
Model Number:
KL8M
Usage:
Industrial
Power Source:
Rechargeable Battery
Lighting Period (h):
>12
Battery Type:
Lithium Ion, ATL with Li-ion Battery
Certification:
CE
IP Rating:
IP68
Base Type:
PAR36
Warranty(Year):
2
Light Source:
LED
Material OF miner lamp:
PC
Light resource:
430 Lumens CREE LED
Certificate:
ATEX-M1/EMC /RoHS/IP68/CE/LVD/MA/EMC/ CCC/
KL8M:
Super waterproof and Explosion-proofwith Bayer PC
Working time:
More than 13H
Rated voltage:
3.8V
Superbright:
14000Lux~24000Lux
Rechargeable:
1200 cycles (in reasonable working condition)
Battery:
Panasonic

Packaging & Delivery

Selling Units:
Single item
Single package size:
10.3X9.4X3.6 cm
Single gross weight:
0.475 kg
Package Type:
standard
Lead Time:
Quantity(Piece)1 - 10001001 - 20002001 - 3000>3000
Est. Time(days)357To be negotiated

Brightest among the industry warranty 2 years mini miner cap lamp with Certificate ATEX



VersionStandard version (IECEX)
Long versionSuper Long versionATEX(M1)
Rated capacity  10400 mAh  10400 mAh10400 mAh10400 mAh
Rated voltage3.7 V
Continuous discharging time13 H16 H24 H13 H
Main light LED working voltage3.0 V
Main light LEDworking current0.85 A0.64 A0.5 A-
Main light power2.67 W1.92 W1.5W2.67W
Main light luminous flux430 lm340 lm279 lm430 lm
Lamp lighting degree
(Initial lighting degree in 1 m)
24000 Lux18000 Lux14000 Lux24000 Lux
Main light life span100000 h
Auxiliary light power0.4 W
Auxiliary light life span40000 h
Short circuit protection time< 320 μs
Life span of the battery (Recharges)1200 cycles (In reasonable working condition)
Charging time5 h4 h4 h4h
Dimensions103x94x36mm
Weight475/500 G; 16.76/17.64 oz
