Home > Products > Ergonomic design ,Small offset Panasonic Battery mining headlamp with Certificate ATEX

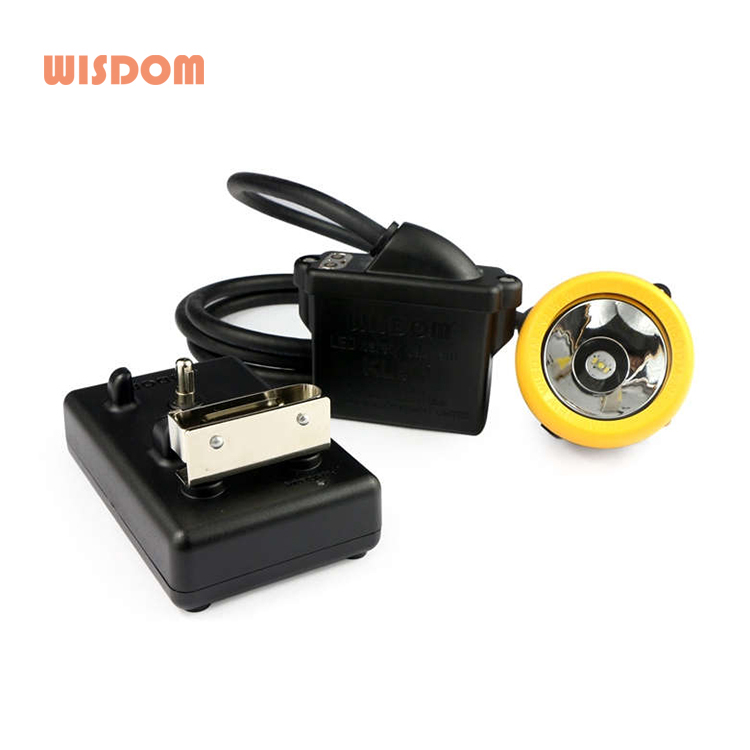

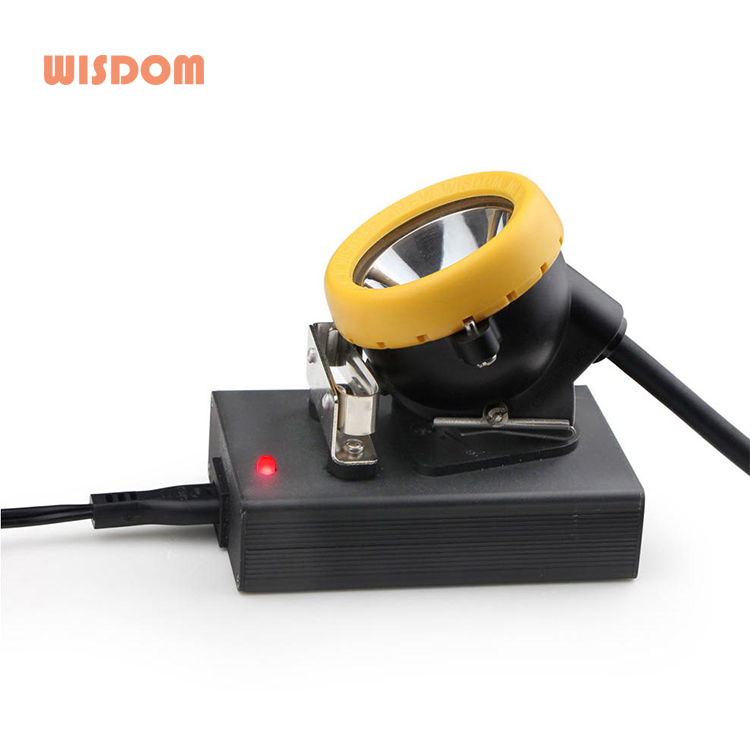

Ergonomic design ,Small offset Panasonic Battery mining headlamp with Certificate ATEX
Click on the image to view the original image
Product: views:0Ergonomic design ,Small offset Panasonic Battery mining headlamp with Certificate ATEX
Branch: WISDOM
Size: 10.4X9.3X3.6 cm
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-11-19 18:33
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
WISDOM
Model Number:
KL8M
Usage:
Industrial
Lighting Period (h):
>12
Battery Type:
Lithium Ion, ATL with Li-ion Battery
Certification:
CE
IP Rating:
IP68
Base Type:
PAR36
Warranty(Year):
2
Light Source:
LED
Material OF miner lamp:
PC
Light resource:
430 Lumens CREE LED
Certificate:
ATEX-M1/EMC /RoHS/IP68/CE/LVD/MA/EMC/ CCC/
KL8M:
Super waterproof and Explosion-proofwith Bayer PC
Working time:
More than 13H
Rated voltage:
3.8V
Superbright:
14000Lux~24000Lux
Rechargeable:
1200 cycles (in reasonable working condition)
Battery:
Panasonic

Packaging & Delivery

Selling Units:
Single item
Single package size:
10.4X9.3X3.6 cm
Single gross weight:
0.475 kg
Package Type:
standard
Lead Time:
Quantity(Piece)1 - 10001001 - 20002001 - 3000>3000
Est. Time(days)357To be negotiated

Ergonomic design ,Small offset Panasonic Battery mining headlamp with Certificate ATEX



VersionStandard version (IECEX)
Long versionSuper Long versionATEX(M1)
Rated capacity  10400 mAh  10400 mAh10400 mAh10400 mAh
Rated voltage3.7 V
Continuous discharging time13 H16 H24 H13 H
Main light LED working voltage3.0 V
Main light LEDworking current0.85 A0.64 A0.5 A-
Main light power2.67 W1.92 W1.5W2.67W
Main light luminous flux430 lm340 lm279 lm430 lm
Lamp lighting degree
(Initial lighting degree in 1 m)
24000 Lux18000 Lux14000 Lux24000 Lux
Main light life span100000 h
Auxiliary light power0.4 W
Auxiliary light life span40000 h
Short circuit protection time< 320 μs
Life span of the battery (Recharges)1200 cycles (In reasonable working condition)
Charging time5 h4 h4 h4h
Dimensions103x94x36mm
Weight475/500 G; 16.76/17.64 oz
