Overview
Quick Details
- Place of Origin:
- Guangdong, China
- Brand Name:
- WISDOM
- Model Number:
- LAMP 3A
- Usage:
- camping, travelling, cycling
- Power Source:
- Rechargeable Battery
- Lighting Period (h):
- >12
- Battery Type:
- Lithium Ion
- Certification:
- CE, ATEX-GroupII/IP68/CE/LVD/RoHS/KC/ UL/ VDE/ CCC/ PSE/ FCC/ LVD/ EMC
- IP Rating:
- IP68
- Lamp Body Material:
- Bayer PC Material
- Base Type:
- PAR36
- Warranty(Year):
- 2
- Light Source:
- LED
- LED Light Source:
- Cree
- Product name:
- LED Mining Light Safety helmet cap lamp hard hat lamp
- Battery type:
- Panasonic
- material of housing:
- Germany Byer PC
- working time:
- more than 13h once fully charged
- power:
- 5000-11000 Lux
- lumen:
- 100-240 lum
- charging way:
- magnetic USB wire andcar charging
Supply Ability
- Supply Ability:
- 500000 Piece/Pieces per Month
Packaging & Delivery
- Packaging Details
- 1 pc/box, 28 pcs/carton, carton size: 38X225X44cm.
- Port
- SHENZHEN, CHINA

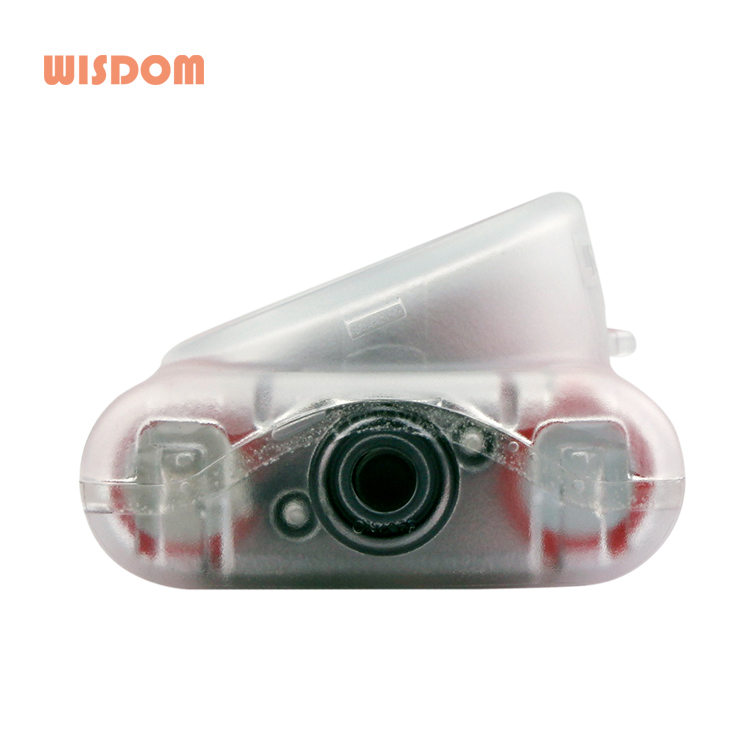

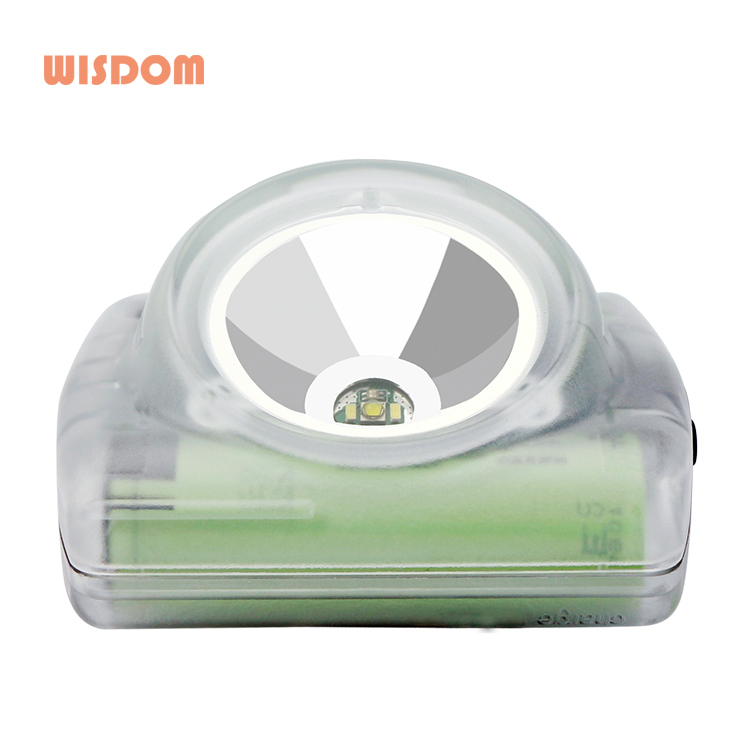

LED Mining Light Safety helmet cap lamp hard hat lamp
Model (ATEX Group II) | Lamp 3A | Lamp 3B | Lamp 3C | Lamp 3D | ||||
Model | LO | HI | LO | HI | LO | HI | LO | HI |
Continuous discharging time (h) | 60 | 13 | 60 | 13 | 60 | 13 | 60 | 13 |
Main Light power (W) | 0.24 | 1.71 | 0.24 | 1.4 | 0.17 | 0.87 | 0.14 | 0.69 |
Initial lighting degree in 1 m (lx) | 1800 | 12000 | 1800 | 10000 | 1500 | 7500 | 1000 | 5500 |
Main light luminous flux (lm) | 50 | 265 | 50 | 226 | 34 | 138 | 28 | 112 |
Rated capacity | 7000 mAh | 5200 mAh | 3500 mAh | 2600 mAh | ||||
Rated voltage | 3.7 V | |||||||
Main light LED working voltage | 3.0 V | |||||||
Main light life span | 100000 h | |||||||
Auxiliary light power | 0.4 W | |||||||
Auxiliary light life span | 40000 h | |||||||
Short circuit protection time | < 320 μs | |||||||
Life span of the battery (Recharges) | 1200 cycles (In reasonable working condition) | |||||||
Charging time | 5 h | 4 h | 4 h | 3.5 h | ||||
Dimensions | 84x69x50mm | |||||||
Weight | 169;5.96 oz | 128 g; 4.52 oz | ||||||
Optional parts | Transparent/colored optical lens (click to view) | |||||||
Rack for bicycle (click to view) | ||||||||
Magnetic USB charger (click to view) |
