Overview
Quick Details
- Place of Origin:
- Guangdong, China
- Brand Name:
- WISDOM
- Model Number:
- WISE LITE 2
- Usage:
- mining,Oil&gas
- Power Source:
- Rechargeable Battery
- Lighting Period (h):
- >12
- Battery Type:
- Lithium Ion
- Certification:
- CE, LVD
- IP Rating:
- IP68
- Lamp Body Material:
- Bayer PC Material
- Base Type:
- PAR36
- Warranty(Year):
- 2
- Light Source:
- LED
- LED Light Source:
- Cree
- Type:
- Mining safety helmet lamps
- Battery type:
- Panasonic
- Working time:
- 16H
- Lumen:
- 167Lm
- Main light life span:
- 100000h
- Water proof:
- IP68
- Weight:
- 169G
- LED:
- CREE led light source
- Certificate:
- MSHA/BV/EMC/RoHS/ CCC/ LVD/CE/FCC/UL/ PSE
Supply Ability
- Supply Ability:
- 600000 Piece/Pieces per Year
Packaging & Delivery
- Packaging Details
- 1 pc/box, 28 pcs/carton, carton size: 38X225X44cm, GW/NW: 768kg/490kg
- Port
- Shenzhen

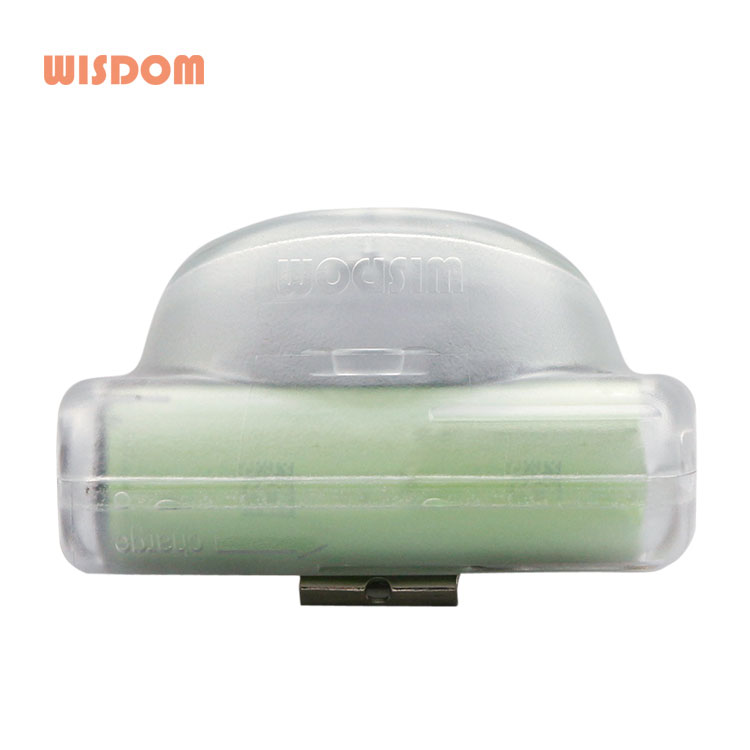

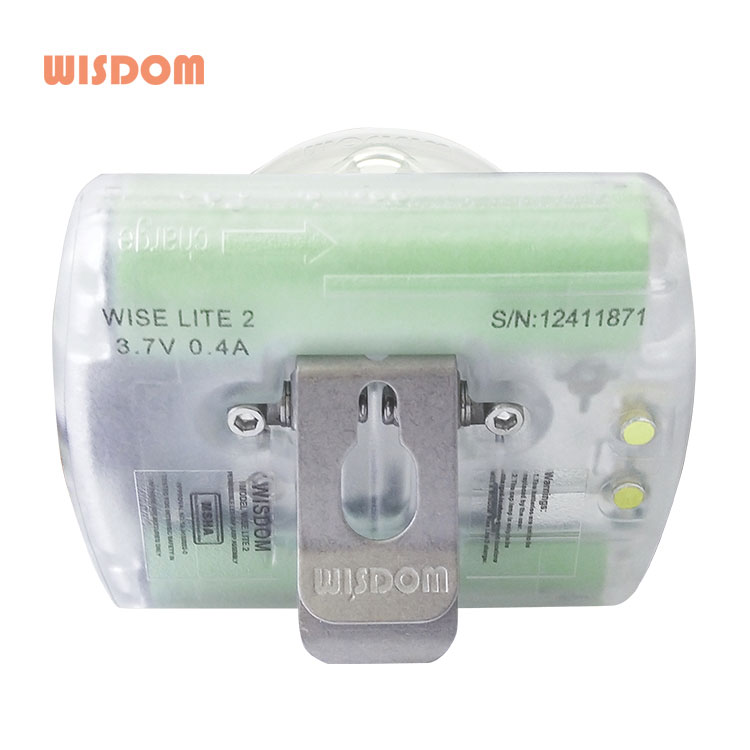

Super Battery Life Explosion Proof 169g Underground Works Cap Lamp
Type (ATEX Group II) | Lamp 6A | Lamp 6B | Lamp 6C | Lamp 6D | ||||
Model | LO | HI | LO | HI | LO | HI | LO | HI |
Continuous discharging time (h) | 60 | 13 | 60 | 13 | 60 | 13 | 60 | 13 |
Main light power (W) | 0.24 | 1.71 | 0.24 | 1.4 | 0.17 | 0.87 | 0.14 | 0.69 |
Lamp light degree initial lighting degree in 1 m (lx) | 1800 | 11000 | 800 | 10000 | 1500 | 7000 | 1000 | 5000 |
Main light luminous flux (lm) | 50 | 240 | 50 | 226 | 34 | 117 | 28 | 100 |
Rated capacity | 7000 mAh | 5200 mAh | 3500 mAh | 2600 mAh | ||||
Rated voltage | 3.7 V | |||||||
Main light LED working voltage | 3.0 V | |||||||
Main light life span | 100000 H | |||||||
Auxiliary light power | 0.4 W | |||||||
Auxiliary light life span | 40000 h | |||||||
Short circuit protection time | < 320 μs | |||||||
Life span of the battery (Recharges) | 1200 cycles (In reasonable working condition) | |||||||
Charging time | 5.5 h | 4.5 h | 4.5 h | 4 h | ||||
Dimensions | 84x69x50mm | |||||||
Weight | 169 g; 5.96 oz | 128 g; 4.52 oz | ||||||
Optional parts | Transparent/colored optical lens (click to view) | |||||||
Rack for bicycle (click to view) | ||||||||
Magnetic USB charger (click to view) |
