Click on the image to view the original image

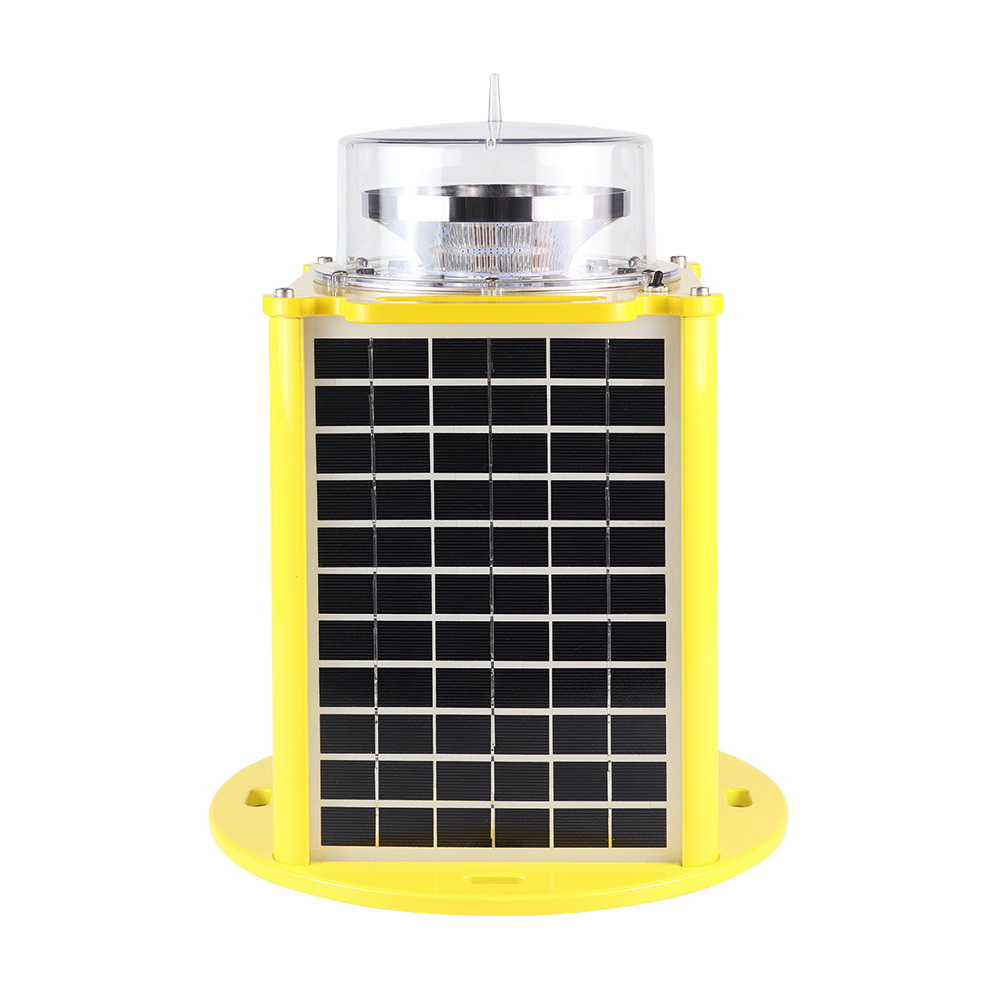

GS-LS/HT Range 11~20 NM Portable Solar powered marine navigation signal light
Model type:GS-LS/HT
Product Overviews
GS-LS/HT Range 11~20 NM Portable Solar powered marine navigation signal light adopts low-light but high efficient solar panels integrated design, cooperate with solar lead-acid battery as power supply. The battery adopts advance power management system, which can provide good protection when battery"s voltage and temperature too high or too low, so it can imporve the battery"s service life.
Control circuit adopts micro-power consumption single controlling chip, which can accurately control battery"s charge & discharge statue and reduce its power consumption.
Light source adopts high efficient LED chip, which has advantage of high light intensity, low power consuption, long service life and so on.
With portable deisgn, it is convenient for carrying and transportation, especially suitable for the occasions of the temporary channel.
Lampshade adopts glass material, which is corrosion resistance, anti-uv, anti-shock.
Product Details
Function & Features
- Continuous working time in rainy day can reach to more than 15days.(10 hours a day)
- Standardization of optical design, high photoelectric conversion efficiency.
- Photocell can switch ON/OFF the light in rainy days or at night automatically
- Adopts special customized LED chip, Higher tranfer efficiency and Longer service life
- Circuit applied advanced charging and discharging management system
- Good ability of Impact resistance, light fastness, anti-lighting, anti-UV, anti-snow, typhoon resistance, and function well on other severe weather.
- Lead acid battery service life is more than 3 years, User-replaceable, low-maintenance
- 256 light characteristics optional
- GPS sync flash optional
- 2~5 years warranty subject to our sales term

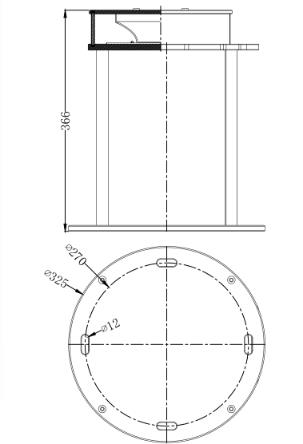

Dimension Drawing
Usage Notice
- Please read the instruction carefully and then use the device correctly
- Solar powered marine lantern must be installed in a sunny place to keep it working continuously
- Please install this light on the installation plane that perpendicular to light axis, installation plane should has mechanical strength
- Ensure to place the device under sunlight to recharge power 12 hours before the initial use
- Please turn off the device and put it under sunlight for 5 days to recharge power each 3 months if stored without use
Application
- Sea ways
- River ways
- Lakes
- Mariculture zone
- Sailing
- Buoys
- Block
- Bridge
Company Information
Shenzhen Green Source Light Equipment Co., Ltd is specialized in independently researching, developing and manufacturing the full range of Aviation Obstruction Light & Heliport and Helideck Light & Marine Lanterns and Equipment.
We provide full series solutions from Research to Production. We insist on offering high quality Aviation Obstruction Light & Heliport and Helideck Light & Marine Lanterns. All those products compliance to ICAO Annex 14, FAA standard, MH/T6012-2015 standard, etc. We produce High intensity/ Medium intensity / Low intensity LED & Solar Powered Aviation Obstruction Light. And Heliport or Helideck light includes aiming point light, Beacon, Insert & Elevated FATO Perimeter light, Taxiway Edge light, Guidence light, Lighted wind cone & Surface Floodlights. We design, produce and supply all these products and own some our patented inventions.
After 10 years development, we rank ahead in our industry in China.
Key products
Our Certifications
FAQ
Q1:Can I have a sample order for your products?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2: What about the lead time?
A:Sample needs 3~5days, mass production time needs 1~2 weeks. It is negotiable, if quantity more than 100.
Q3:Do you have any MOQ limit for Obstruction light order?
A:No limit, 1pc for sample checking is avaiable.
Q4:How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT worldwide Express. It usually takes 3~5days to arrive, door to door. You also could choose freight by air or by sea.
Q5:How to procced an order for Obstruction light?
A:Firstly let us know your requirement or appliction.
Secondly we will quote according to your requirement or suggested appropriate products.
Thirdly you confirm prices and check the samples.
Fourthly you confrim order and place deposit for formal order.
Then we will arrange the mass production for you.
Just feel free to contact us, we will effectively serve you and satisfy you.
Q6: is it OK to print my logo on Obstruction light product?
A: Yes, Please inform us formally before our production and confirm the design firstly based on our sample.
Q7:Do you offer guarantee for the products?
A:Yes. we offer 2~5years warranty on our products.
Q8:How to deal with the faulty?
A: Firstly, our products are produced under strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
