Shenzhen Green Source Light Equipment Co., Ltd.

Product Overviews

GS-LF/E Range 1~4 NM Solar powered marine Marker light Platform LED light adopts insert integrated design Solar panel whose photoelectric conversion efficiency can reach to 25%, cooperated with solar dedicated lithum iron phosphate battery as power supply.

Control circuit adopts micro-power consumption single controlling chip, which can accurately control battery"s charge & discharge statue and reduce its power consumption.

Light source adopts high efficient LED chip, which has advantage of high light intensity, low power consuption, long service life and so on.

Lampshade adopts PC material, which has the ability of anti-UV, anti-shock, and corrosion resistance.

The base adopts marine-grade dedicated plastic material, it can apply to seaways and chemical plant that have hostile and strong corrosive environment.

Our light is equiped with GPS timing synchronization module, infrared remote control. It has built-in 350 kinds of light characters code, RS232/485 port and light intensity is adjustable.

Product Details

Function & Features

• Continuous working time in rainy day can reach to more than 30days.(10 hours a day)
• Internal GPS synchronisation system available, as standard for synchronized flashing
• Come with RS232/485 port, light can link to PC port
• 350 IALA flash patterns
• Fitted with light intensity encoder, visuable range adjustable
• IR programmable
• Photocell can switch ON/OFF the light in rainy days or at night automatically
• Photoelectric conversion efficiency can reach to 25%
• IP68,  Waterproof integration body, it can work in soaking sea water.
• Adopts special customized LED chip, Higher tranfer efficiency and Longer service life
• Circuit applied advanced charging and discharging management system
• Good ability of Impact resistance, light fastness,  anti-lighting, anti-UV, anti-snow, typhoon resistance, and function well on other severe weather.
• Solar phosphoric acid iron battery service life is more than 3 years, User-replaceable, low-maintenance
• The base lifespan can reach 30 years, designed to withstand the tough marine environment
• Incorporated an enviroment-friendly spike-deterring unwelcome bird life
• No radio frequency, no electromagnetic interference
• 2~5 years warranty subject to our sales term

Dimension Drawing

Usage Notice

• Please read the instruction carefully and then use the device correctly
• Solar powered marine lantern must be installed in a sunny place to keep it working continuously
• Please install this light on the installation plane that perpendicular to light axis, installation plane should has mechanical strength
• Ensure to place the device under sunlight to recharge power 12 hours before the initial use
• Please turn off the device and put it under sunlight for 5 days to recharge power each 3 months if stored without use

Application

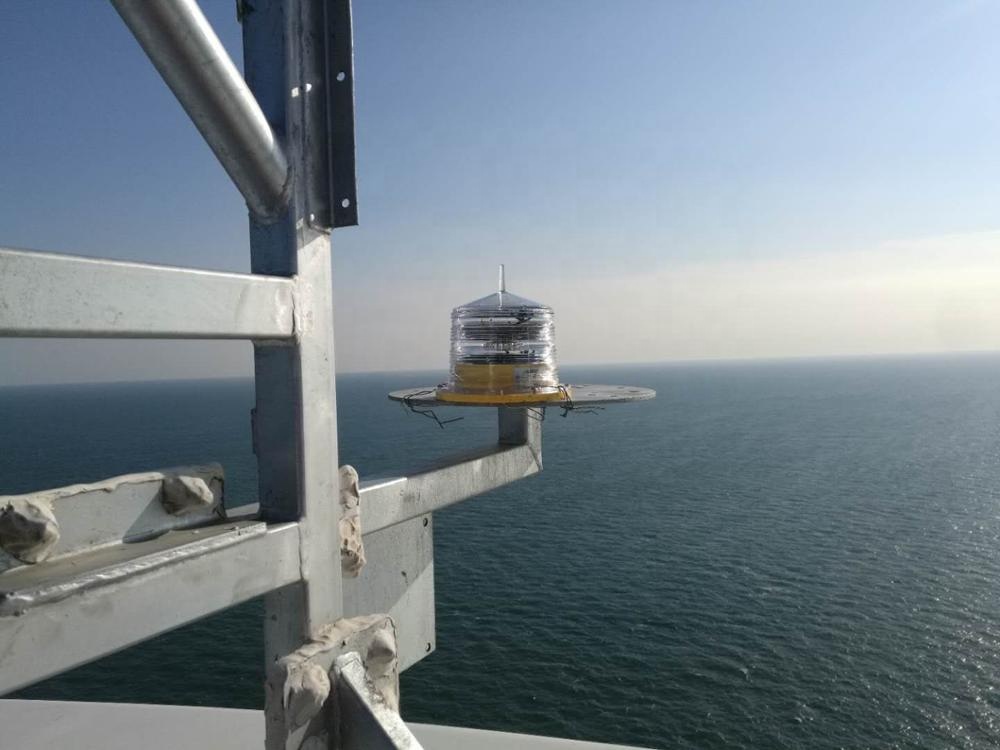

• Sea ways
• River ways
• Lakes
• Mariculture zone
• Block

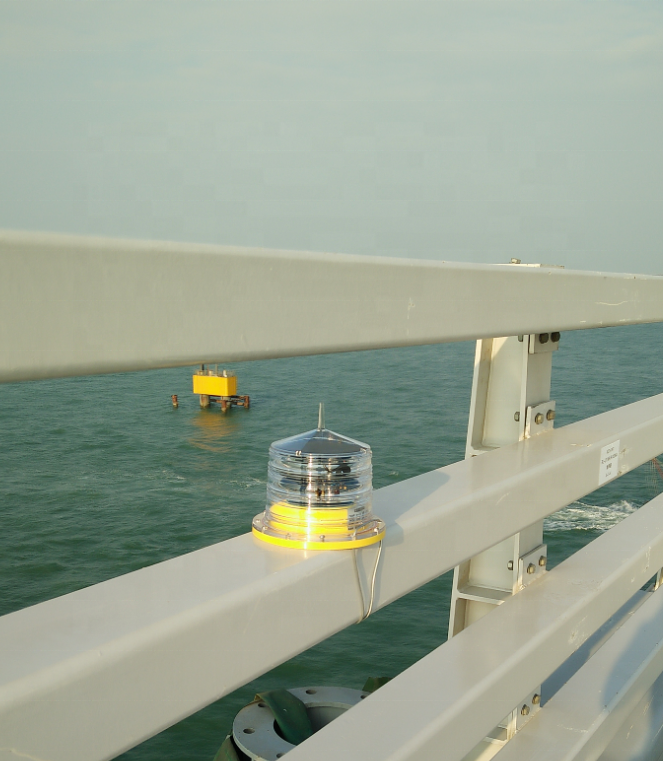

• Bridge

 Company Information

 Shenzhen Green Source Light Equipment Co., Ltd is specialized in independently researching, developing and manufacturing the full range of Aviation Obstruction Light & Heliport and Helideck Light & Marine Lanterns and Equipment.

We provide full series solutions from Research to Production. We insist on offering high quality Aviation Obstruction Light & Heliport and Helideck Light & Marine Lanterns. All those products compliance to ICAO Annex 14, FAA standard, MH/T6012-2015 standard, etc. We produce High intensity/ Medium intensity / Low intensity LED & Solar Powered Aviation Obstruction Light. And Heliport or Helideck light includes aiming point light, Beacon, Insert & Elevated FATO Perimeter light, Taxiway Edge light, Guidence light, Lighted wind cone & Surface Floodlights. We design, produce and supply all these products and own some our patented inventions.

After 10 years development, we rank ahead in our industry in China.

Key products

 Our Certifications

FAQ

Q1:Can I have a sample order for your products?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2: What about the lead time?

A:Sample needs 3~5days, mass production time needs 1~2 weeks. It is negotiable, if quantity more than 100.

Q3:Do you have any MOQ limit for Obstruction light order?

A:No limit, 1pc for sample checking is avaiable.

Q4:How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT worldwide Express. It usually takes 3~5days to arrive, door to door. You also could choose freight by air or by sea.

Q5:How to procced an order for Obstruction light?

A:Firstly let us know your requirement or appliction.

   Secondly we will quote according to your requirement or suggested appropriate products.

   Thirdly you confirm prices and check the samples.

   Fourthly you confrim order and place deposit for formal order.

   Then we will arrange the mass production for you.

Just feel free to contact us, we will effectively serve you and satisfy you.

Q6: is it OK to print my logo on Obstruction light product?

A: Yes, Please inform us formally before our production and confirm the design firstly based on our sample.

Q7:Do you offer guarantee for the products?

A:Yes. we offer 2~5years warranty on our products.

Q8:How to deal with the faulty?

A: Firstly, our products are produced under strict quality control system and the defective rate will be less than 0.2%.

    Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
