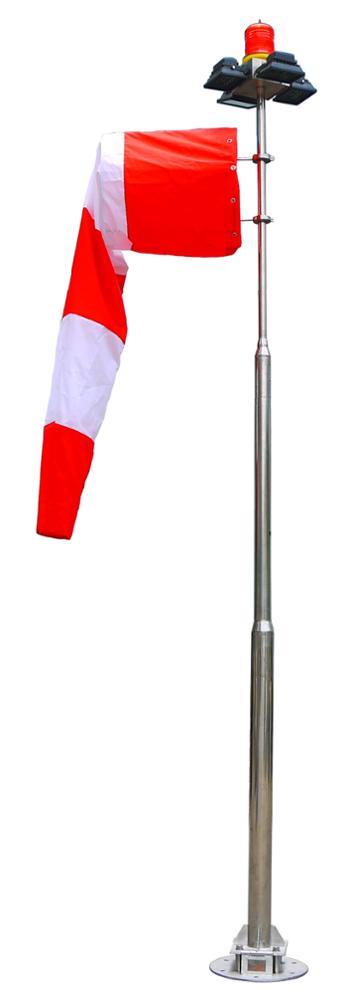

GS-HP/W FAA standard Heliport Wind cone with windsock and light
Model Type: GS-HP/W
Product Overviews
GS-HP/W FAA standard Heliport Wind cone with windsock and light adopts SUS304 stainless steel , the top with wind cone floodlight and low intensity obstruction light, total service life can be up to 3 years.
This product is used to provide visual surface wind direction and velocity information to pilots in helicopters over the final approach and take-off areas.
According to ICAO requirement, every helipad area must have at least one wind cone. Installation position must be not interfered by around object and airflow formed by helipad wind and make sure pilot can recognize wind cone at 200 meters clearly.
GS-HP/W lighting direction sign is a symbol of wind and wind direction, which can be used in the daytime and night.
Product standard is compliance to FAA, AC150/5345-27C, L806 and ICAO.
Product Details
Function & Features
- Wind cone adopts PVC rain-proof material that resist corrosion and high temperature.
- Wind cone"s illuminate adopts high power LED floodlight, which has advantage of long service life, saving power, high light intensity, that can reduce the maintaince cost.
- Entirely structure adopts SUS304 stainless steel, which is light weight and resist corrostion.
- Height scalability, easy to maintain.
- The top adopts a long service life low intensity aviation obstruction light, which makes this entire wind cone"s service life high level.
Usage Notice
- Don"t use out of standard voltage, or will destroy the device.
- Windsock installation must be in a horizontal position, applied spirit level to confirm.
- Ehe windsock used for outdoor, belong to the loss of accessories, do not regularly check and maintenance.
- Do not open it if the device is out of operation, not to be hurt by the internal high pressure.
- After installation, the personnel should check the screw spikes are tightened.
- Non-professional workers can not do the device maintenance, so as not to expand error or be hurt.
Application
- Heliport
- Gas station
- Chemistry factory
- Drilling platform
- Ships
Dimension Drawing
Company Information
Shenzhen Green Source Light Equipment Co., Ltd is specialized in independently researching, developing and manufacturing the full range of Aviation Obstruction Light & Heliport and Helideck Light & Marine Lanterns and Equipment.
We provide full series solutions from Research to Production. We insist on offering high quality Aviation Obstruction Light & Heliport and Helideck Light & Marine Lanterns. All those products compliance to ICAO Annex 14, FAA standard, MH/T6012-2015 standard, etc. We produce High intensity/ Medium intensity / Low intensity LED & Solar Powered Aviation Obstruction Light. And Heliport or Helideck light includes aiming point light, Beacon, Insert & Elevated FATO Perimeter light, Taxiway Edge light, Guidence light, Lighted wind cone & Surface Floodlights. We design, produce and supply all these products and own some our patented inventions.
After 10 years development, we rank ahead in our industry in China.
