Home > Products > GS-HP/LT2 Heliport Solar Powered Elevated approaching landing direction signal white light
GS-HP/LT2 Heliport Solar Powered Elevated approaching landing direction signal white light
Click on the image to view the original image
Product: views:7GS-HP/LT2 Heliport Solar Powered Elevated approaching landing direction signal white light
Branch: Green Source
Type: Aviation Obstruction Lights
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-16 15:43
  Negotiated
Product Details
Overview
Quick Details
Type:
Aviation Obstruction Lights
Input Voltage(V):
AC220V, AC120V, DC48V
Lamp Power(W):
20
Lamp Luminous Flux(lm):
100%
Lamp Luminous Efficiency(lm/w):
124
CRI (Ra):
80
Beam Angle(°):
360
IP Rating:
IP68
Certification:
CE, FCC, RoHS
Emitting Color:
white
Lamp Body Material:
PC
Base Type:
BA15d
Light Source:
LED
Place of Origin:
Guangdong, China
Brand Name:
Green Source
Working mode:
Steady Burning
Emitting color:
White
Light source service life:
not less than 20 years
Battery type:
Aviation standard Lead acid battery
Battery Service Life:
not less than 5 years, replaceable
Overall size:
229 x 196 x368mm
Ambient Temperature:
-550degree to 70degree
Net Weight:
7.8 Kg
Humidity:
0 to 95%
Altitude:
not higher than 4500m
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Selling Units: Single item
Single package size:25X25X40 cm
Single gross weight: 8 kg
Package Type: Standard export package
Port
Shenzhen
Lead Time:
Quantity(Pieces)1 - 12 - 2021 - 100 >100
Est. Time(days)71525To be negotiated

GS-HP/LT2 Heliport Solar Powered Elevated approaching

landing direction signal white light

Model Type: GS-HP/LT2



Product Overviews

Product Overviews

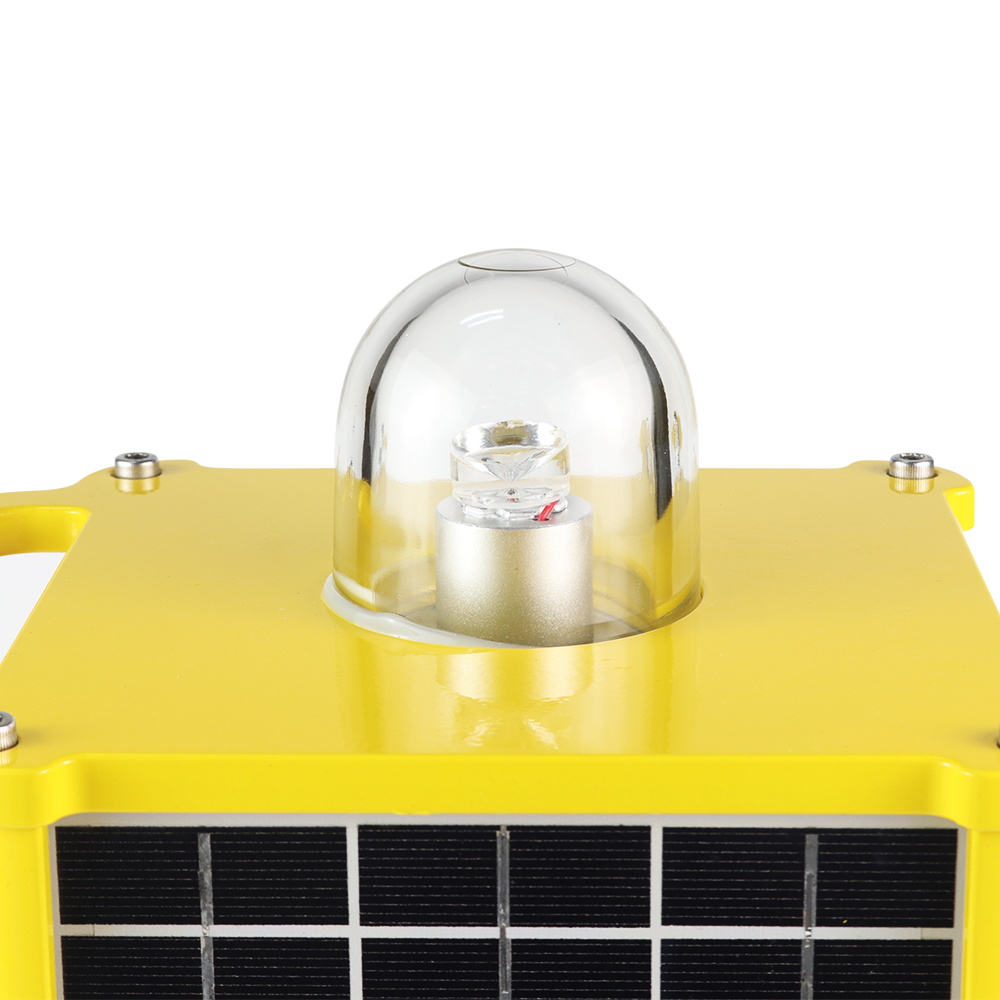

GS-HP/LT2 Heliport Solar Powered Elevated approaching landing direction signal white light shell is die-casting with high strength/intensity material, which features with super water proofing and aging resistance.

Light inner part adopts LED light source and combines with advanced optical lens design.

The emitting angle measured up to ICAO, FAA standards.

This product can signal the approaching way and landing direction, which send out omnidirectional white light at low visibility daytime and night.

Compliance to ICAO Annex 14, Volume 1, FAA AC 150/5345-46B, GB/t 7256-2005.

Product Details

Product Details

Function & Features

Function & Features

  • Integrated Structure design, easily to install and remove.
  • Come with easy-to-fall protection
  • Working stability, strong anti-interference ability and shock resistance.
  • Full sealed structure base, with superior waterproof performance.
  • Adopt imported high-power LED light source, which has the specific of high light brightness, and long service life.
  • Remote control function optional.
  • Patented optical structure design.

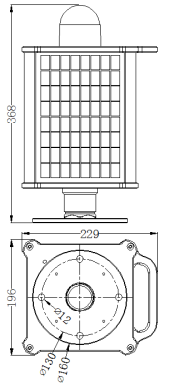

Dimension Drawing

Dimension Drawing



Usage Notice

Usage Notice

  • Don"t use any out of nominal voltage, or will destroy equipment.
  • Don"t open it if the device is out of operation, or will be hurt by the internal high pressure.
  • After finished the installation, the personel must check whether the device is in a good waterproof processing and whether the screw spikes are tightened.
  • Non-professional workers can not do the device maintenance, so as not to expand the error and be hurt.

Application

  • Type I, II, III airport heliport taxiway edge light, runway light.
  • Heliport approaching light
Company Information

 Company Information

Shenzhen Green Source Light Equipment Co., Ltd is specialized in independently researching, developing and manufacturing the full range of Aviation Obstruction Light & Heliport and Helideck Light & Marine Lanterns and Equipment.

We provide full series solutions from Research to Production. We insist on offering high quality Aviation Obstruction Light & Heliport and Helideck Light & Marine Lanterns. All those products compliance to ICAO Annex 14, FAA standard, MH/T6012-2015 standard, etc. We produce High intensity/ Medium intensity / Low intensity LED & Solar Powered Aviation Obstruction Light. And Heliport or Helideck light includes aiming point light, Beacon, Insert & Elevated FATO Perimeter light, Taxiway Edge light, Guidence light, Lighted wind cone & Surface Floodlights. We design, produce and supply all these products and own some our patented inventions.

After 10 years development, we rank ahead in our industry in China.



Featured Products

Our Certifications

FAQ

 FAQ

Q1:Can I have a sample order for your products?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2: What about the lead time?

A:Sample needs 3~5days, mass production time needs 1~2 weeks. It is negotiable, if quantity more than 100.

Q3:Do you have any MOQ limit for Obstruction light order?

A:No limit, 1pc for sample checking is avaiable.

Q4:How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT worldwide Express. It usually takes 3~5days to arrive, door to door. You also could choose freight by air or by sea.

Q5:How to procced an order for Obstruction light?

A:Firstly let us know your requirement or appliction.

   Secondly we will quote according to your requirement or suggested appropriate products.

   Thirdly you confirm prices and check the samples.

   Fourthly you confrim order and place deposit for formal order.

   Then we will arrange the mass production for you.

Just feel free to contact us, we will effectively serve you and satisfy you.

Q6: is it OK to print my logo on Obstruction light product?

A: Yes, Please inform us formally before our production and confirm the design firstly based on our sample.

Q7:Do you offer guarantee for the products?

A:Yes. we offer 2~5years warranty on our products.

Q8:How to deal with the faulty?

A: Firstly, our products are produced under strict quality control system and the defective rate will be less than 0.2%.

    Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
