Home > Products > GS-HP/D Heliport LED Directional arrow Green Marker light with Floodlight
GS-HP/D Heliport LED Directional arrow Green Marker light with Floodlight
Click on the image to view the original image
Product: views:6GS-HP/D Heliport LED Directional arrow Green Marker light with Floodlight
Branch: Green & Source
Type: Aviation Obstruction Lights
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-16 15:43
  Negotiated
Product Details
Overview
Quick Details
Type:
Aviation Obstruction Lights
Input Voltage(V):
AC85~260V
Lamp Power(W):
10
Lamp Luminous Flux(lm):
100
Lamp Luminous Efficiency(lm/w):
10
CRI (Ra):
225
Color Temperature(CCT):
Cool White
Beam Angle(°):
120
IP Rating:
IP68
Certification:
CE, FCC, RoHS
Emitting Color:
Green/Yellow and white
Lamp Body Material:
Aluminum Alloy
Base Type:
2G11
Light Source:
LED
Place of Origin:
Guangdong, China
Brand Name:
Green & Source
Supply Frequency:
50HZ~60HZ
Working Mode:
Steady burning
Luminous Flux:
≥1500Lm
Overall Size:
245mmX180mmX385mm
Installation size:
93mmX93mmX12mm
Ambient Temperature:
-20℃~60℃
Weight:
3.5kg
Humidity:
<95%
IP Protection:
IP 68
Connection Mode:
External Connection
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
each one in bubble pack then in carton, 4 sets in big carton
Port
Shenzhen
Picture Example:
package-img
Lead Time:
Quantity(Sets)1 - 56 - 2021 - 50 >50
Est. Time(days)81020To be negotiated

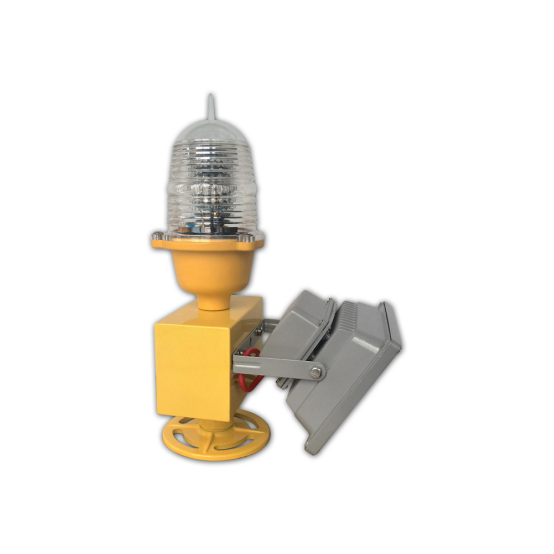

GS-HP/D Heliport LED Directional arrow Green Marker light with Floodlight

Model Type: GS-HP/D

Product Overviews

Product Overviews

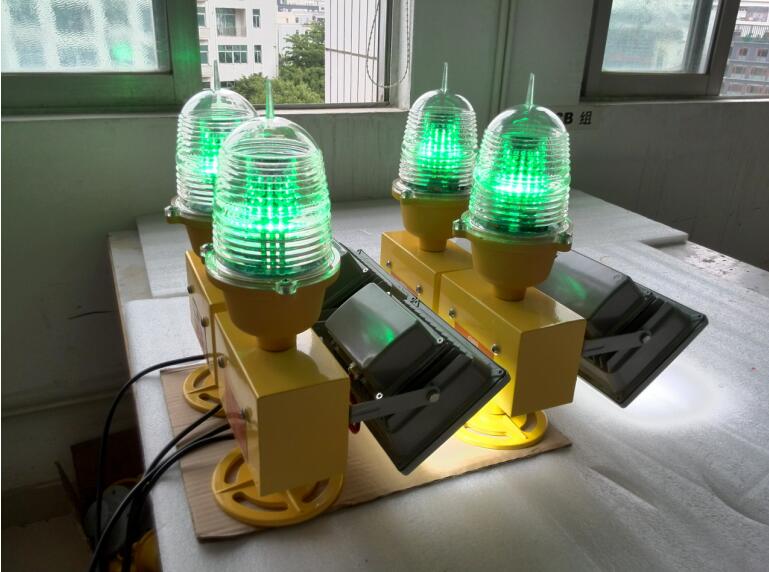

GS-HP/D Heliport LED Directional arrow Green Marker light with Floodlight has dual function. Perimeter light on top illuminates the directional arrow to emphasize the green ligths for an accurate approaching and is one of the string of green marker lights in the arrow. Floodlights in the middle is used for illumination.


Product Details

Product Details

1. Mode: GS-HP/D
2. Light intensity: ≥25cd( Perimeter Light on Top),≥1500Lm
3. Light source: LED
4. Service life of LED: 100, 000hours
5. Operating voltage: AC220V, 50/60 Hz
6. Signal mode: Steady-burning way
7. Emitting color: Green color or Yellow color (Perimeter Light on Top),White color(Flood Light on middle)
8. Power consumption: 10W
9. Overall size(mm): 245 by 180 by 385
10. Installation size(mm):93 by 93 by 12
11.Weight: 3.1kg
Function & Features

Function & Features

  • Full sealed structure base, with superior waterproof performance.
  • With work stability, strong anti-interference ability and shock resistance.
  • With the anti-surge protection device.
  • Professional custom LED chips, with high light brightness and long service life.
  • Adopts constant current as power supply, stable working, No RF interference.
  • Adopts the toughened glass smooth, provides corrosion resistance and UV protection.
Dimension Drawing

Dimension Drawing

Company Information

Company Information

Shenzhen Green Source Light Equipment Co., Ltd is specialized in independently researching, developing and manufacturing the full range of Aviation Obstruction Light & Heliport and Helideck Light & Marine Lanterns and Equipment.

We provide full series solutions from Research to Production. We insist on offering high quality Aviation Obstruction Light & Heliport and Helideck Light & Marine Lanterns. All those products compliance to ICAO Annex 14, FAA standard, MH/T6012-2015 standard, etc. We produce High intensity/ Medium intensity / Low intensity LED & Solar Powered Aviation Obstruction Light. And Heliport or Helideck light includes aiming point light, Beacon, Insert & Elevated FATO Perimeter light, Taxiway Edge light, Guidence light, Lighted wind cone & Surface Floodlights. We design, produce and supply all these products and own some our patented inventions.

After 10 years development, we rank ahead in our industry in China.



Certifications



Related Products

FAQ

 FAQ

Q1:Can I have a sample order for your products?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2: What about the lead time?

A:Sample needs 3~5days, mass production time needs 1~2 weeks. It is negotiable, if quantity more than 100.

Q3:Do you have any MOQ limit for Obstruction light order?

A:No limit, 1pc for sample checking is avaiable.

Q4:How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT worldwide Express. It usually takes 3~5days to arrive, door to door. You also could choose freight by air or by sea.

Q5:How to procced an order for Obstruction light?

A:Firstly let us know your requirement or appliction.

   Secondly we will quote according to your requirement or suggested appropriate products.

   Thirdly you confirm prices and check the samples.

   Fourthly you confrim order and place deposit for formal order.

   Then we will arrange the mass production for you.

Just feel free to contact us, we will effectively serve you and satisfy you.

Q6: is it OK to print my logo on Obstruction light product?

A: Yes, Please inform us formally before our production and confirm the design firstly based on our sample.

Q7:Do you offer guarantee for the products?

A:Yes. we offer 2~5years warranty on our products.

Q8:How to deal with the faulty?

A: Firstly, our products are produced under strict quality control system and the defective rate will be less than 0.2%.

    Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation
