- Type:
- Aviation Obstruction Lights
- Input Voltage(V):
- AC120V, DC12V,DC24V,DC48V
- Lamp Power(W):
- 3
- Lamp Luminous Flux(lm):
- 300
- Lamp Luminous Efficiency(lm/w):
- 100
- CRI (Ra):
- 80
- Color Temperature(CCT):
- Other
- Beam Angle(°):
- 360
- IP Rating:
- IP65
- Certification:
- CE
- Emitting Color:
- Red
- Lamp Body Material:
- Aluminum Alloy
- Base Type:
- 2G11
- Light Source:
- LED
- Place of Origin:
- Guangdong, China
- Brand Name:
- Green&Source
- FAA Classify:
- L-810
- Supply Frequency:
- 50HZ~60HZ
- Working Mode:
- Adjustable choice: steady-burning/flashing 20times/min
- Light Intensity:
- 32.5cd
- Vertical Divergence:
- 10°
- Light Source Service Life:
- ≥20 years
- Overall Size:
- 136mm*136mm*220mm
- Installation Size:
- 3/4inches or 1 inch
- Optical Ambient Brightness:
- 50/100Lux
- Ambient Temperature:
- -40℃~70℃
- Supply Ability:
- 5000 Piece/Pieces per Month
- Packaging Details
- 4pcs/carton
- Port
- Shenzhen
- Lead Time:
Quantity(Sets) 1 - 10 11 - 50 51 - 100 >100 Est. Time(days) 3 10 13 To be negotiated
Description

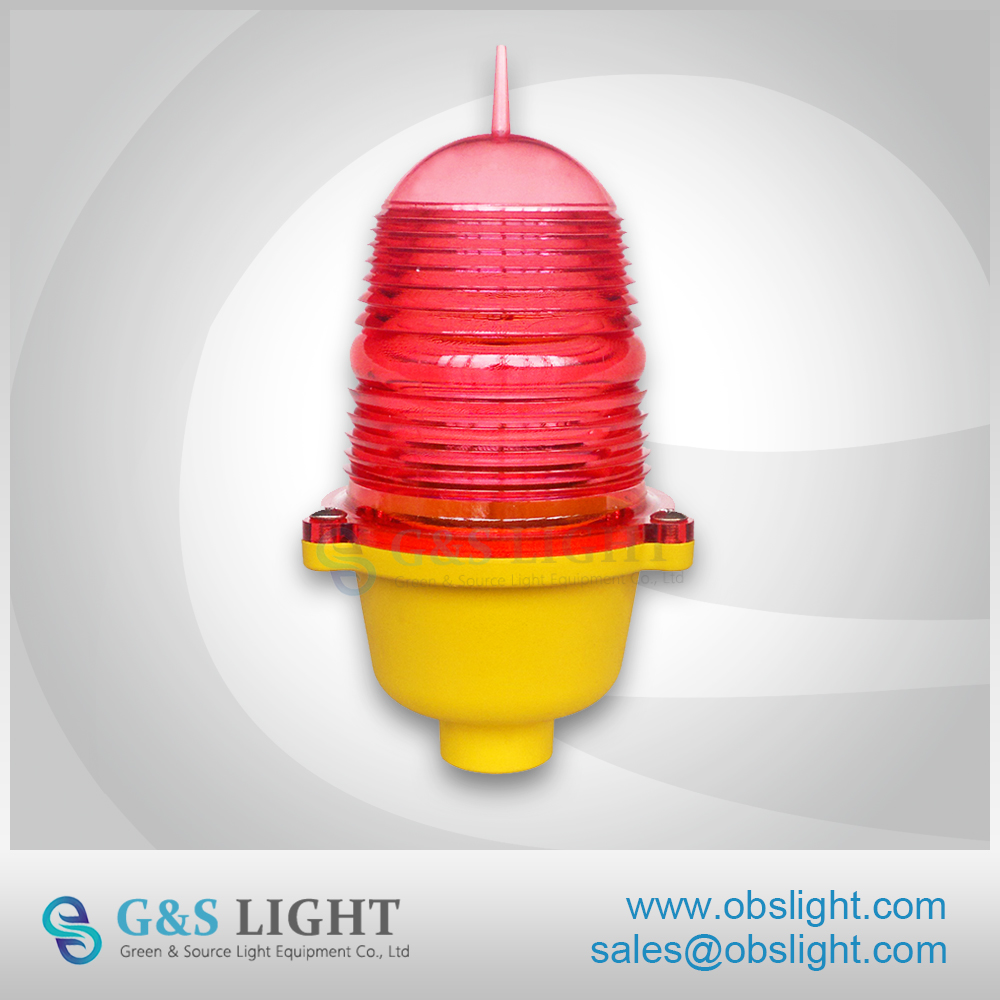

GS-LI/B FAA L810 LED single low intensity aviation tower obstruction light, Base with high intensity aviation aluminum casting,Fully sealed structure ;Light source adopt with independent research and development dedicated LED chip ,which have the specific of low power consumption and long long life ;Lampshade adopt with PC material ,it can resist corrosion ,anti-UV ,anti-shock ;management circuit with Strong lightning protection and With the surge protection device,which can adopt to extremity bad working environment .This lamp with photoswich ,it can turn on when light intensity less than 50LUX,and turn off when above 50Lux.
Specification
Name | Parameter |
FAA Classify | L-810 |
Type | GS-LI/B |
Power Supply | Optional voltage:AC220V, AC120V, DC12V,DC24V,DC48V |
Supply Frequency | 50HZ~60HZ |
Power Consumption | ≤3W |
Working Mode | Adjustable choice: steady-burning/flashing 20times/min |
Light Intensity | Type B ≥32.5cd Type A≥10cd |
Horizontal Out-put | 360° |
Vertical Divergence | 10° |
Light Source Service Life | ≥20 years |
Emitting Color | Red |
Overall Size | 136mm×136mm×220mm |
Installation Size | 3/4inches or 1 inch |
IP Protection | IP65 |
Optical Ambient Brightness | 50/100Lux |
Ambient Temperature | -40℃~70℃ |
Weight | 1kg |
Anti-wind Ability | 120m/s |
Function&Features
- Full sealed structure base, casting by high intensity aviation aluminum alloy.
- Special LED chips. With brightness, low energy consumption and long life.
- PC material cover, provides strong corrosion resistance, UV resistance, impact resistance.
- Its lightning protection ability and control circuit with anti surge protective device that can apply to poor working environment.
- With light-operated switch. When under the condition of less than 50Lux light, it canautomatically switch ON the light, and if it under the conditions of over 50Lux light, it can automatically switch OFF.
Attention / Usage Tips
- Check whether the supply voltage does comply with the rated voltage of device.
- Do not open it if the device is out of operation, in order not to be hurt by the internal high pressure.
- After finished the installation, the personnel must check whether the device is in a good waterproof processing and whether the screw spikes are tightened.
- Non-professional workers can not do the device maintenance, in order not to expand the error and be hurt.
Application
- Block
- Airport
- High Mast lamp
- Chimney
- Towers(Telecom, GSM, Electric)
- Bridge
- High-rise Buildings
