Home > Products > LED inset helipad Aiming Point Light / helipad lighting /heliport light

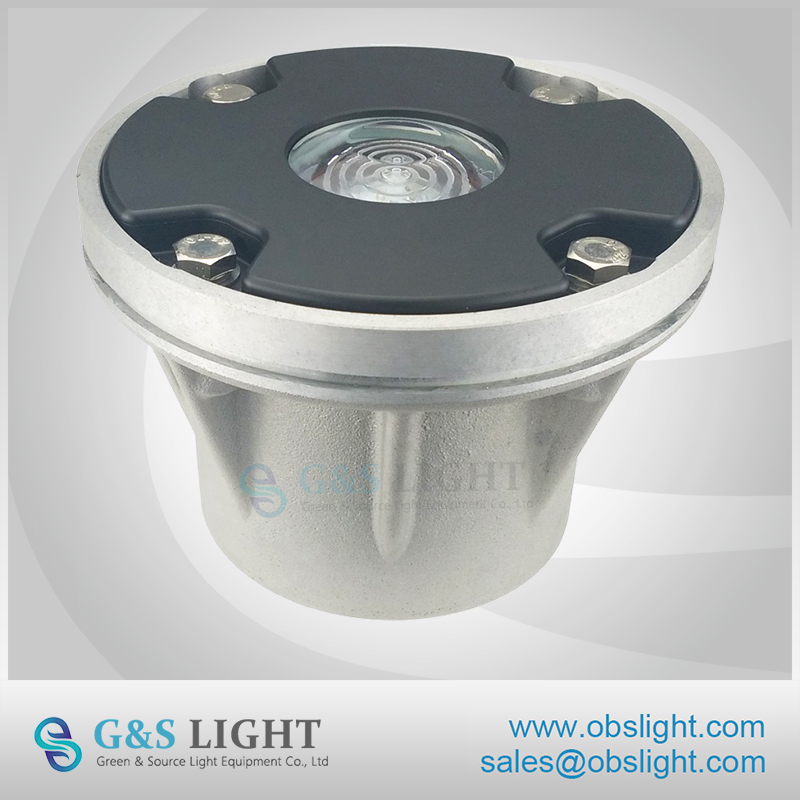

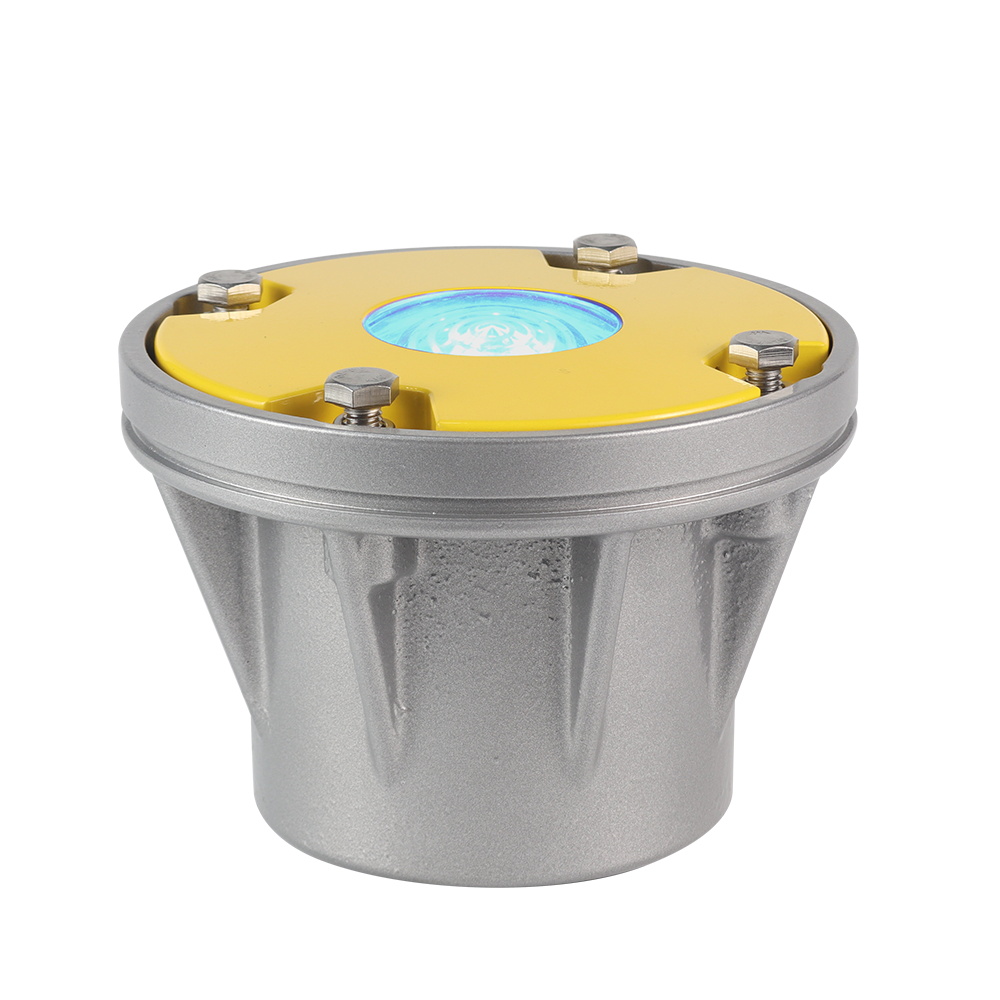

LED inset helipad Aiming Point Light / helipad lighting /heliport light
Click on the image to view the original image
Product： views：9LED inset helipad Aiming Point Light / helipad lighting /heliport light
Branch： GreenSource
Type： Aviation Obstruction Lights
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 15:43
  Negotiated
Product Details
Overview
Quick Details
Type:
Aviation Obstruction Lights
Input Voltage(V):
AC220V,AC120V, DC48V
Lamp Power(W):
8
Lamp Luminous Flux(lm):
25
Lamp Luminous Efficiency(lm/w):
233
CRI (Ra):
255
Color Temperature(CCT):
Cool White
Beam Angle(°):
180
IP Rating:
IP67
Certification:
CE, FCC, RoHS
Emitting Color:
White
Lamp Body Material:
PC
Base Type:
BA15d
Light Source:
LED
Place of Origin:
Guangdong, China
Brand Name:
GreenSource
Power Supply Frequency:
50HZ~60HZ
Working Mode:
Steady burning
Maximum Intensity:
≥100cd
Light Source Service Life:
≥20 years
Overall Size:
D194mm x138mm
Minimum Embedded Pit Size:
D194mm x146mm
Ambient Temperature:
-20℃~60℃
Net Weight:
5Kg
Humidity:
<95%
Altitude:
<4500M
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
4pcs/ctn
Port
shenzhen
Lead Time:
Quantity(Sets)1 - 1 >1
Est. Time(days)5To be negotiated
Product Description

Product Details

Adopts aluminum gravity casting, it"s good at water proof and heat dissipation. Its inner adopt LED light resource and cooperate with advanced optical glass design, emitting angle meet FAA standard. The product can send out white steady burning light signal at night or during low visibility weather. Usually, at least six lights can provide an accurate landing and lift -off position for helicopters.

Specification
Name
Parameter
Model
GS-HP/A
Standard
ICAO
Light Intensity
100cd
Working Mode
Steady Burning
Light Source
LED
Service Life Of LED
≥100,000 Hours
Operating Voltage
AC220V (Optional: DC48V, AC110V, AC120V)
Power Consumption
10W
Overall Size
￠194mm (D) ×140mm (H)
Installation Size
￠199mm×145mm
Material
Base: Die-casting Aluminum
Weight
4.5Kg
Emitting Color
White
Ambient Temperature
-20℃~60℃
Wind Load
80m/s
Protection Standard
IP67
Features
Adopt the superior thermal performance of aviation aluminum weight casting,provides excellent cooling environment for LED light source.

With work stability, strong anti-interference ability and shock resistance.

Full sealed structure base, with superior waterproof performance.

With storm surge protection device.

Shielding sealed power supply, with excellent waterproof and anti-jamming.

Adopt independent encapsulation of high-power LED light source,which has the specific of high light brightness, and long service life.
Structure Drawing
