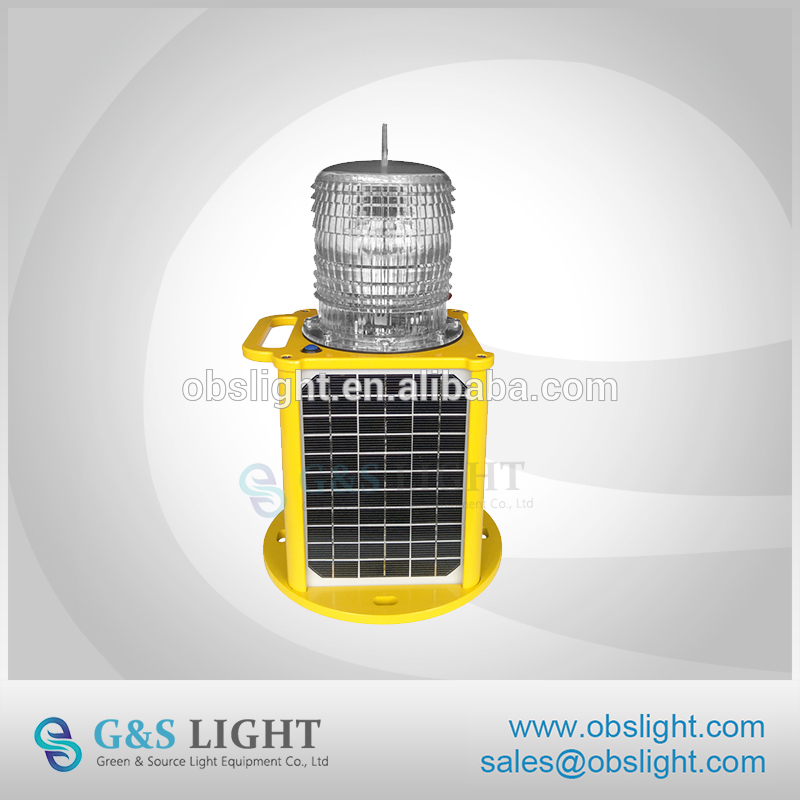

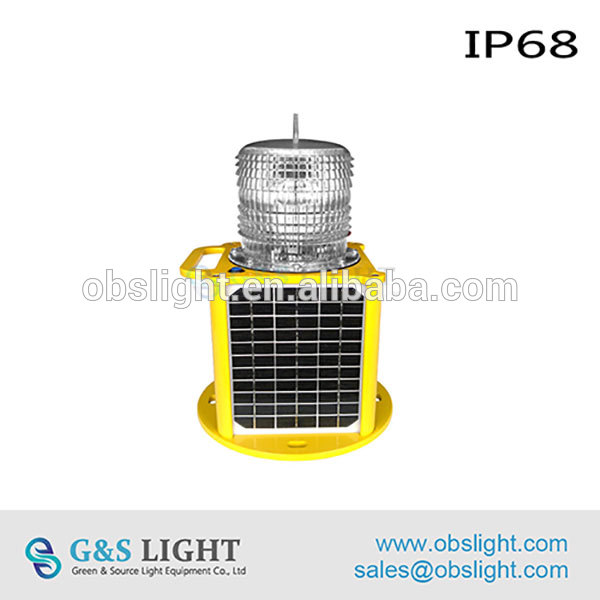

GPS sync solar marine lantern / solar beacon light / buoy lantern
Click on the image to view the original image
Product: views:7GPS sync solar marine lantern / solar beacon light / buoy lantern
Branch: Green Source
Type: Aviation Obstruction Lights
Size: 32X32X49 cm
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-16 15:43
  Negotiated
Product Details
Overview
Quick Details
Type:
Aviation Obstruction Lights
Input Voltage(V):
12V
Lamp Power(W):
15
Lamp Luminous Flux(lm):
1000
Lamp Luminous Efficiency(lm/w):
1000
CRI (Ra):
100
Color Temperature(CCT):
Warm White
Beam Angle(°):
360
IP Rating:
IP68
Certification:
CE
Emitting Color:
Blue
Lamp Body Material:
Aluminum Alloy
Base Type:
AR111
Light Source:
LED
Place of Origin:
Guangdong, China
Brand Name:
Green Source
Power Supply:
Mono-crystalline silicon solar panel
Battery Capacity:
12V12AH
Visible Range:
1-6miles
Ambient Temperature:
7.1kg
Continuous Light-emitting Ttime:
>15days (10 hours a day)
Light Source Service Life:
>100000 hours
Optional Emitting Color:
white red,amberyelow,green,blue,white red
Horizontal Out-put:
360°
Overall Size:
260mm x440mm
Installation Size:
220 x 220x M10

Packaging & Delivery

Selling Units:
Single item
Single package size:
32X32X49 cm
Single gross weight:
10.0 kg
Package Type:
1set/ctn
Lead Time:
Quantity(Set)1 - 12 - 2021 - 50>50
Est. Time(days)71520To be negotiated
Product Description

Product Details

GPS sync solar navigation lantern / solar beacon light /buoy lantern Using advanced structure design, adopts 4 groups of solar panels which can angle adjustable and high efficiently, co-operate with solar dedicated battery as power supply.  Advanced power management system will be used to charge the power in a comprehensive protection in order to save the service life ofbattery when it is under the condition of short-voltage or over-voltage or its temperature is too high or too low.

The control circuit adopts the micro power control chip, which effectively reduces the static power consumption of the circuit.
Its shell is die casting with aviation aluminum, this material has the specific of light weight and corrosion resistance, which can reduce the weight of light equipment, it is very convenient for installation and transportation.
Lampshade adopt with PC material, which can resist corrosion, anti-UV, anti-shock and so on.

Specification
LIGHTING
Visual Range
6-10 NM
Compliant With
IALA
Emitting Color
Red, Amber Yellow, Green, Blue, White
Operation Mode
Flashing, Steady-Burning
Vertical Divergence
>7°
Horizontal Out-put
360°
Light Source
LED
Light Lifespan
>100,000 Hours
POWER SUPPLY
Solar Panel
6W x 4pcs, 16.5V
Battery
12V12AH, Sealed Lead Acid Battery
Power Consumption
≤6W
Solar Panel Lifespan
>20 Years
STRUCTURE
Lens
Polycarbonate, UV Stabilize, Corrosion Resistance
Body
Aircraft Aluminum, Die-casting
Temperature Range
-40℃~70℃
Wind Load
>80m/s
Overall Size(mm)
¢276mm×480mm
Installation Size(mm)
Pitch circle 220 mm distributed 4M12 holes
Water-proof
IP68
Weight
7.1kg
Features
1.  Continuous working time in rainy day can reach more than 15 days. (10 hours a day)
2.  Photocell can switch ON/OFF the light in rainy days or at night automatically.
3.  Standardization of optical design, high photoelectric conversion efficiency.
4.  Special LED chips for aviation obstruction lights, conversion efficiency is much higher than other general LED
5.  Provide ability of lightning protection, light fastness, resist snow and rain.
6.  Base on LED technology, its color meet the ALA Recommendations E-200-1 requirement.
7.  Bird spike against bird drop.
8.  No radio frequency (RF), no electromagnetic interference.
9.  Optional GPS, remote control function.
Options

GPS synchronous.

256 user adjustable IALA flash characters.

Remote controller.

Emitting color (optional): red, white, green, yellow.



Applications

Sea buoy

River way

Shore beacon

Fixed light pile

Lighthouse

Oilfield

Derrick
