Home > Products > LED Solar Powered Marine Lanterns / 5-10 NM Solar Marine Light / buoy light for Offshore Oil Platform

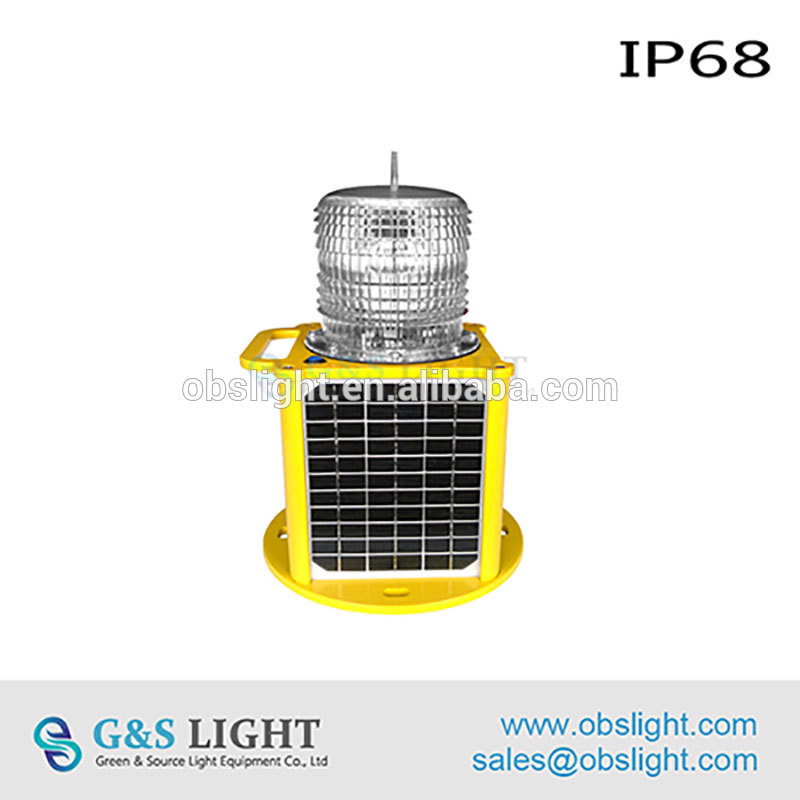

LED Solar Powered Marine Lanterns / 5-10 NM Solar Marine Light / buoy light for Offshore Oil Platform
Click on the image to view the original image
Product： views：7LED Solar Powered Marine Lanterns / 5-10 NM Solar Marine Light / buoy light for Offshore Oil Platform
Branch： Green Source
Type： Lanterns
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 15:43
  Negotiated
Product Details
Overview
Quick Details
Lighting Period (h):
>12, 10
Color Temperature(CCT):
COOL WHITE
IP Rating:
IP68
Input Voltage(V):
12V
Lamp Luminous Efficiency(lm/w):
1200
Lamp Luminous Flux(lm):
120
Lamp Power(W):
6
CRI (Ra):
222
Place of Origin:
Guangdong, China
Power Source:
Rechargeable Battery
Battery Type:
Lithium Ion
Brand Name:
Green Source
Certification:
ce, FCC, RoHS
Usage:
Emergency
Light Source:
LED
Type:
Lanterns
Power Supply:
Mono-crystalline silicon solar panel
Battery Capacity:
12V9AH
Visible Range:
1-6miles
Ambient Temperature:
7.1kg
Continuous Light-emitting Ttime:
>15days (10 hours a day)
Light Source Service Life:
>100000 hours
Optional Emitting Color:
white red,amberyelow,green,blue,white red
Horizontal Out-put:
360°
Supply Ability
Supply Ability:
200 Set/Sets per Month
Packaging & Delivery
Packaging Details
as order
Port
shenzhen
Lead Time:
Quantity(Sets)1 - 1011 - 3031 - 50 >50
Est. Time(days)101520To be negotiated
Product Description

Product Details

LED Solar Powered Marine Lanterns / 5-10 NM Solar Marine Light / buoy light for Offshore Oil Platform Using advanced structure design, adopts 4 groups of solar panels which can angle adjustable and high efficiently, co-operate with solar dedicated battery as power supply.Advanced power management system will be used to charge the power in a comprehensive protection in order to save the service life of battery when it is under the condition of short-voltage or over-voltage or its temperature is too high or too low.

The control circuit adopts the micro power control chip, which effectively reduces the static power consumption of the circuit.
Its shell is die casting with aviation aluminum, this material has the specific of light weight and corrosion resistance, which can reduce the weight of light equipment, it is very convenient for installation and transportation.
Lampshade adopt with PC material, which can resist corrosion, anti-UV, anti-shock and so on.

Specification
LIGHTING
Visual Range
1～6 NM
Compliant With
IALA
Emitting Color
Red, Amber Yellow, Green, Blue, White
Operation Mode
Flashing, Steady-Burning
Vertical Divergence
＞7°
Horizontal Out-put
360°
Light Source
LED
Light Lifespan
>100,000 Hours
POWER SUPPLY
Solar Panel
6W x 4pcs, 16.5V
Battery
12V12AH, Sealed Lead Acid Battery
Power Consumption
≤6W
Solar Panel Lifespan
＞20 Years
STRUCTURE
Lens
Polycarbonate, UV Stabilize, Corrosion Resistance
Body
Aircraft Aluminum, Die-casting
Temperature Range
-40℃～70℃
Wind Load
＞80m/s
Overall Size(mm)
￠276mm×480mm
Installation Size(mm)
Pitch circle 220 mm distributed 4M12 holes
Water-proof
IP68
Weight
7.1kg
Features
1.Continuous working time in rainy day can reach more than 15 days. (10 hours a day)
2.Photocell can switch ON/OFF the light in rainy days or at night automatically.
3.Standardization of optical design, high photoelectric conversion efficiency.
4.Special LED chips for aviation obstruction lights, conversion efficiency is much higher than other general LED.
5.Provide ability of lightning protection, light fastness, resist snow and rain.
6.Base on LED technology, its color meet the ALA Recommendations E-200-1 requirement.
7.Bird spike against bird drop.
8.No radio frequency (RF), no electromagnetic interference.
9.Optional GPS, remote control function.
Options

GPS synchronous.

256 user adjustable IALA flash characters.

Remote controller.

Emitting color (optional): red, white, green, yellow.

Applications

Sea buoy

River way

Shore beacon

Fixed light pile

Lighthouse

Oilfield

Derrick

Related Products
FAQ

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application.
    Secondly We quote according to your requirements or our suggestions.
    Thirdly customer confirms the samples and places deposit for formal order.
    Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 2-5 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
