Home > Products > LED Helipad Approach Light/helipad Landing direction light / Heliport light- steady burning

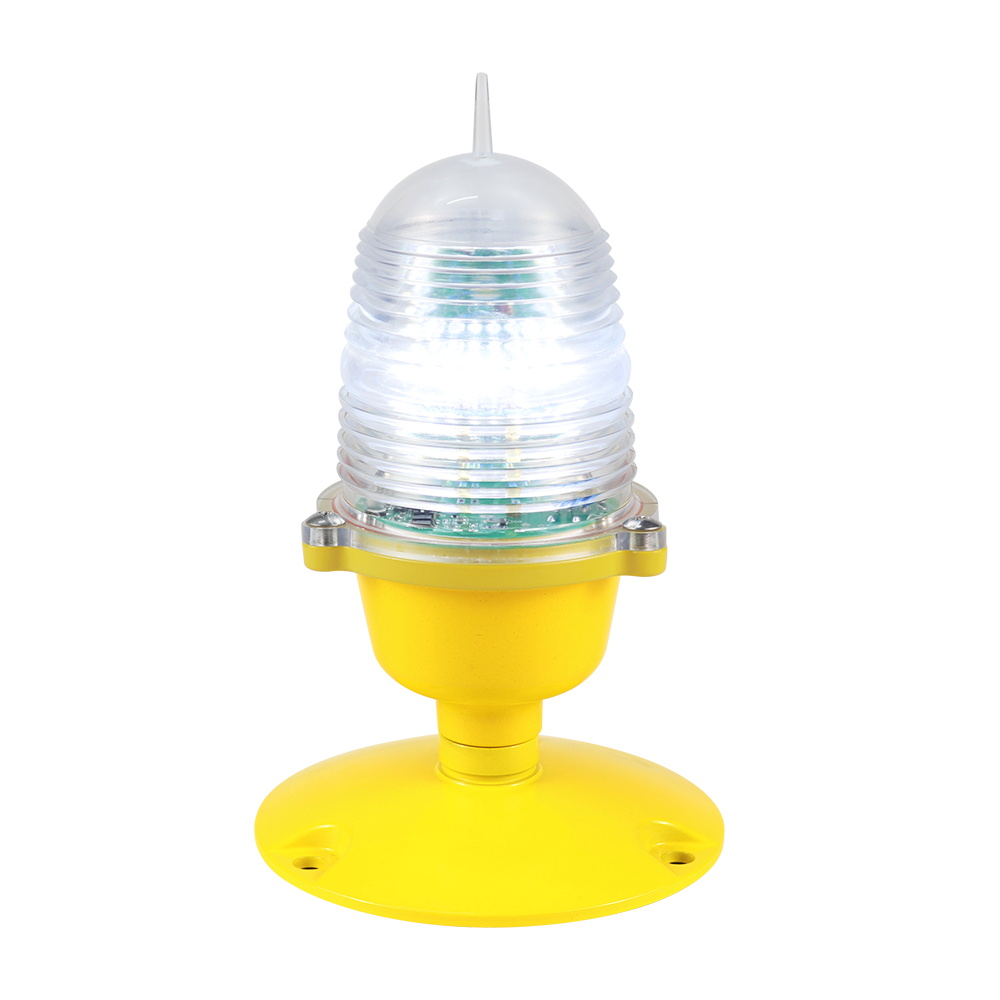

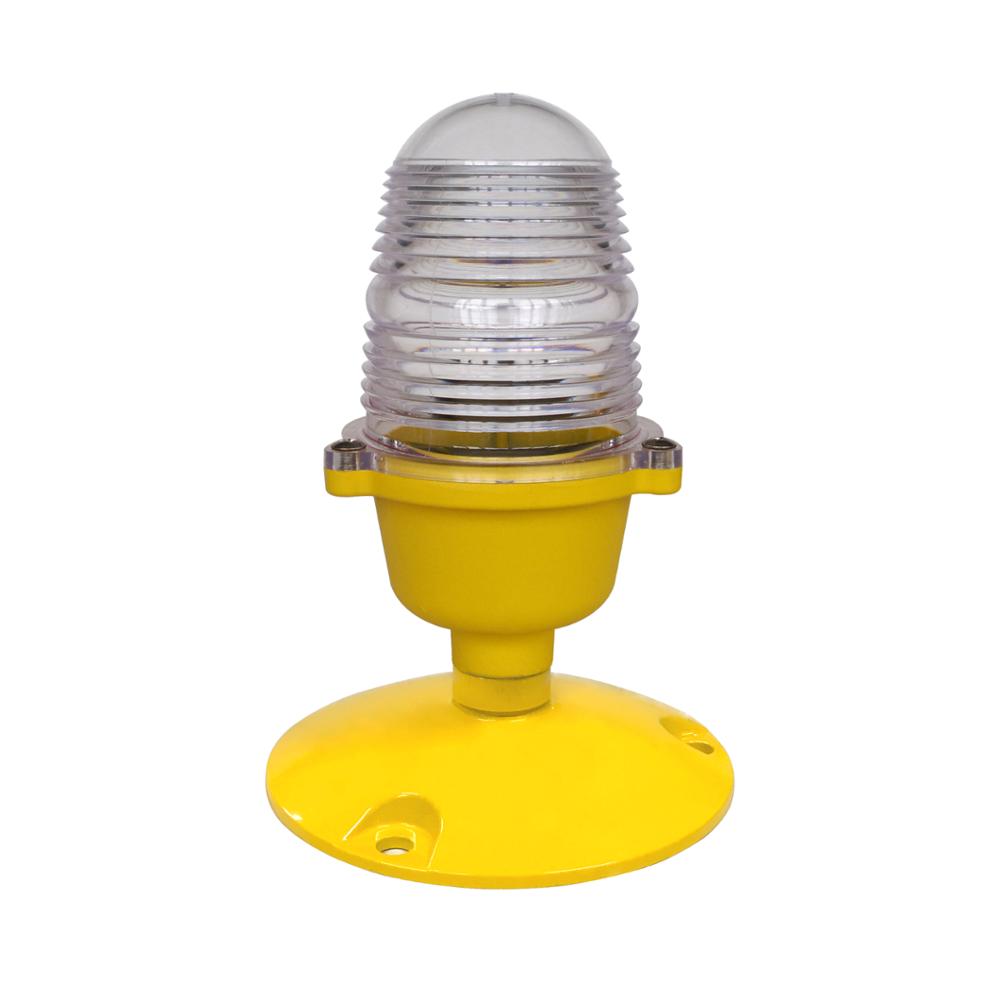

LED Helipad Approach Light/helipad Landing direction light / Heliport light- steady burning
Click on the image to view the original image
Product: views:10LED Helipad Approach Light/helipad Landing direction light / Heliport light- steady burning
Branch: Green Source
Type: Aviation Obstruction Lights
Size: 17X17X32.5 cm
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-16 15:43
  Negotiated
Product Details
Overview
Quick Details
Type:
Aviation Obstruction Lights
Input Voltage(V):
AC220V
Lamp Power(W):
20
Lamp Luminous Flux(lm):
100%
Lamp Luminous Efficiency(lm/w):
124
CRI (Ra):
222
Color Temperature(CCT):
Pure White
Beam Angle(°):
360
IP Rating:
IP65
Certification:
CE, FCC, RoHS
Emitting Color:
White
Lamp Body Material:
PC
Base Type:
2G11
Light Source:
LED
Place of Origin:
Guangdong, China
Brand Name:
Green Source
Working Mode:
Steady-burning
Intensity:
≥300cd
Light Source Service Life:
≥10years
Overall Size:
D165mm x241mm
Installation Size:
93mm xM10
Ambient Temperature:
-20℃~60℃
Weight:
1.8KG
Humidity:
<95%
Altitude:
<4500M
Supply Frequency:
50HZ~60HZ

Packaging & Delivery

Selling Units:
Single item
Single package size:
17X17X32.5 cm
Single gross weight:
1.62 kg
Picture Example:
package-img
Lead Time:
Quantity(Set)1 - 12 - 2021 - 50>50
Est. Time(days)52030To be negotiated
Product Description

Product Details

Adopts pressure casting aviation aluminum, this product provide the good characteristic of light weight and corrosion resistance. Light source adopts dedicated LED chip and fully sealed, which has the specific of high light brightness, low power consumption, long service life. Lampshade adopts PC material that can resist corrosion, anti-UV, anti-shock.

Control circuit provide strong ability of anti-shock and with anti-surge device, it can adapts bad working environment.
Specification
Name
Parameter
Model
GS-HP/L
Standard
ICAO
Light Intensity
≥300cd
Working Mode
Steady-Burning
Light Source
LED
Service Life Of LED
≥100,000 Hours
Operating Voltage
AC220V (Optional: AC110V, AC120V)
Power Consumption
≤5W
Overall Size
 165mm×165mm×241mm
Installation Size
¢145mm×M10
Material
Housing: PC + Base: Die-casting Aluminum
Weight
1.8KG
Emitting Color
White
Ambient Temperature
-20℃~60℃
Wind Load
80m/s
Protection Standard
IP65
Features
With work stability, strong anti-interference ability and shock resistance.

Full sealed structure base, with superior waterproof performance.

With the anti-surge protection device.

Special LED chips, with high light brightness, low power consumption and long service life.

Transformer isolation step-down, all electrical work in low voltage circuit can save the service life of light source.

Easy to fold design, can reduce the secondary damage to helicopters effectively.

Arc adjustable design in chassis mounting holes, easy to install.

PC material cover, provides corrosion resistance and UV protection.
Applications
Related Products
FAQ

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application.
    Secondly We quote according to your requirements or our suggestions.
    Thirdly customer confirms the samples and places deposit for formal order.
    Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 2-5 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.

Structure Drawing
