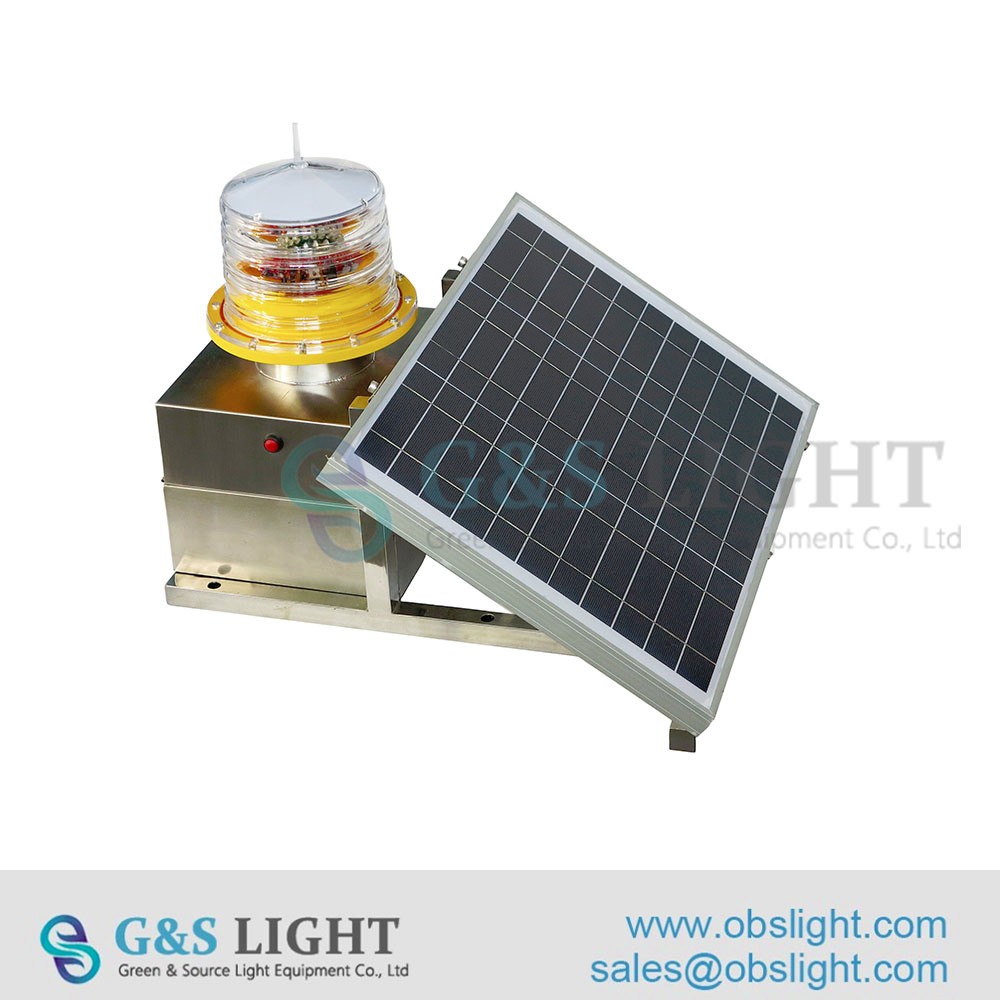

Medium Intensity solar aviation beacon light / solar tower warning light
Click on the image to view the original image
Product： views：7Medium Intensity solar aviation beacon light / solar tower warning light
Branch： Green Source
Type： Aviation Obstruction Lights
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 15:43
  Negotiated
Product Details
Overview
Quick Details
Type:
Aviation Obstruction Lights
Input Voltage(V):
DC12V
Lamp Power(W):
20
Lamp Luminous Flux(lm):
2000
Lamp Luminous Efficiency(lm/w):
100
CRI (Ra):
80
Color Temperature(CCT):
Cool White
Beam Angle(°):
360
IP Rating:
IP65
Certification:
CE, FCC, RoHS
Emitting Color:
White
Lamp Body Material:
Stainless Steel
Base Type:
2G11
Light Source:
LED
Place of Origin:
Guangdong, China
Brand Name:
Green Source
Standard:
ICAO (Aerodromes Annex 14) Medium-intensity Type A,FAA L-865
Light intensity:
2,000cd(Night) ,20,000cd(Daytime)
Working mode:
40 to 60times/minute(Daytime).
Light source:
LED,100,000hours service life
Autonomy(without sunlight):
at least 7 days(Option 15days)
. Material:
Housing: PC-Base: SUS304 stainless steel
Power Consumption:
40W
Overall Size(mm)::
1390 by 1350 by 615
Installation Size(mm):
580 by 580 by M12
Weight::
42Kg
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1pcs/carton
Port
Shenzhen
Lead Time:
Quantity(Sets)1 - 1011 - 2021 - 50 >50
Est. Time(days)51015To be negotiated
Product Description

Product Details

Adopts low-light but high efficient solar panels integrated design, cooperate with solar dedicated lithium iron phosphate battery as power supply. The battery adopts advance power management system, which can provide good protection when battery "s voltage and temperature too high or too low, so it can improve the battery"s service life efficiently.

Control circuit adopts micro-power consumption, which reduce controlling circuit "s power consumption. Light source adopts high efficient LED chip, which has specific of high light intensity, low power consumption, long service life and so on.
Product"s shell adopts SUS304 stainless steel material that has specific of light weight and corrosion insistence. It"s very convenient for installation and transportation.

Lampshade adopts glass material which provides better chemical characteristic. It won"t turn yellow and be chap in any bad environment.

Specification
Lighting
Effective Intensity
2,000cd(night),Daytime:20000cd
Compliant with
FAA L865, ICAO TYPE A
Emitting Color
White
Operation Mode
Flash Pattern / Steady burning
Vertical Divergence
>3°
Horizontal Out-put
360°
Light source
LED
Power
Solar pannel
100W,16.5V
Battery
12.8V100AH, lithium iron phosphate battery
Power consumption
<40W
Structure
Lens
Polycarbonate Glass, UV Stabilize, Corrosion Resistance
Body
SUS304 stainless steel
Temperature Range
-40℃~70℃
Wind Load
>80m/s
Overall size(mm)
1190mm×950mm×570mm
Installation size(mm)
400mm×400mm×M8
Water-proof
IP65
Weight
39KG
Applications
Related Products
FAQ

Q1. Can I have a sample order for Obstruction light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.

Q3. Do you have any MOQ limit for Obstruction light order?

A: Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for Obstruction light?

A: Firstly let us know your requirements or application.
    Secondly We quote according to your requirements or our suggestions.
    Thirdly customer confirms the samples and places deposit for formal order.
    Fourthly We arrange the production.

Q6. Is it OK to print my logo on Obstruction light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 2-5 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
