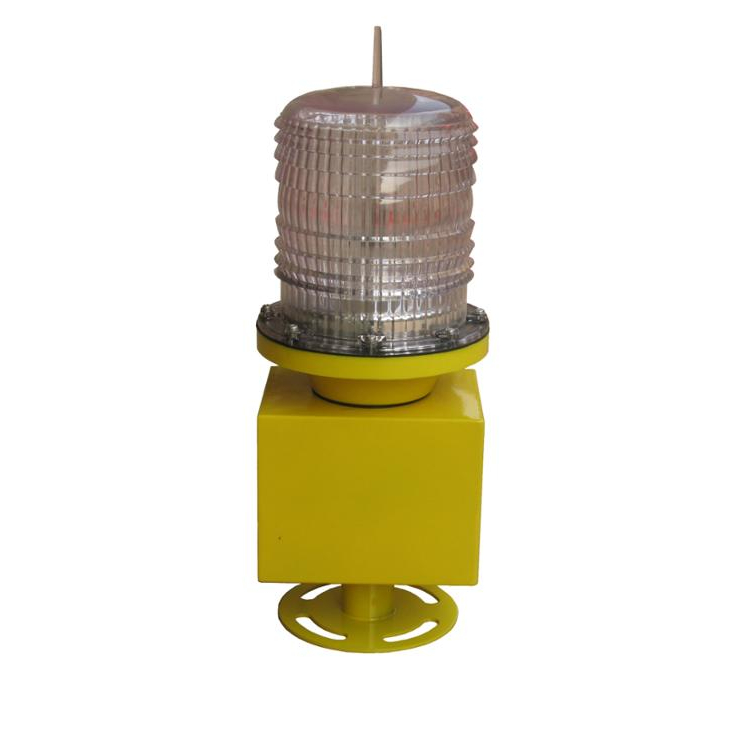

Helicopter Landing Direction Light / heliport approach light / Helideck Light
Click on the image to view the original image
Product: views:7Helicopter Landing Direction Light / heliport approach light / Helideck Light
Branch: Green Source
Type: Aviation Obstruction Lights
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-16 15:43
  Negotiated
Product Details
Overview
Quick Details
Type:
Aviation Obstruction Lights
Input Voltage(V):
AC220V
Lamp Power(W):
20
Lamp Luminous Flux(lm):
100%
Lamp Luminous Efficiency(lm/w):
124
CRI (Ra):
222
Color Temperature(CCT):
Pure White
Beam Angle(°):
360
IP Rating:
IP65
Certification:
CE, FCC, RoHS
Emitting Color:
White
Lamp Body Material:
PC
Base Type:
2G11
Light Source:
LED
Place of Origin:
Guangdong, China
Brand Name:
Green Source
Working Mode:
Steady-burning
Intensity:
≥3500cd
Light Source Service Life:
≥10years
Overall Size:
D220mm x312mm
Installation Size:
100mm xM10
Ambient Temperature:
-20℃~60℃
Weight:
3.5KG
Humidity:
<95%
Altitude:
<4500M
Supply Frequency:
50HZ~60HZ
Supply Ability
Supply Ability:
2000 Set/Sets per Month
Packaging & Delivery
Packaging Details
as order
Port
Shenzhen
Product Description

Product Details

Adopts SUS304 stainless steel material, the product has the advantage of light weight and corrosion resistance. This product ‘s light resource is optional, LED and Xenon lamp, lampshade adopts PC material, which can corrosion resistance, anti-UV, anti-shock; controlling circuit has strong ability of anti-shock and with anti-surge protection device, which can adapt to extremely bad working environment.

Specification
Name
Parameter
Model
GS-HP/LS
Power Supply
AC220V
Power Consumption
≤20W
Supply Frequency
50HZ~60HZ
Working Mode
Flashing
Light Intensity
≥3500cd
Light Source Service Life
≥10years
Emitting Color
White
Overall Size
200mm×200mm×410mm
Installation Size
¢100mm×M10
IP Protection
IP65
Ambient Temperature
-20℃~60℃
Weight
2.4KG
Humidity
<95%
Altitude
<4500M
Wind Load
80m/s
Features

Standardization of optical design, high photoelectric conversion efficiency.

Provide the function of flashing orderly.

With work stability, strong anti-interference ability and shock resistance.

Full sealed structure, excellent water proof characteristic.

With the anti-surge protection device.

The shell adopts SUS304 stainless steel material, which has the advantage of light weight and corrosion resistance.

Easy to fold design, can reduce the secondary damage to helicopters effectively.

Arc adjustable design in chassis mounting holes, easy to install.

PC material cover, provides corrosion resistance and UV protection.

Applications
Related Products
FAQ

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application.
    Secondly We quote according to your requirements or our suggestions.
    Thirdly customer confirms the samples and places deposit for formal order.
    Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 2-5 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
