Home > Products > 5-10NM Solar Marine lanterns / Buoy Lights /navigation aids

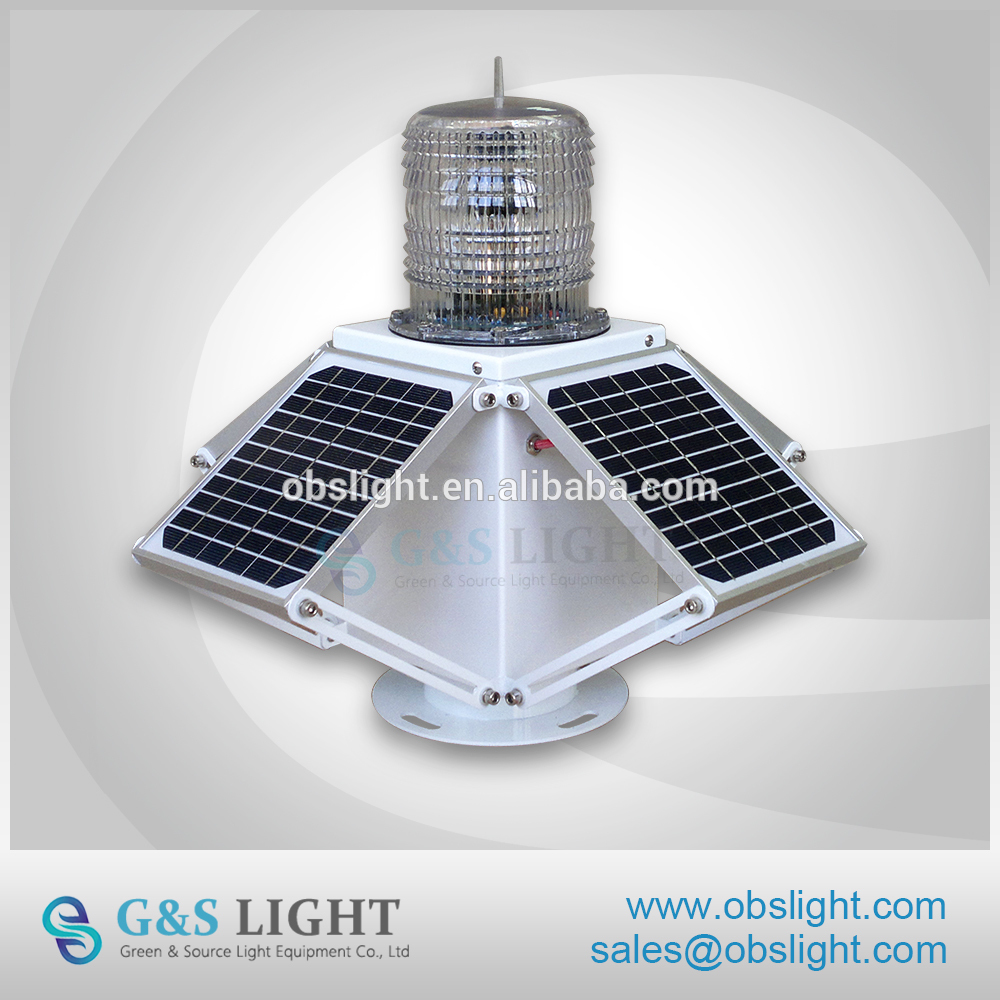

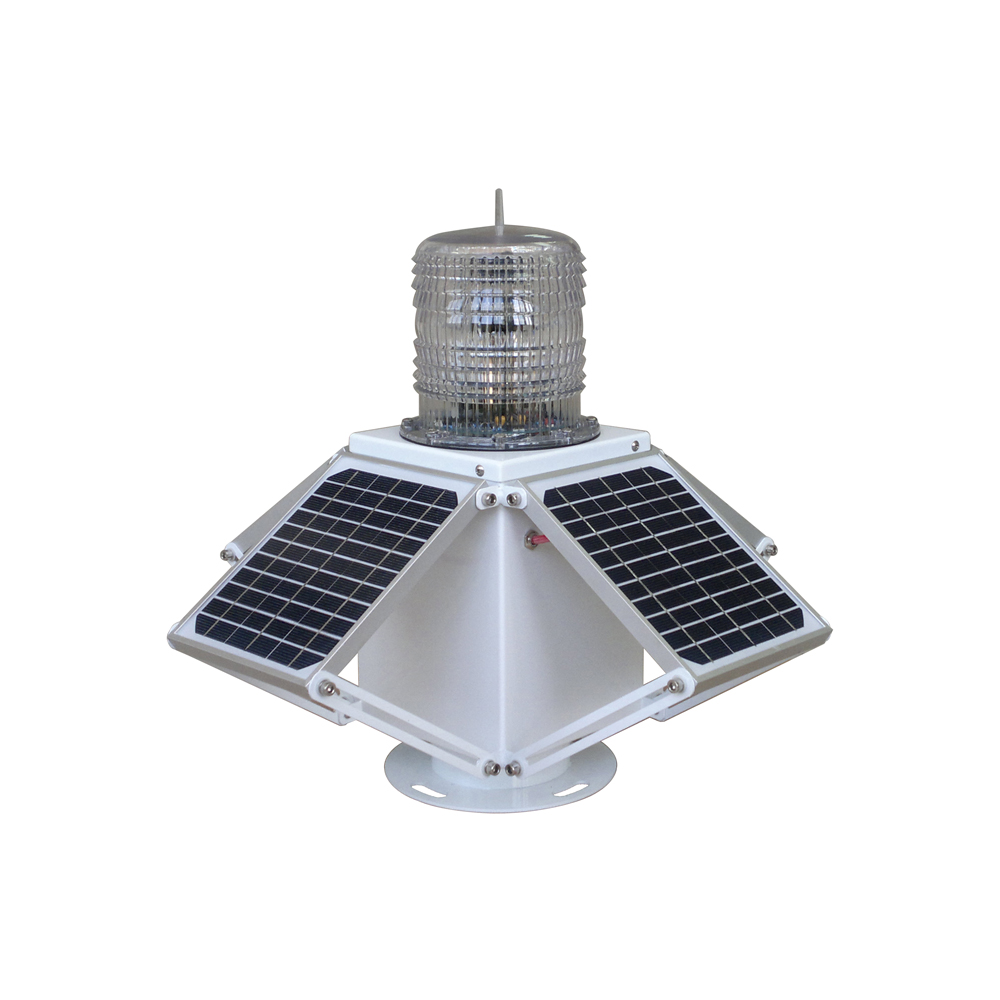

5-10NM Solar Marine lanterns / Buoy Lights /navigation aids
Click on the image to view the original image
Product: views:45-10NM Solar Marine lanterns / Buoy Lights /navigation aids
Branch: Green Source
Type: Aviation Obstruction Lights
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-16 15:43
  Negotiated
Product Details
Overview
Quick Details
Type:
Aviation Obstruction Lights
Input Voltage(V):
12
Lamp Power(W):
15
Lamp Luminous Flux(lm):
1200
Lamp Luminous Efficiency(lm/w):
120
CRI (Ra):
100
Color Temperature(CCT):
Cool White
Beam Angle(°):
8
IP Rating:
IP65
Certification:
CE
Emitting Color:
White
Lamp Body Material:
Stainless Steel
Base Type:
B15
Light Source:
LED
Place of Origin:
Guangdong, China
Brand Name:
Green Source
Lighting Period (h):
>12
Power Provider:
Mono-crystalline silicon solar panel
Battery Capacity:
12V12AH
Power Consumption:
≤5W
Visual Range:
1~10 mile(s)
Weight:
8.5kg
Light Source Life:
>100000 hours
Optional Emitting Light Colors:
Red, Amber Yellow, Green, Blue, White
Horizontal Out-put:
360°
360° Overall Size(mm):
220 by 220 by 470
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1piece/set
Port
shenzhen
Lead Time:
Quantity(Sets)1 - 5051 - 100 >100
Est. Time(days)1015To be negotiated
Product Description

Product Details

Using advanced structure design, adopts 4 groups of solar panels which can angle adjustable and high efficiently, co-operate with solar dedicated battery as power supply. Advanced power management system will be used to charge the power in a comprehensive protection in order to save the service life of battery when it is under the condition of short-voltage or over-voltage or its temperature is too high or too low.

Management circuits adopt with low power dissipation control chip,which can reduce circuit power consumption, The light source adopts imported LED chip, which has the specific of high intensity, low power consumption, long service life and so on.
This product adopt with 304 stainless steel materials of the lacquer that bake .it is very convenient for installation and transportation.
Lampshade adopt with PC material, which can resist corrosion, anti-UV, anti-shock and so on.

Specification
LIGHTING
Visual Range
10+NM
Compliant With
IALA
Emitting Color
Red, White, Green, Yellow
Operation Mode
Flashing, Steady Burning
Vertical Divergence
>8°
Horizontal Out-put
360°
Light Source
LED
Light Lifespan
>100,000 Hours
POWER SUPPLY
Solar Panel
28W, 16.5V
Battery
12V 24Ah, lithium iron phosphate battery
Power Consumption
≤15W
Solar Panel Lifespan
>20 Years
STRUCTURE
Lens
Polycarbonate, UV Stabilize, Corrosion Resistance
Body
Aircraft Aluminum, Die-casting
Temperature Range
-40℃~70℃
Wind Load
>80m/s
Overall Size(mm)
Φ220× 472
Installation Size(mm)
Φ160 x M10
Water-proof
IP68
Weight
>5.8KG
Features

1.    Up to 10 nautical miles.
2.    Based on LED technology, and its color complies to IALA Recommendations E 200-1. 3.
3.    Bird spike against bird drop.
4.    Comprehensive protection is short-voltage, over-voltage, floating charge.
5.    International-advanced cold and special LED with low power consumption, high brightness and service life of light source reaching 100,000 hours.
6.    Strong corrosion resistance, rain and snow, shock and vibrations protection and UV protection.
7.    Clean, renewable, green and reliable energy source.
8.    Dusk-to-dawn operation: photocell, light can work at night automatically by photocell.
9.    At least 15 days autonomy without sunshine (optional: 30 days).
10.  Recyclable batteries with the lightest environmental.
11.  Ip68 protection standard, full sealing structure.

Options

1.  GPS synchronous.

2.  256 user adjustable IALA flash characters.

3.  Remote controller.

4.  Emitting color (optional): red, white, green, yellow.

Applications
Related Products
FAQ

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application.
    Secondly We quote according to your requirements or our suggestions.
    Thirdly customer confirms the samples and places deposit for formal order.
    Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 2-5 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
    Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
