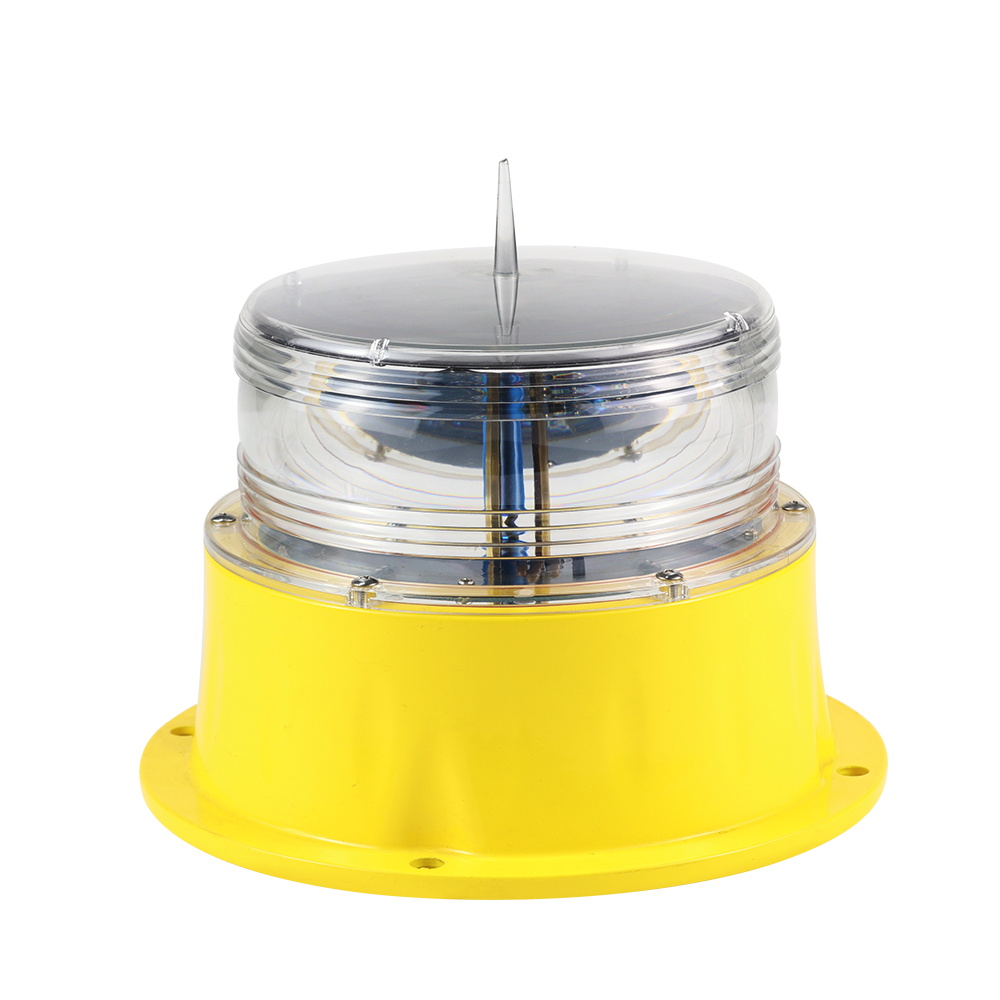

FAA ICAO L810 LED Solar Obstruction Light / aircraft warning light
Click on the image to view the original image
Product： views：5FAA ICAO L810 LED Solar Obstruction Light / aircraft warning light
Branch： Green Source
Type： Aviation Obstruction Lights
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 15:43
  Negotiated
Product Details
Overview
Quick Details
Type:
Aviation Obstruction Lights
Input Voltage(V):
AC220V
Lamp Power(W):
15
Lamp Luminous Flux(lm):
1500
Lamp Luminous Efficiency(lm/w):
100
CRI (Ra):
80
Color Temperature(CCT):
Other
Beam Angle(°):
360 Degree
IP Rating:
IP65
Certification:
CE, RoHS
Emitting Color:
Red
Lamp Body Material:
Aluminum Alloy
Base Type:
2G11
Light Source:
LED
Place of Origin:
Guangdong, China
Brand Name:
Green Source
FAA Classify:
L-810
Supply Frequency:
50HZ~60HZ
Working Mode:
steady burning / flashing
Light Intensity:
32.5cd
Vertical Divergence:
≥3°
Light Source Service Life:
≥20 years
Ambient Temperature:
-40℃~70℃
Packaging & Delivery
Lead Time:
Quantity(Sets)1 - 1011 - 5051 - 100 >100
Est. Time(days)3712To be negotiated
Product Description

Product Details

FAA ICAO L810 LED Solar Obstruction Light / aircraft warning light
Adopts low-light but high efficient solar panels integrated design, cooperate with solar dedicated lithium iron phosphate battery as power supply. The battery adopts advance power management system, which can provide good protection when battery"s voltage and temperature too high or too low, so it can improve the battery"s service life efficiently.

Control circuit adopts micro-power consumption, which reduce controlling circuit "s power consumption; Light source adopts high efficient LED chip, which has the specific of high light intensity, low power consumption, long service life and so on.

Products shell adopts adopts casted aviation aluminum alloy, this material has specific of light weight, corrosion resistance, it is convenient to install and transport.

Lampshade adopts PC material, which can corrosion resistance, anti-UV anti-shock.

Specification
LIGHTING
Effective Intensity
32.5cd
Compliant with
FAA L810, ICAO TYPE B
Emitting Color
Red (optional: yellow amber, green blue, white)
Operation Mode
Steady Burning / Flash Pattern
Vertical Divergence
>3°
Horizontal Out-put
360°
Light source
LED
Light lifespan
>100,000 Hours
POWER SUPPLY
Solar panel
2.5W, 9V
Battery
6.4V 6Ah, lithium iron phosphate battery
Power consumption
≤1W
solar panel lifespan
>20 Years
Autonomy
15 Days  (in cloudy & raning weather)
STRUCTURE
Lens
Polycarbonate, UV Stabilize, Corrosion Resistance
Body
Aircraft Aluminum, Die-casting
Temperature Range
-40℃~70℃
Wind Load
80m/s
Overall size(mm)
255×255×210
Installation size(mm)
Φ234mm x M8
Water-proof
IP65
Weight
3.5KG
Applications
