- Color Temperature(CCT):
- COOL WHITE
- IP Rating:
- IP68
- Input Voltage(V):
- 12V
- Lamp Luminous Efficiency(lm/w):
- 120
- Lamp Luminous Flux(lm):
- 1800
- Lamp Power(W):
- 15
- CRI (Ra):
- 222
- Place of Origin:
- Guangdong, China
- Power Source:
- Rechargeable Battery
- Battery Type:
- Lithium Metal
- Brand Name:
- Green Source
- Certification:
- ce, FCC, RoHS
- Usage:
- Emergency
- Light Source:
- LED
- Lighting Period (h):
- >12
- Power Provider:
- Mono-crystalline silicon solar panel
- Battery Capacity:
- 12V20AH
- Power Consumption:
- ≤15W
- Visual Range:
- 1~18 mile(s)
- Weight:
- 15kg
- Light Source Life:
- >100000 hours
- Optional Emitting Light Colors:
- Red, Amber Yellow, Green, Blue, White
- Horizontal Out-put:
- 360°
- Overall Size(mm):
- 325mm*325mm*366mm
- Supply Ability:
- 1000 Set/Sets per Month
- Packaging Details
- 1piece/ctn
- Port
- shenzhen
- Lead Time:
Quantity(Sets) 1 - 1 2 - 20 21 - 50 >50 Est. Time(days) 10 15 20 To be negotiated
Product Details

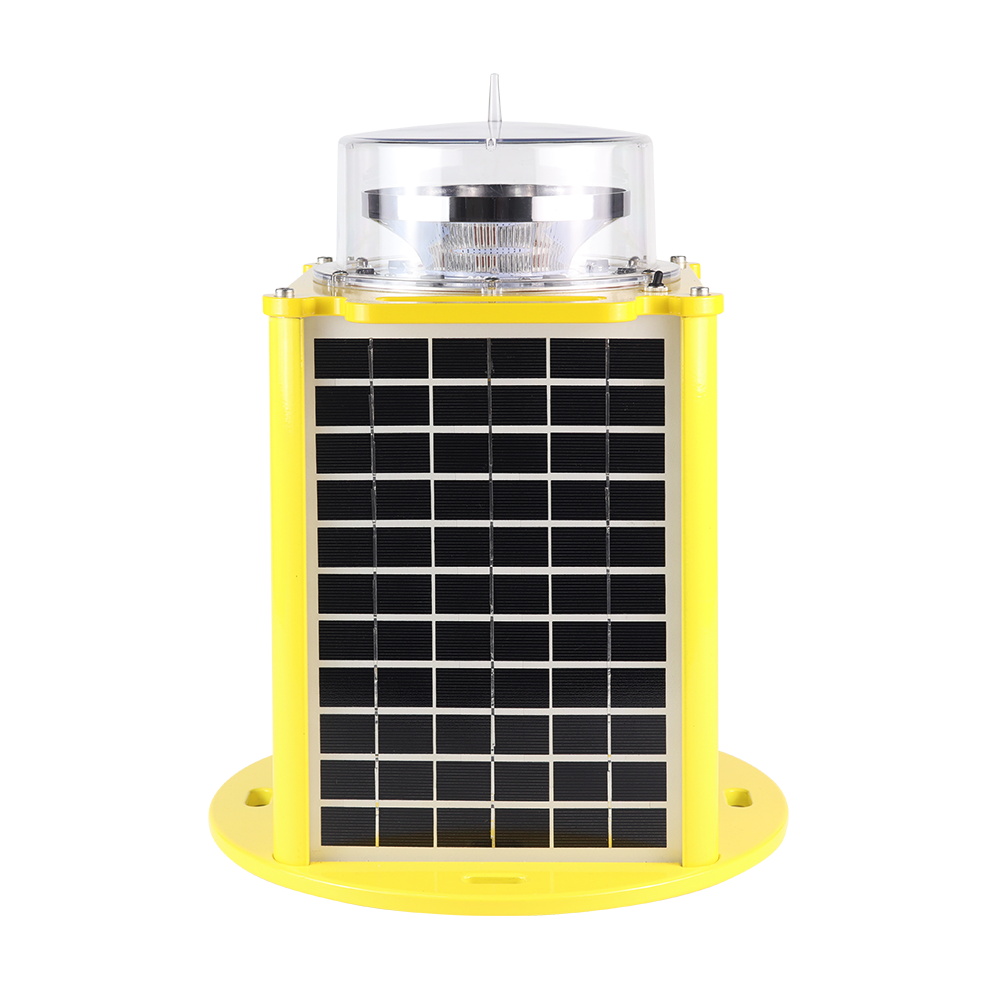

Adopts low-light but high efficient solar panels integrated design, cooperate with lithium iron phosphate battery as power supply. The battery adopts advance power management system, which can provide good protection when battery "s voltage and temperature too high or too low, so it can improve the battery"s service life efficiently.
Control circuit adopts micro-power consumption, which reduce controlling circuit "s power consumption; Light source adopts dedicated LED chip, which has specific of high light intensity, low power consumption, long service life and so on.
Adopting the design of the portable design, which is convenient for carrying and transportation, especially suitable for the occasions of the temporary channel, the airport runway, the tower, etc.

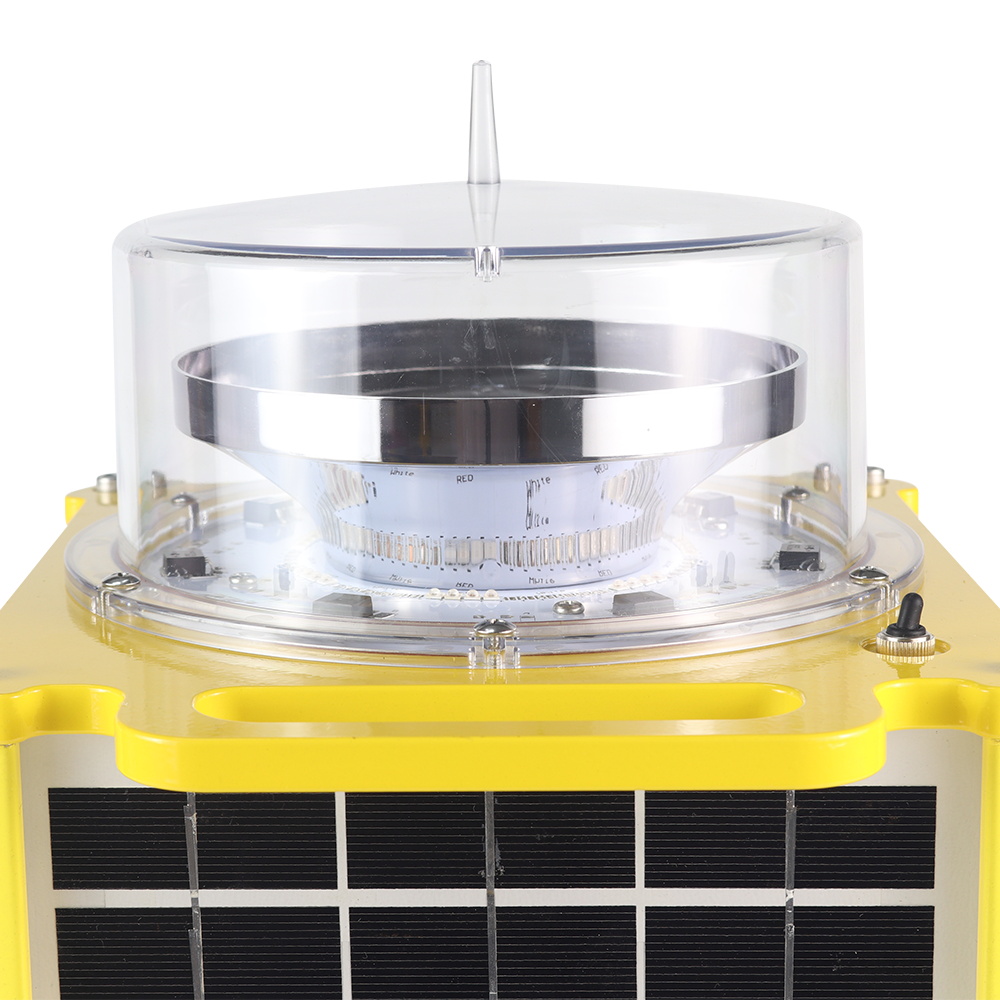

Lampshade adopts glass material, which can corrosion resistance, anti-UV anti-shock.
LIGHTING | |
Visual Range | 18+NM |
Compliant With | IALA |
Emitting Color | Red, White, Green, Yellow |
Operation Mode | Flashing, Steady burning |
Vertical Divergence | >10° |
Horizontal Out-put | 360° |
Light Source | LED |
Light Lifespan | >100,000 Hours |
POWER SUPPLY | |
Solar Panel | 28W, 16.5V |
Battery | 12V 24Ah, Lithium Iron Phosphate Battery |
Power Consumption | ≤1W |
Solar Panel Lifespan | >20 Years |
STRUCTURE | |
Lens | Polycarbonate, UV Stabilize, Corrosion Resistance |
Body | Aircraft Aluminum, Die-casting |
Temperature Range | -40℃~70℃ |
Wind Load | >80m/s |
Overall Size(mm) | Φ325 by 366 |
Installation Size(mm) | Φ270 by M12 |
Water-proof | IP68 |
Weight | >17.5KG |
1. Up to 10 nautical miles.
2. Based on LED technology, and its color complies to IALA Recommendations E 200-1. 3.
3. Bird spike against bird drop.
4. Comprehensive protection is short-voltage, over-voltage, floating charge.
5. International-advanced cold and special LED with low power consumption, high brightness and service life of light source reaching 100,000 hours.
6. Strong corrosion resistance, rain and snow, shock and vibrations protection and UV protection.
7. Clean, renewable, green and reliable energy source.
8. Dusk-to-dawn operation: photocell, light can work at night automatically by photocell.
9. At least 15 days autonomy without sunshine (optional: 30 days).
10. Recyclable batteries with the lightest environmental.
11. Ip68 protection standard, full sealing structure.
1. GPS synchronous.
2. 256 user adjustable IALA flash characters.
3. Remote controller.
4. Emitting color (optional): red, white, green, yellow.
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
