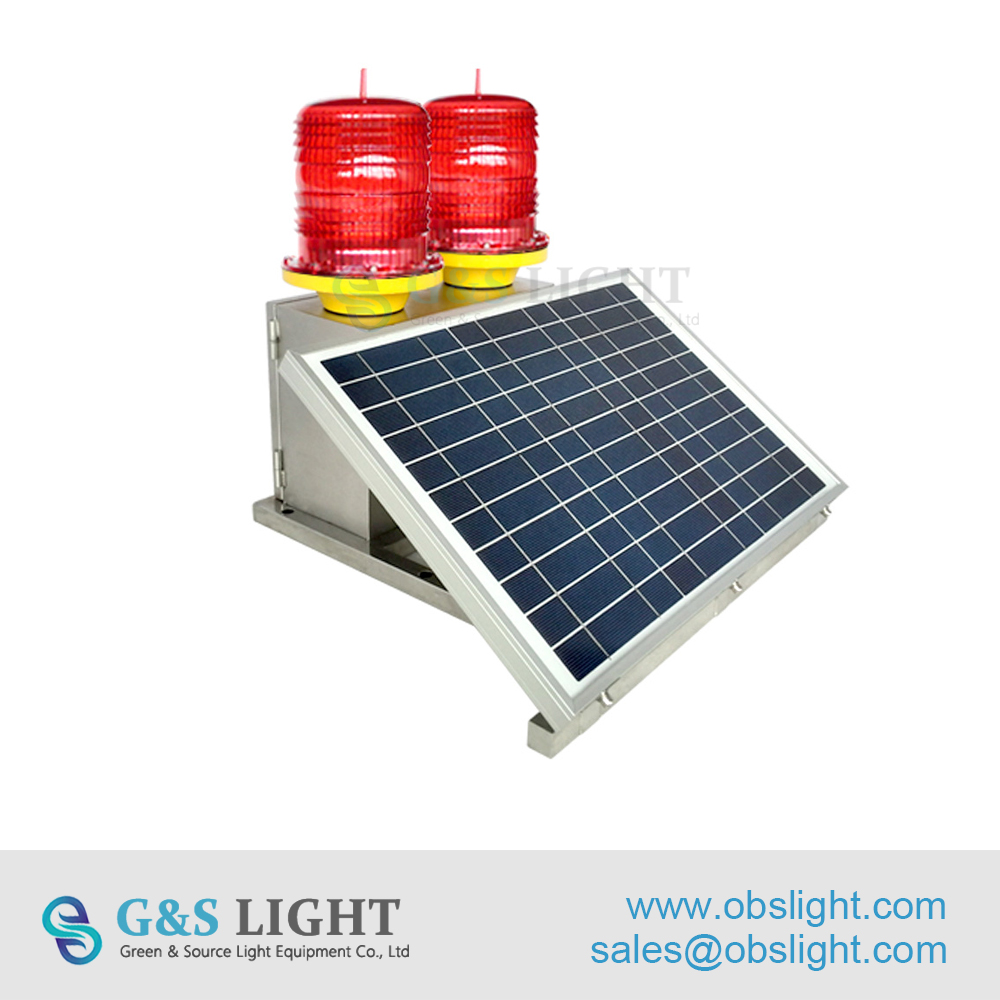

Solar Medium Intensity LED Dual Obstruction Lights
Click on the image to view the original image
Product: views:6Solar Medium Intensity LED Dual Obstruction Lights
Branch: Green Source
Type: Aviation Obstruction Lights
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-16 15:43
  Negotiated
Product Details
Overview
Quick Details
Type:
Aviation Obstruction Lights
Input Voltage(V):
16.5
Lamp Power(W):
20
Lamp Luminous Flux(lm):
2000
Lamp Luminous Efficiency(lm/w):
100
CRI (Ra):
80
Color Temperature(CCT):
Cool White
Beam Angle(°):
360
IP Rating:
IP67
Certification:
CE, FCC, RoHS
Emitting Color:
Red
Lamp Body Material:
PC
Base Type:
2G11
Light Source:
LED
Place of Origin:
Guangdong, China
Brand Name:
Green Source
Solar Panel:
16.5V 28W
Flash Rate:
White in daytime: 40times/min Red at night: 20times/min
Transmitting Range:
>5Km(T=0.95)
Intensity:
In daytime ≥ 1600cd At night ≥ 18000cd
Battery Type:
12V24AH lead-acid battery
Vertical Divergence:
Overall Size:
490mm*525mm*490mm
Installation Size:
320mm*200mm*M10
Anti-wind Ability:
80m/s
Weight:
16kg
Supply Ability
Supply Ability:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
1SET/CTN
Port
Shenzhen
Product Description

Product Details

Adopts the solar panel which with lower intensity of illumination and higher efficiency, co-operate with dedicated lithium iron phosphate battery as power supply. The battery use advanced power management system, which can provide good protection when battery ’s voltage and temperature too high or too low, so it can improve the battery’s service life efficiently.

Control circuit adopts micro-power consumption, which reduce controlling circuit ’s power consumption. Light resource adopts high efficient LED chip, which has the specific of high light intensity, low power consumption, long service life and so on.
The product"s shell adopts SUS 304 stainless steel, this material has the specific of corrosion resistance and light weight, It"s very convenient for installation and transportation.
Lampshade adopts PC material, which can corrosion resistance, anti-UV anti-shock.
Double light resource as a back up, if king light broken it will switch to auxiliary light working.

Specification
LIGHTING
Effective Intensity
2,000cd(night)
Compliant with
FAA L864, ICAO Medium Intensity TYPE B
Emitting Color
red(night)
Operation Mode
Flashing
Vertical Divergence
>3°
Horizontal Out-put
360°
Light source
LED
Light lifespan
>100,000 Hours
POWER SUPPLY
Solar panel
16.5V,28W
Battery
12V24AH
Power consumption
≤20W
solar panel lifespan
>20 Years
STRUCTURE
Lens
Polycarbonate, UV Stabilize, Corrosion Resistance
Body
Stainless steel
Temperature Range
-40℃~70℃
Wind Load
>80m/s
Overall size(mm)
525mm×490mm×480mm
Installation size(mm)
322mm×200mm×M8
Water-proof
IP67
Weight
17.5KG
Applications
Related Products
FAQ

Q1. Can I have a sample order for Obstruction light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.

Q3. Do you have any MOQ limit for Obstruction light order?

A: Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for Obstruction light?

A: Firstly let us know your requirements or application.
    Secondly We quote according to your requirements or our suggestions.
   Thirdly customer confirms the samples and places deposit for formal order.
   Fourthly We arrange the production.

Q6. Is it OK to print my logo on Obstruction light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 2-5 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
