Home > Products > LED low intensity single aviation obstruction light

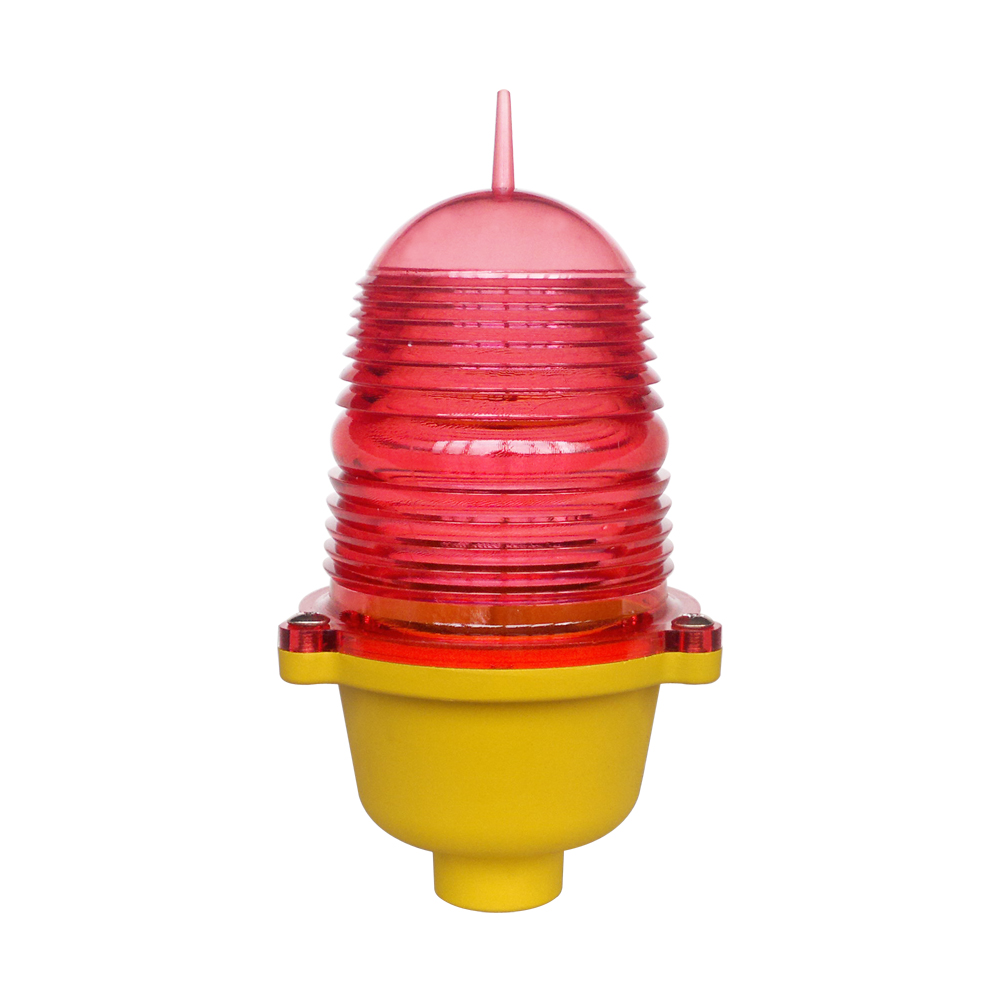

LED low intensity single aviation obstruction light
Click on the image to view the original image
Product： views：5LED low intensity single aviation obstruction light
Branch： Green & Source
Type： Aviation Obstruction Lights
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 15:43
  Negotiated
Product Details
Overview
Quick Details
Type:
Aviation Obstruction Lights
Input Voltage(V):
AC220V, AC120V, DC12V
Lamp Power(W):
3
Lamp Luminous Flux(lm):
300
Lamp Luminous Efficiency(lm/w):
100
CRI (Ra):
80
Color Temperature(CCT):
Cool White
Beam Angle(°):
360
IP Rating:
IP65
Certification:
CE, RoHS
Emitting Color:
Red
Lamp Body Material:
PC
Base Type:
2G11
Light Source:
LED
Place of Origin:
Guangdong, China
Brand Name:
Green & Source
FAA Classify:
L-810
Power Supply Frequency:
50HZ~60HZ
Working Mode:
steady burning, flashing, steady burning backup, flash alternately
Light Intensity:
Type B ≥32.5cdType A ≥10cd
Light Source service Life:
≥20 years
Overall Size:
285mm*136mm*320mm
Installation Size:
3/4inches or 1 inch
IP Protection:
IP65
Weight:
3kg
Anti-Wind Ability:
120m/s
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
4pcs/carton
Port
Shenzhen
Lead Time:
Quantity(Sets)1 - 1011 - 5051 - 100 >100
Est. Time(days)3710To be negotiated
Product Description

Product Details

LED low intensity single aviation obstruction light,Base with high intensity aviation aluminum casting, fully sealed structure. Light source adopt with independent research and development dedicated LED chip, which have the specific of low power consumption and long long life. Lampshade adopt with PC material, it can resist corrosion, anti-UV, anti-shock.

Management circuit with strong lightning protection and With the surge protection device, which can adopt to extremity bad working environment. This lamp with photoswich, it can turn on when light intensity less than 50LUX, and turn off when above 50Lux.
Specification
LIGHTING
Effective Intensity
10cd/ 32.5cd
Compliant with
FAA L810, ICAO TYPE A/ B
Emitting Color
Red
Operation Mode
Steady burning
Vertical Divergence
10°
Horizontal Out-put
360°
Light source
LED
Light lifespan
>10000h
POWER
Power Supply
Optional voltage:AC220V, AC120V, DC12V,DC24V,DC48V
Supply Frequency
50HZ～60HZ
Power Consumption
≤3W
STRUCTURE
Overall Size
136mm×136mm×220mm
Installation Size
3/4inches or 1 inch  chassis install
Lens
Polycarbonate, UV Stabilize, Corrosion Resistance
Body
aviation Aluminum alloy, Die-casting
Temperature Range
-40℃～70℃
Weight
1KG
Waterproof
IP65
Structure drawing
Application
Relate products
FAQ

Q1. Can I have a sample order for obstruction light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for obstruction light?

A: Firstly let us know your requirements or application.
    Secondly We quote according to your requirements or our suggestions.
    Thirdly customer confirms the samples and places deposit for formal order.
    Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 2 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
