Home > Products > Omnidirectional High Intensity tower obstruction light/ FAA ICAO aviation beacon

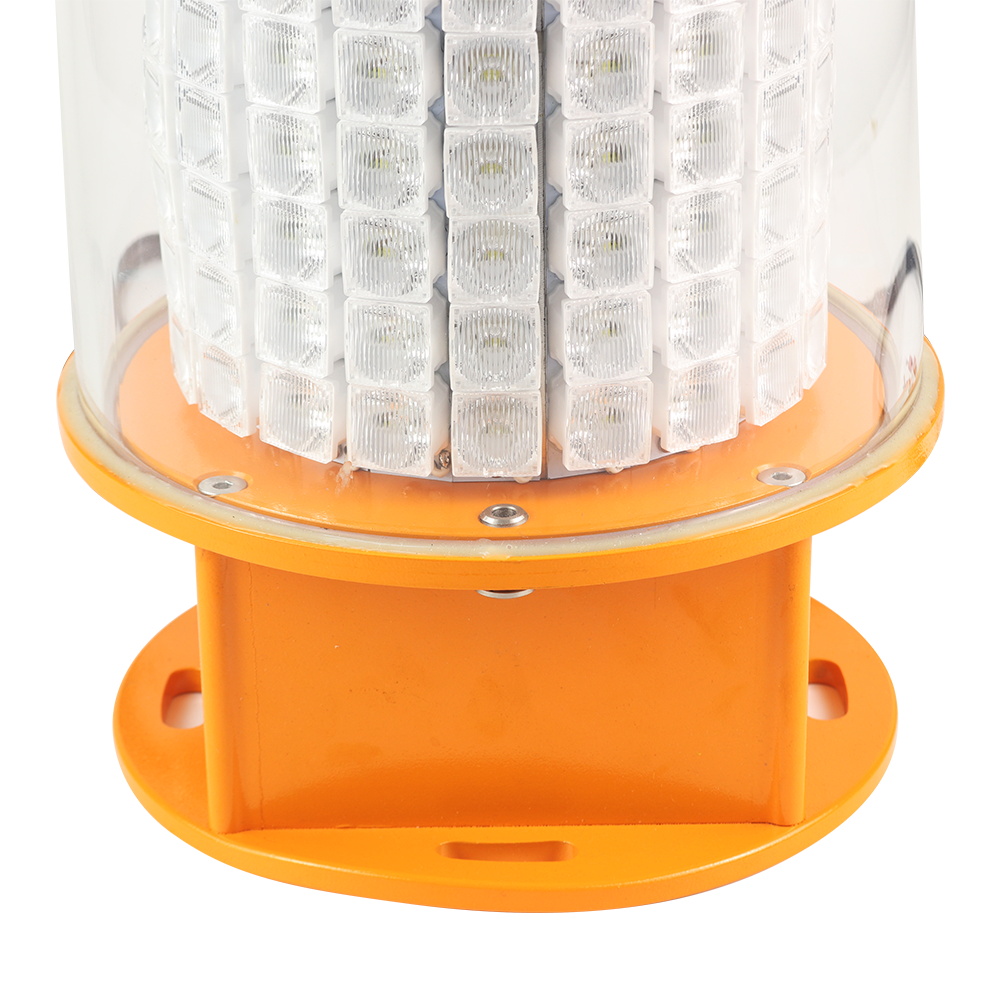

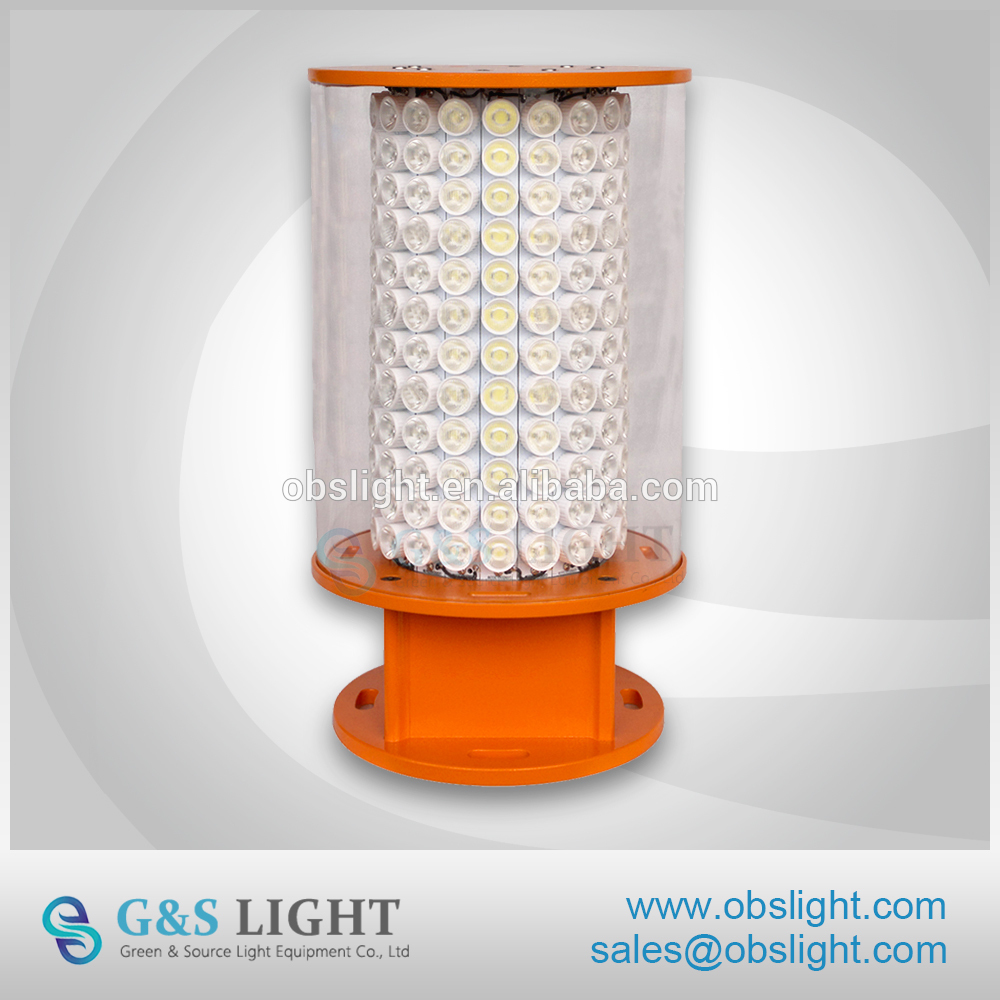

Omnidirectional High Intensity tower obstruction light/ FAA ICAO aviation beacon
Click on the image to view the original image
Product: views:6Omnidirectional High Intensity tower obstruction light/ FAA ICAO aviation beacon
Branch: Green Source
Type: Aviation Obstruction Lights
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-16 15:43
  Negotiated
Product Details
Overview
Quick Details
Type:
Aviation Obstruction Lights
Input Voltage(V):
AC120V, AC110V, DC48V
Lamp Power(W):
150
Lamp Luminous Flux(lm):
18000
Lamp Luminous Efficiency(lm/w):
120
CRI (Ra):
80
Color Temperature(CCT):
Cool White
Beam Angle(°):
360
IP Rating:
IP67
Certification:
CE, FCC, RoHS
Emitting Color:
White
Lamp Body Material:
Aluminum Alloy
Base Type:
E27
Light Source:
LED
Place of Origin:
Guangdong, China
Brand Name:
Green Source
Standard:
ICAO High-intensity Type A , FAA L-856/857
Light intensity:
2000cd-200,000cd±25%
Flash rate:
40-60times/minute
Service life of light source:
100,000hours
Overall size(mm):
245 by 245 by 400
Installation size(mm):
180 by 180 by 12
Vertical degree:
3°~7°
Material:
-Housing: PC -Base: die casting aluminum
Weight:
23Kg
Ambient temperature:
-55℃~+70℃
Supply Ability
Supply Ability:
100 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1pc/carton
Port
Shenzhen
Lead Time:
Quantity(Sets)1 - 1011 - 5051 - 100 >100
Est. Time(days)102030To be negotiated
Product Description

Product Details

Adopts structure of aluminum alloy of the lacquer that bake, it has the specific of light weight and corrosion resistance.
The light source adopts self search and development dedicated LED chip packing, it has the specific of high light intensity, low power consumption, long service life.

Lampshade adopts borosilicate glass, which has super power of corrosion resistance, anti-UV, shock resistance. Pilot circuit has strong ability of lighting protection and with anti-surge protection, which can adapt to extremely bad working environment. This equipment contain lots of working mode and can be customized according the customers requirement.

Specification
LIGHTING

Effective Intensity
2,000cd±25%(Night)
20,000cd±25%(Twilight),
200,000cd±25%(Daytime),
Compliant with
FAA L856 / L857, ICAO High Intensity TYPE A
Emitting Color
White
Operation Mode
Flash Pattern
Vertical Divergence
3°~7°
Horizontal Out-put
360°
Light source
LED
Light lifespan
>100,000 Hours
POWER SUPPLY
Operating Voltage
AC220V/230V (default), optional: (AC120V,AC110V,DC48V)
Power consumption
150W
STRUCTURE
Housing
Borosilicate glass
Body
Aircraft Aluminum, Die-casting
Temperature Range
-40℃~70℃
Wind Load
>80m/s
Overall size(mm)
Φ237 by 406
Installation size(mm)
Φ180 by M10
Water-proof
IP67
Weight
15KG
Structure drawing
Application
Relate products
FAQ

Q1. Can I have a sample order for Obstruction light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.

Q3. Do you have any MOQ limit for Obstruction light order?

A: Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for Obstruction light?

A: Firstly let us know your requirements or application.
    Secondly We quote according to your requirements or our suggestions.
    Thirdly customer confirms the samples and places deposit for formal order.
    Fourthly We arrange the production.

Q6. Is it OK to print my logo on Obstruction light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 2-5 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
