- Type:
- Aviation Obstruction Lights
- Input Voltage(V):
- DC12V
- Lamp Power(W):
- 20
- Lamp Luminous Flux(lm):
- 2000
- Lamp Luminous Efficiency(lm/w):
- 100
- CRI (Ra):
- 80
- Color Temperature(CCT):
- Cool White
- Beam Angle(°):
- 360
- IP Rating:
- IP67
- Certification:
- CE, FCC, RoHS
- Emitting Color:
- Red
- Lamp Body Material:
- Aluminum Alloy
- Base Type:
- 2G11
- Light Source:
- LED
- Place of Origin:
- Guangdong, China
- Brand Name:
- Green Source
- Standard:
- FAA L-864
- Light intensity:
- ≥2000cd
- Working mode:
- flashing
- Light source:
- LED,100,000 hours service life
- Operating voltage:
- DC12V(Solar powered Way)
- Material::
- -Housing: PC-Base: Aluminum alloy
- Overall Size(mm):
- 276 by 276 by 480
- Installation Size(mm):
- 322 by 200 by M8
- Weight:
- 8.5Kg
- Ambient Temperature:
- -40℃~+60℃
- Supply Ability:
- 5000 Piece/Pieces per Month
- Packaging Details
- 4pcs/carton
- Port
- shenzhen
- Lead Time:
Quantity(Sets) 1 - 10 11 - 50 51 - 100 >100 Est. Time(days) 5 15 20 To be negotiated
Product Details

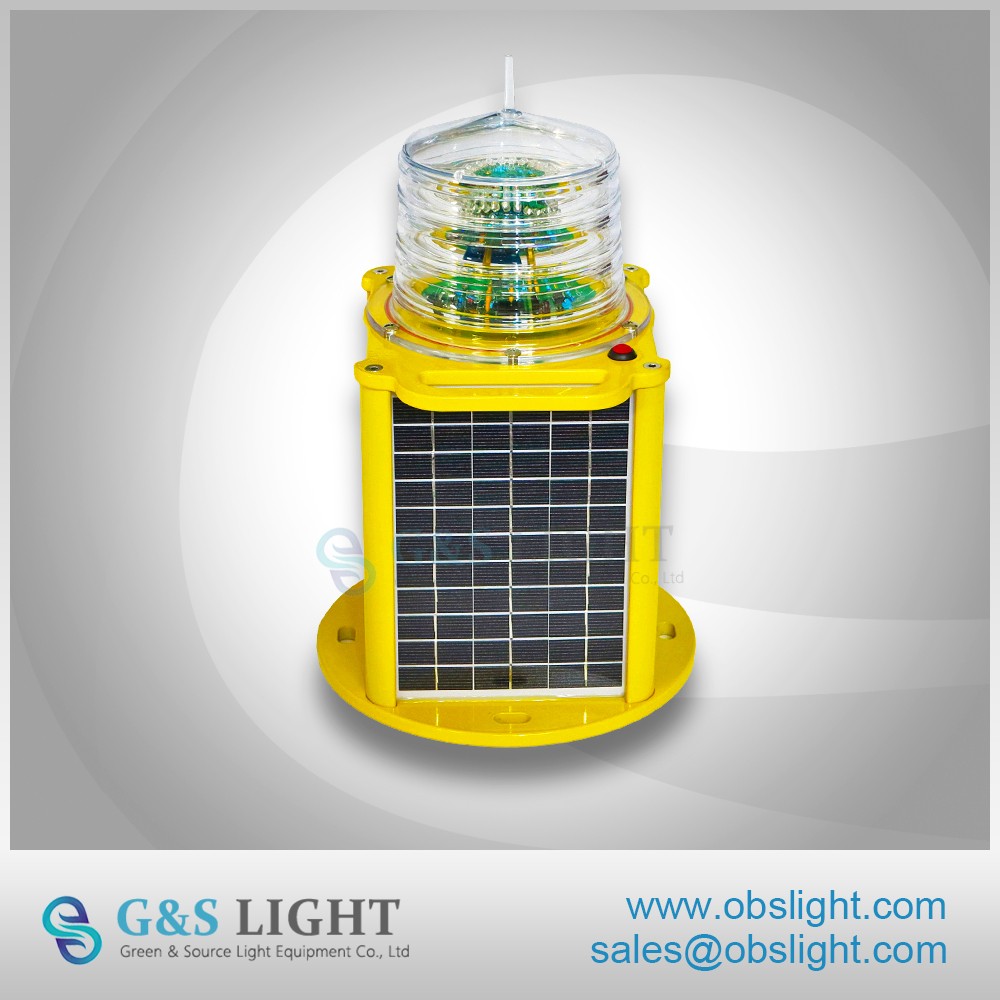

Solar powered LED Medium intensity aviation obstruction warning light for cellular towers Adopts low-light but high efficient solar panels integrated design, cooperate with solar lead-acid battery as power supply. The battery adopts advance power management system, which can provide good protection when battery "s voltage and temperature too high or too low, so it can improve the battery"s service life efficiently.
Control circuit adopts micro-power consumption, which reduce controlling circuit "s power consumption. Light source adopts high efficient LED chip, which has specific of high light intensity, low power consumption, long service life and so on.
Adopting the design of the portable design, which is convenient for carrying and transportation, especially suitable for the occasions of the temporary channel, the airport runway, the tower, etc.
Lampshade adopts glass material, which can corrosion resistance, anti-UV anti-shock.
LIGHTING | |
Effective Intensity | 2,000cd |
Compliant with | FAA L864, ICAO TYPE B |
Emitting Color | Red (optional: yellow amber, green blue, white) |
Operation Mode | Flash Pattern / Steady burning |
Vertical Divergence | >10° |
Horizontal Out-put | 360° |
Light source | LED |
Light lifespan | >100,000 Hours |
POWER SUPPLY | |
Solar panel | 6W x 4, 16.5V |
Battery | 12V 12Ah, lead-acid battery |
Power consumption | ≤15W |
solar panel lifespan | >20 Years |
STRUCTURE | |
Lens | Polycarbonate, UV Stabilize, Corrosion Resistance |
Body | Aircraft Aluminum, Die-casting |
Temperature Range | -40℃~70℃ |
Wind Load | >80m/s |
Overall size(mm) | Φ260 by 420 |
Installation size(mm) | Φ220 by M12 |
Water-proof | IP67 |
Weight | 7KG |
Q1. Can I have a sample order for Obstruction light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q3. Do you have any MOQ limit for Obstruction light order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for Obstruction light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on Obstruction light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
