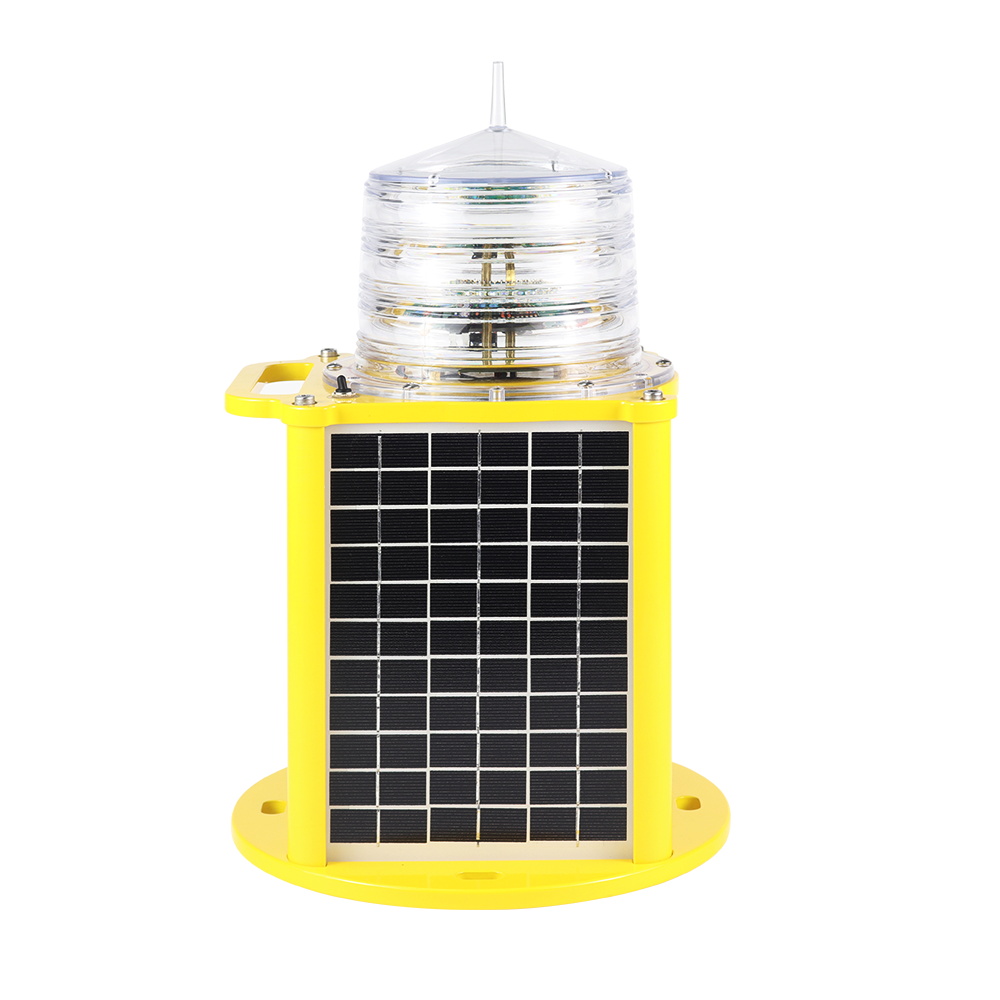

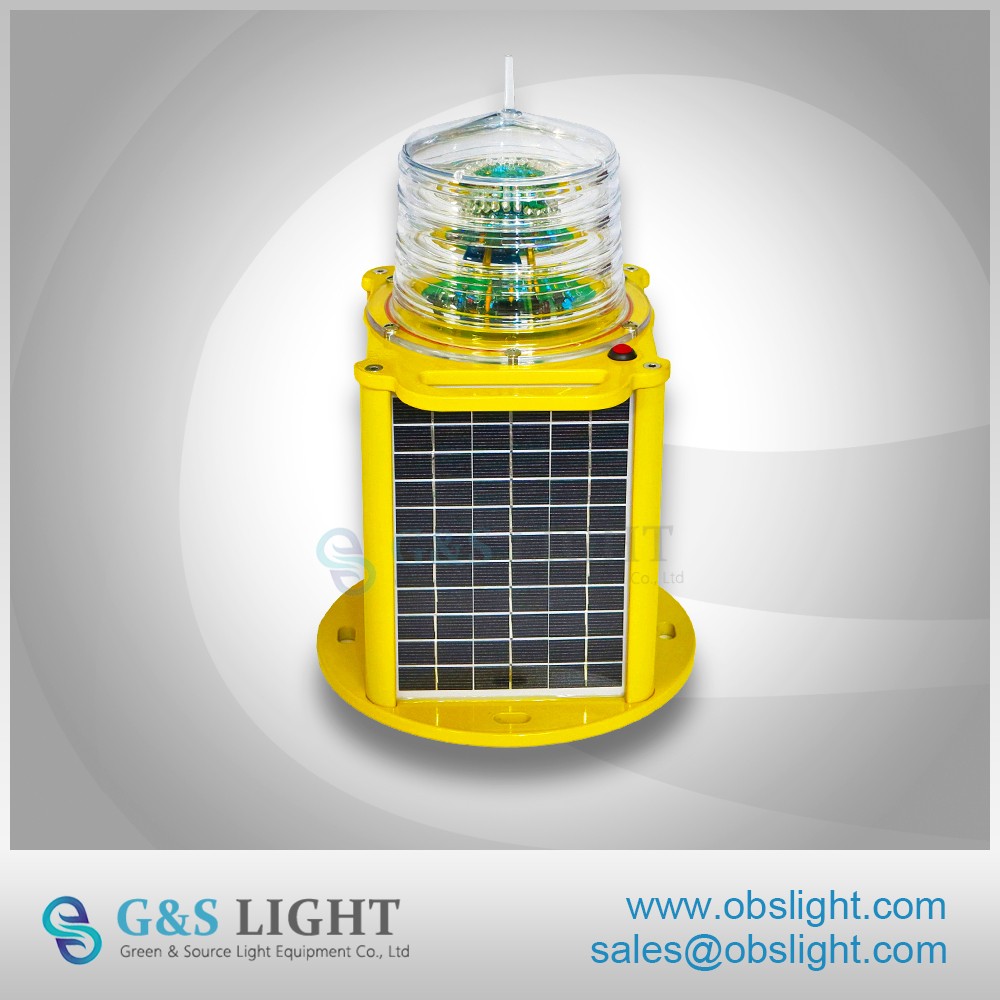

Solar powered aircraft warning light/solar obstruction lights/solar power beacon light
Click on the image to view the original image
Product: views:6Solar powered aircraft warning light/solar obstruction lights/solar power beacon light
Branch: Green Source
Type: Aviation Obstruction Lights
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-16 15:43
  Negotiated
Product Details
Overview
Quick Details
Type:
Aviation Obstruction Lights
Input Voltage(V):
Solar panel
Lamp Power(W):
20
Lamp Luminous Flux(lm):
2000
Lamp Luminous Efficiency(lm/w):
100
CRI (Ra):
80
Color Temperature(CCT):
Cool White
Beam Angle(°):
360
IP Rating:
IP67
Certification:
CE, FCC, RoHS
Emitting Color:
Red
Lamp Body Material:
Aluminum Alloy
Base Type:
2G11
Light Source:
LED
Place of Origin:
Guangdong, China
Brand Name:
Green Source
Standard:
FAA L-864
Light intensity:
≥2000cd
Working mode:
flashing
Light source:
LED,100,000 hours service life
Operating voltage:
DC12V(Solar powered Way)
Material::
-Housing: PC-Base: Aluminum alloy
Overall Size(mm):
276 by 276 by 480
Installation Size(mm):
322 by 200 by M8
Weight:
8.5Kg
Ambient Temperature:
-40℃~+60℃
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
4pcs/carton
Port
shenzhen
Lead Time:
Quantity(Sets)1 - 1011 - 5051 - 100 >100
Est. Time(days)51525To be negotiated
Product Description

Product Details

Solar powered aircraft warning light/solar obstruction lights/solar beacon Adopts low-light but high efficient solar panels integrated design, cooperate with solar lead-acid battery as power supply.The battery adopts advance power management system, which can provide good protection when battery "s voltage and temperature too high or too low, so it can improve the battery"s service life efficiently.

Control circuit adopts micro-power consumption, which reduce controlling circuit "s power consumption. Light source adopts high efficient LED chip, which has specific of high light intensity, low power consumption, long service life and so on.
Adopting the design of the portable design, which is convenient for carrying and transportation, especially suitable for the occasions of the temporary channel, the airport runway, the tower, etc.
Lampshade adopts glass material, which can corrosion resistance, anti-UV anti-shock.

Specification
LIGHTING
Effective Intensity
2,000cd
Compliant with
FAA L864, ICAO TYPE B
Emitting Color
Red (optional: yellow amber, green blue, white)
Operation Mode
Flash Pattern / Steady burning
Vertical Divergence
>10°
Horizontal Out-put
360°
Light source
LED
Light lifespan
>100,000 Hours
POWER SUPPLY
Solar panel
6W x 4, 16.5V
Battery
12V 12Ah, Lead-acid battery
Power consumption
≤15W
solar panel lifespan
>20 Years
STRUCTURE
Lens
Polycarbonate, UV Stabilize, Corrosion Resistance
Body
Aircraft Aluminum, Die-casting
Temperature Range
-40℃~70℃
Wind Load
>80m/s
Overall size(mm)
Φ260 by 420
Installation size(mm)
Φ220 by M12
Water-proof
IP67
Weight
7KG
Applications
Related Products
FAQ

Q1. Can I have a sample order for Obstruction light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.

Q3. Do you have any MOQ limit for Obstruction light order?

A: Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for Obstruction light?

A: Firstly let us know your requirements or application.
     Secondly We quote according to your requirements or our suggestions.
    Thirdly customer confirms the samples and places deposit for formal order.
     Fourthly We arrange the production.

Q6. Is it OK to print my logo on Obstruction light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 2 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
