Home > Products > Helipad Elevated Taxiway Edge Light / helipad light

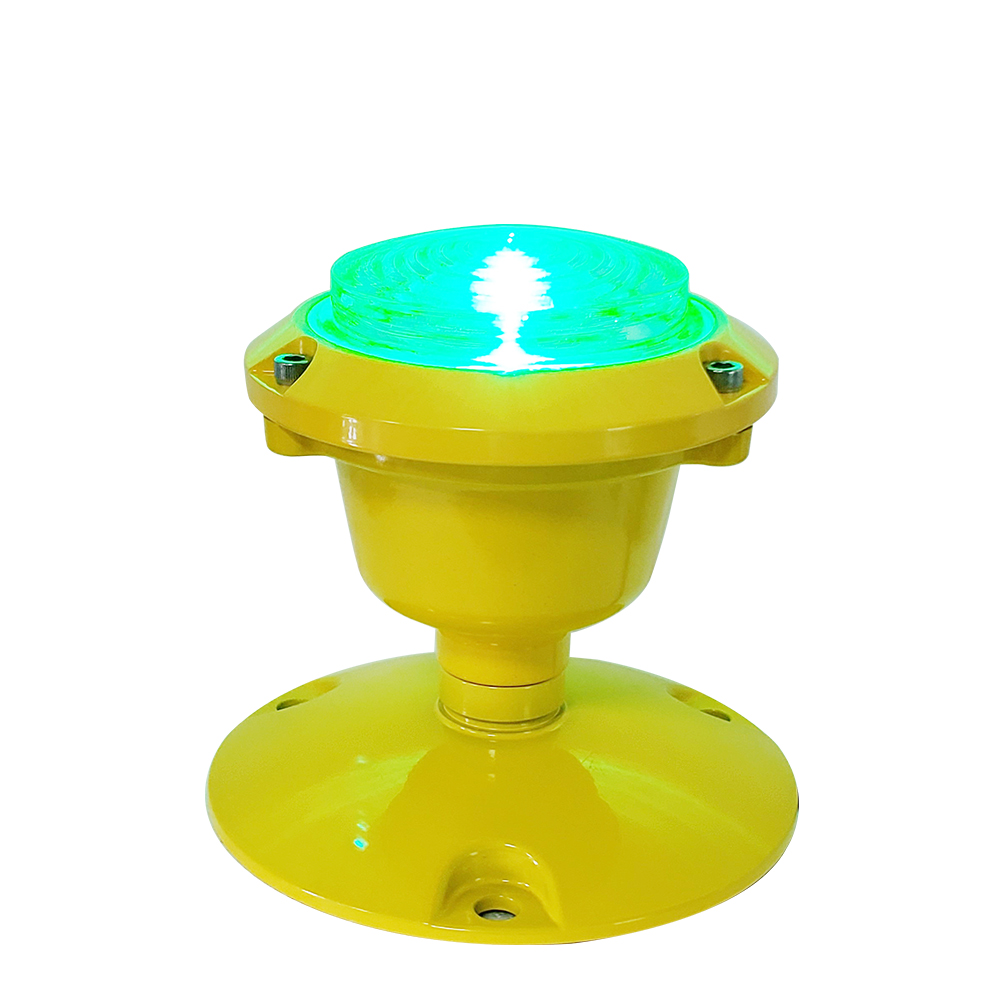

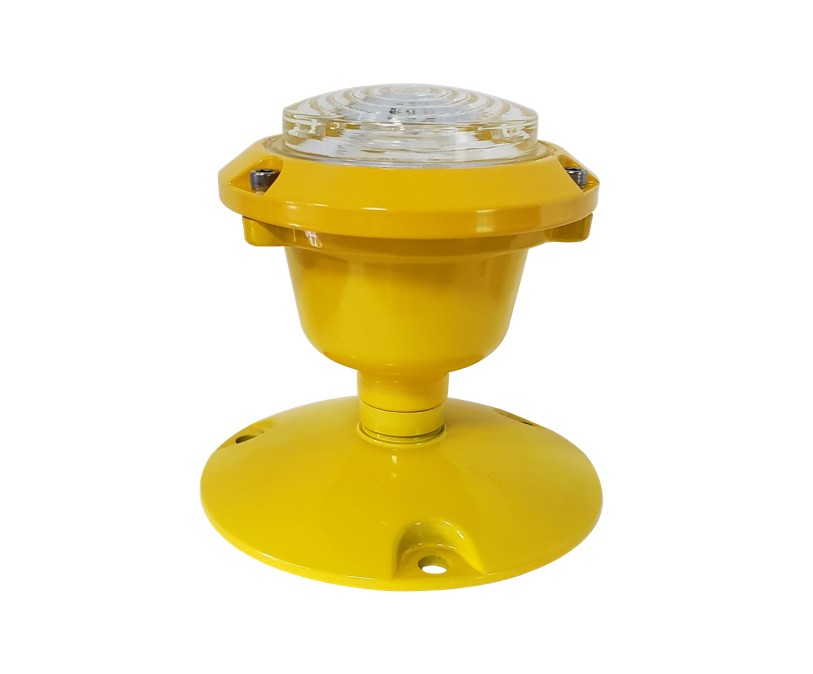

Helipad Elevated Taxiway Edge Light / helipad light
Click on the image to view the original image
Product： views：6Helipad Elevated Taxiway Edge Light / helipad light
Branch： GreenSource
Type： Aviation Obstruction Lights
Size： 20X20X20 cm
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 15:43
  Negotiated
Product Details
Overview
Quick Details
Type:
Aviation Obstruction Lights
Input Voltage(V):
AC220V ,AC120V,DC24V
Lamp Power(W):
10
Lamp Luminous Flux(lm):
100%
Lamp Luminous Efficiency(lm/w):
1452
CRI (Ra):
255
Color Temperature(CCT):
Cool White
Beam Angle(°):
360
IP Rating:
IP65
Certification:
CE, EMC, FCC, LVD, RoHS
Emitting Color:
Blue
Lamp Body Material:
Aluminum Alloy
Base Type:
2G11
Light Source:
LED
Place of Origin:
Guangdong, China
Brand Name:
GreenSource
Supply Frequency:
50HZ~60HZ
Working Mode:
Steady burning
Intensity:
≥50cd
Light Source Service life:
≥20 years
Overall Size:
136x280
Installation Size:
D93 X M10
Ambient Temperature:
-20℃~60℃
Weight:
1.8kg
IP Protection:
IP 65
Altitude:
<4500M

Packaging & Delivery

Selling Units:
Single item
Single package size:
20X20X20 cm
Single gross weight:
2.0 kg
Package Type:
4pcs/ctn
Lead Time:
Quantity(Set)1 - 2021 - 50>50
Est. Time(days)1020To be negotiated
Product Description


Product Details


Helipad Elevated Taxiway Edge Light / helipad light

Adopts LED light source technology, service life can be above 10 years. Lampshade is tempress glass material. It can show the location of airport running way’s edge, it can send out omnidirectional blue light signal at low visibility daytime and night, which can show the taxiway’s direction and location.

Specification
Name
Parameter
Type
GS-HP/T
Power Supply
AC180V～AC265V
Supply Frequency
50HZ～60HZ
Average Power Consumption
≤10W
Working Mode
Steady-burning
Intensity
≥25CD
Light Source Service Life
≥10 years
Emitting Color
blue
Overall Size
165mm×165mm×150mm
Installation Size
￠145mm×M10
IP Protection
IP66
Ambient Temperature
-20℃～60℃
Weight
1.6KG
Humidity
＜95%
Altitude
＜4500M
Features
Independent designed tempered glass lens, irritation angle follow the standard ofICAO.

With work stability, strong anti-interference ability and shock resistance.

Full sealed structure base, with superior waterproof performance.

With the anti-surge protection device.

Professional custom LED chips,which has the specific of high light brightness and long service life.

Transformer isolation step-down, all electrical work in low voltage circuit can save the service life of light source.

Easy to fold design, can reduce the secondary damage to helicopters effectively.

Arc adjustable design in chassis mounting holes, easy to install.
Applications
Structure Drawing
Related Products
FAQ

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.

Q3. Do you have any MOQ limit for helipad light order?

A: Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application.
    Secondly We quote according to your requirements or our suggestions.
    Thirdly customer confirms the samples and places deposit for formal order.
    Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 2-5 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
