Solar double aviation obstruction light / twin obstacle light for telecom towers or buildings
Click on the image to view the original image
Product: views:6Solar double aviation obstruction light / twin obstacle light for telecom towers or buildings
Branch: Green Source
Type: Aviation Obstruction Lights
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-16 15:43
  Negotiated
Product Details
Overview
Quick Details
Type:
Aviation Obstruction Lights
Input Voltage(V):
DC6.4
Lamp Power(W):
2
Lamp Luminous Flux(lm):
400
Lamp Luminous Efficiency(lm/w):
100
CRI (Ra):
80
Color Temperature(CCT):
Cool White
Beam Angle(°):
360
IP Rating:
IP67
Certification:
CE, FCC, RoHS
Emitting Color:
Red
Lamp Body Material:
Aluminum Alloy
Base Type:
2G11
Light Source:
LED
Place of Origin:
Guangdong, China
Brand Name:
Green Source
Standard:
ICAO, FAA L-810
Light intensity:
≥32.5cd
Working mode:
Steady-burning mode or Flashing mode(20-60times/minute)
Material:
Housing: PC-Base: SUS304 stainless steel
Overall Size(mm):
330 by 158 by 340
Installation Size(mm):
3/4inch or 100 by 100 by 12
Weight:
3Kg
Ambient Temperature:
-40℃~+60℃
Windload:
80m/s
Light source:
LED,100,000hours service life
Packaging & Delivery
Lead Time:
Quantity(Sets)1 - 12 - 2021 - 50 >50
Est. Time(days)3510To be negotiated
Product Description

Product Details

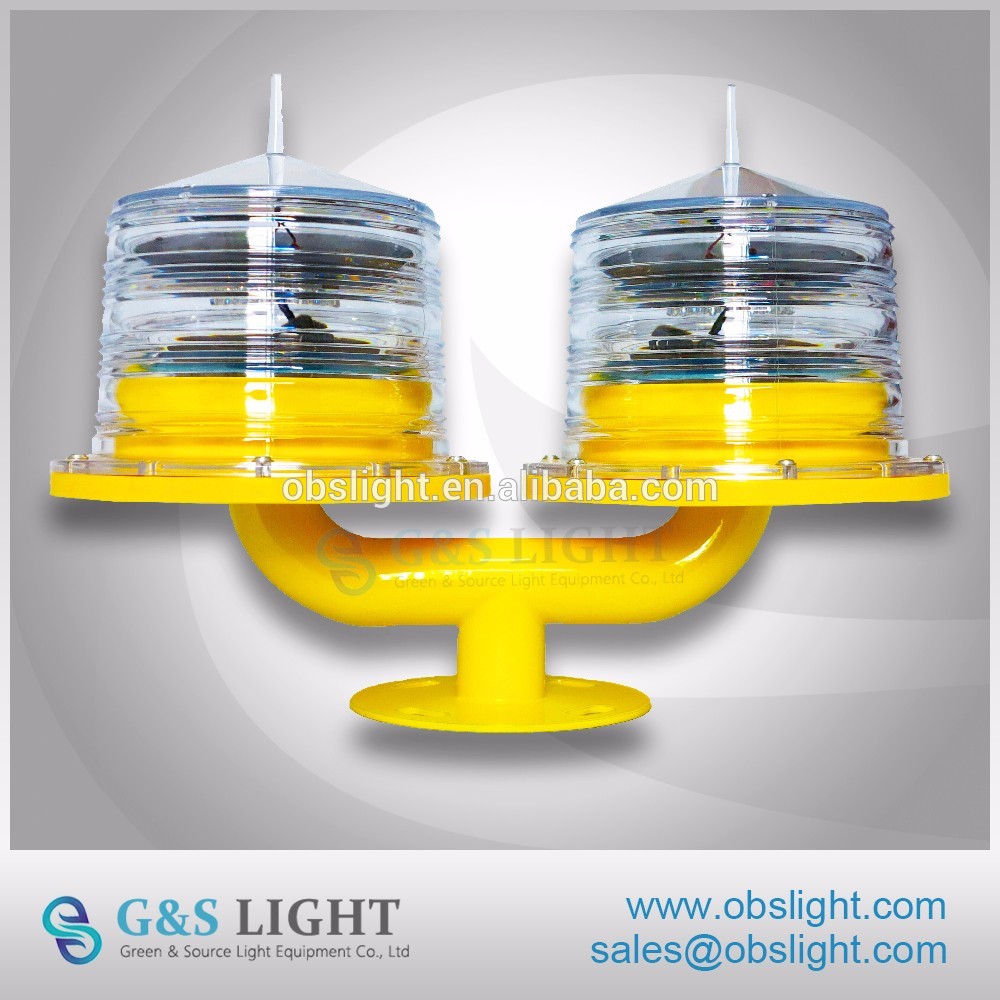

Solar double aviation obstruction light / twin obstacle light for telecom towers or buildings


Adopts insert high efficient solar panels integrated design. Control circuit adopts micro-power consumption, which reduce controlling circuit "s power consumption. Light source adopts high efficient LED chip, which has specific of high light intensity, low power consumption, long service life and so on.

The product base is made of stainless steel integrated that has the specific of light weight and corrosion insistence. It"s very convenient for installation and transportation.

Lampshade adopts PC material, which can corrosion resistance, anti-UV anti-shock.

Specification
LIGHTING
Effective Intensity
32.5cd
Compliant with
FAA L810, ICAO TYPE B
Emitting Color
Red (optional: yellow amber, green blue, white)
Operation Mode
Steady Burning / Flash Pattern
Vertical Divergence
>10°
Horizontal Out-put
360°
Light source
LED
Light lifespan
>100,000 Hours
POWER SUPPLY
Solar panel
4W, 8.5V
Battery
6.4V 3Ah, lithium iron phosphate battery
Power consumption
≤1W
solar panel lifespan
>20 Years
STRUCTURE
Lens
Polycarbonate, UV Stabilize, Corrosion Resistance
Body
SS 304
Temperature Range
-40℃~70℃
Wind Load
>80m/s
Overall size(mm)
356 by 186 by 282
Installation size(mm)
3/4 inch or Φ100 x M10
Water-proof
IP67
Weight
3KG
Structure drawing
Applications
Related Products
FAQ

Q1. Can I have a sample order for Obstruction light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.

Q3. Do you have any MOQ limit for Obstruction light order?

A: Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for Obstruction light?

A: Firstly let us know your requirements or application.
    Secondly We quote according to your requirements or our suggestions.
    Thirdly customer confirms the samples and places deposit for formal order.
    Fourthly We arrange the production.

Q6. Is it OK to print my logo on Obstruction light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 2-5 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
