- Type:
- Aviation Obstruction Lights
- Input Voltage(V):
- AC120V, AC110V, DC48V
- Lamp Power(W):
- 150
- Lamp Luminous Flux(lm):
- 18000
- Lamp Luminous Efficiency(lm/w):
- 120
- CRI (Ra):
- 80
- Color Temperature(CCT):
- Cool White
- Beam Angle(°):
- 360
- IP Rating:
- IP67
- Certification:
- CE, FCC, RoHS
- Emitting Color:
- White
- Lamp Body Material:
- Aluminum Alloy
- Base Type:
- E27
- Light Source:
- LED
- Place of Origin:
- Guangdong, China
- Brand Name:
- Green Source
- Standard:
- ICAO (Aerodromes Annex 14) High-intensity Type A , FAA L-856/857
- Light intensity:
- 2000-200,000cd(±25%)
- Flash rate:
- 40-60times/minute
- Service life of light source:
- 100,000hours
- Overall size(mm):
- 245 by 245 by 400
- Installation size(mm):
- 180 by 180 by 12
- Vertical degree:
- 3°~7°
- Material:
- -Housing: PC -Base: die casting aluminum
- Weight:
- 23Kg
- Ambient temperature:
- -55℃~+70℃
- Supply Ability:
- 1000 Piece/Pieces per Month
- Packaging Details
- 1pc/carton
- Port
- shenzhen
- Lead Time:
Quantity(Sets) 1 - 10 11 - 20 21 - 50 >50 Est. Time(days) 10 15 25 To be negotiated
Product Details

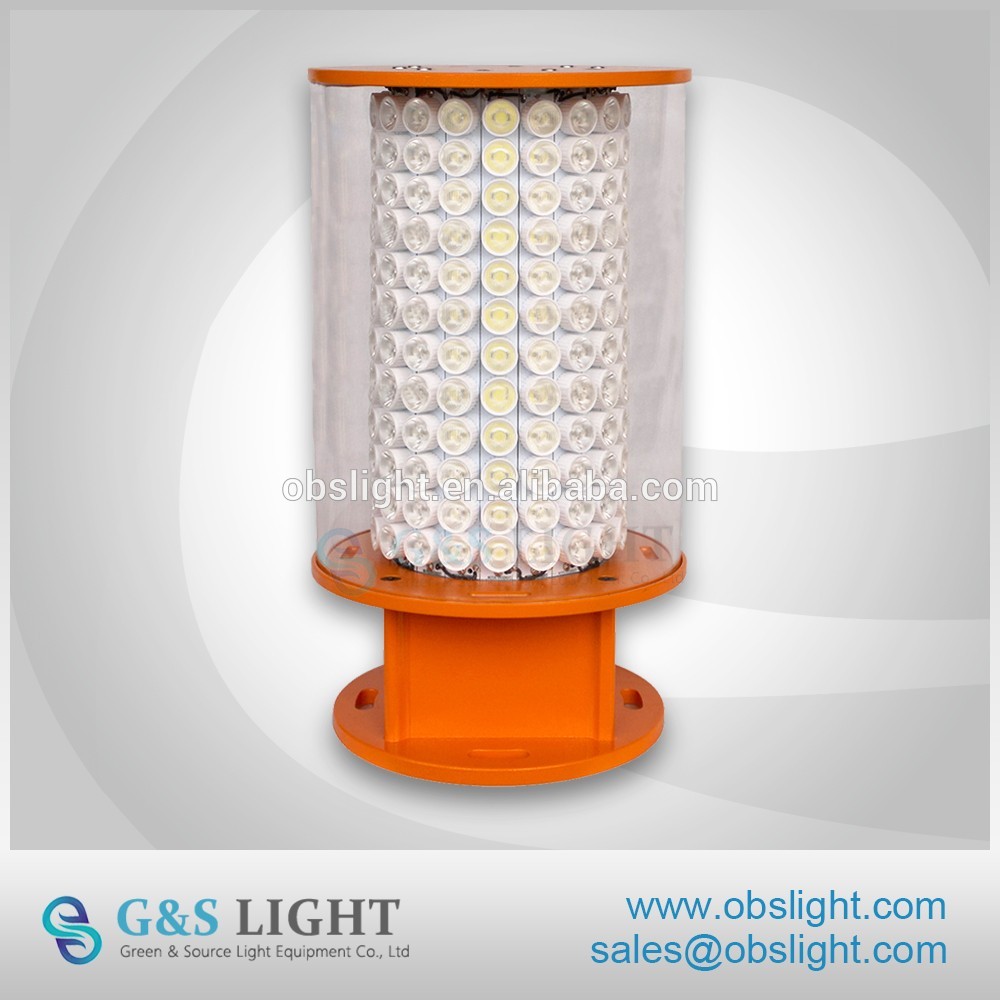

High Intensity Telecom Tower aviation Obstruction Light / white flashing tower warning light Adopts structure of aluminum alloy of the lacquer that bake, it has the specific of light weight and corrosion resistance.
The light source adopts self search and development dedicated LED chip packing, it has the specific of high light intensity, low power consumption, long service life.
Lampshade adopts borosilicate glass, which has super power of corrosion resistance, anti-UV, shock resistance. Pilot circuit has strong ability of lighting protection and with anti-surge protection, which can adapt to extremely bad working environment. This equipment contain lots of working mode and can be customized according the customers requirement.
LIGHTING | |
2,000cd±25%(Night) | |
20,000cd±25%(Twilight), | |
200,000cd±25%(Daytime), | |
Compliant with | FAA L856 / L857, ICAO High Intensity TYPE A |
Emitting Color | White |
Operation Mode | Flash Pattern |
Vertical Divergence | 3°~7° |
Horizontal Out-put | 360° |
Light source | LED |
Light lifespan | >100,000 Hours |
POWER SUPPLY | |
Operating Voltage | AC220V/230V (default), optional: (AC120V,AC110V,DC48V) |
Power consumption | 150W |
STRUCTURE | |
Housing | Borosilicate glass |
Body | Aircraft Aluminum, Die-casting |
Temperature Range | -40℃~70℃ |
Wind Load | >80m/s |
Overall size(mm) | Φ237 by 406 |
Installation size(mm) | Φ180 by M10 |
Water-proof | IP67 |
Weight | 15KG |
Q1. Can I have a sample order for Obstruction light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q3. Do you have any MOQ limit for Obstruction light order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for Obstruction light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on Obstruction light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
