- Type:
- Aviation Obstruction Lights
- Input Voltage(V):
- AC220V, AC110V, DC48V
- Lamp Power(W):
- 150
- Lamp Luminous Flux(lm):
- 1800
- Lamp Luminous Efficiency(lm/w):
- 120
- CRI (Ra):
- 500
- Color Temperature(CCT):
- Cool White
- Beam Angle(°):
- 360
- IP Rating:
- IP67
- Certification:
- CE, FCC, RoHS
- Emitting Color:
- White
- Lamp Body Material:
- Aluminum Alloy
- Base Type:
- E27
- Light Source:
- LED
- Place of Origin:
- Guangdong, China
- Brand Name:
- Green Source
- Standard:
- ICAO, FAA L-856/857
- Light intensity:
- 2,000cd~20,000cd~200,000cd ±25%
- Flash rate:
- 40-60times/minute
- Service life of light source:
- 100,000hours
- Overall size(mm):
- 580mm*290mm*365mm
- Installation size(mm):
- 540mm X 160mm X M10
- Vertical degree:
- 3°~7°
- Material:
- Glass+Aluminum alloy
- Weight:
- 23Kg
- Ambient temperature:
- -40℃~55℃
- Supply Ability:
- 1000 Set/Sets per Month
- Packaging Details
- carton and wooden box
- Port
- Shenzhen
- Lead Time:
Quantity(Sets) 1 - 10 11 - 50 51 - 100 >100 Est. Time(days) 10 20 25 To be negotiated
Product Details

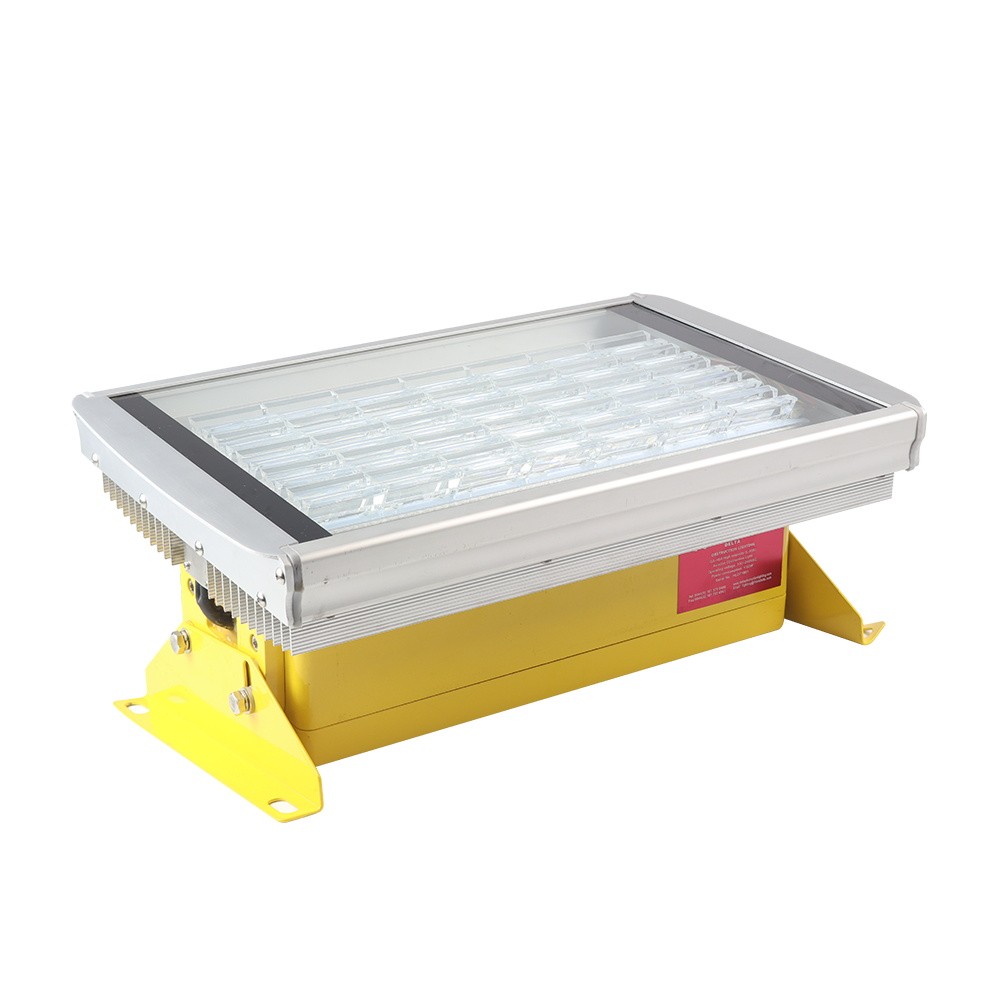

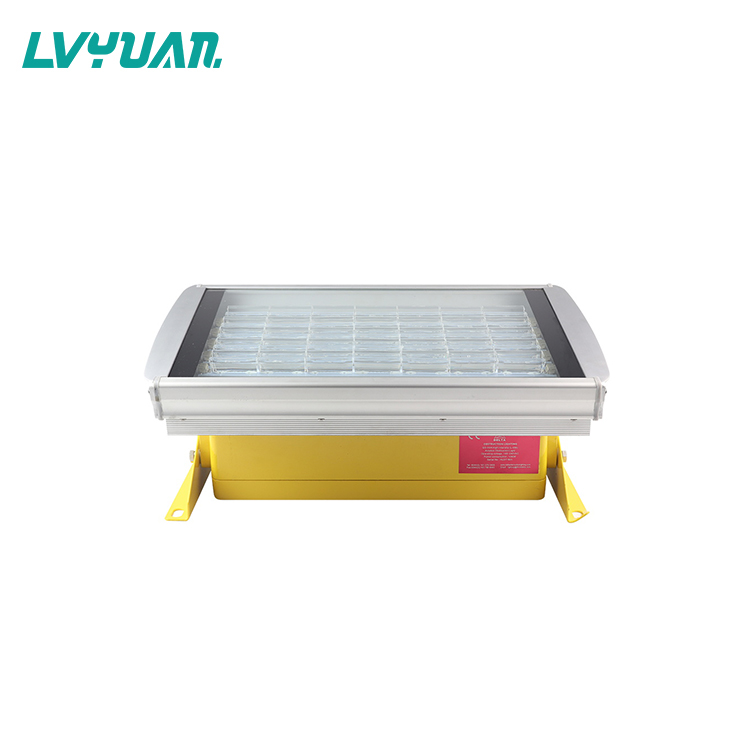

Adopt with aluminium alloy of the lacquer that bake, it has the specific of light weight and corrosion resistance. Inner this lamp set an environment that can high efficient reflect and cooperate with high borosilicate transmitting glass, the light effect use ratio can be up to 91%. Light resource adopt with precise integration chip packages, luminous efficiency is 5 times to normal LED.
Management system has good protection function, it can stop working when equipment short circuit, beyond temperature or working abnormal, it can self-recovery normal after malfunction is excluded.
Advanced portable structure design for installation and transportation, installation way can be adjustable according different situation, it can be installed in any difficult places.
The inner of the equipment was reduced voltage, complete machine "s electric circuit in the low voltage of 30V working situation, which can raise the equipment "s service life, meanwhile it can"t make any safety suffering to people who install.
Light resource adopt with advanced LED technology, the service life is above 10 years, which can save the cost of changing lamp for customers in the future.
LIGHTING | |
Effective Intensity | 2,000cd±25%(Night) |
20,000cd±25%(Twilight) | |
200,000cd±25%(Daytime) | |
Compliant with | FAA L856 / L857, ICAO High Intensity TYPE A |
Emitting Color | White |
Operation Mode | Flash Pattern |
Vertical Divergence | 3°~7° |
Horizontal Out-put | 90° ~ 120° |
Light source | LED |
Light lifespan | >100,000 Hours |
POWER SUPPLY | |
Operating Voltage | AC220V/230V (default), optional: (AC120V,AC110V,DC48V) |
Power consumption | 150W |
STRUCTURE | |
Housing | tempered glass |
Body | Aircraft Aluminum, Die-casting |
Temperature Range | -40℃~70℃ |
Wind Load | >80m/s |
Overall size(mm) | 580mm×290mm×365mm |
Installation size(mm) | 540mm×160mm×M10 |
Water-proof | IP67 |
Weight | 25KG |
Q1. Can I have a sample order for Obstruction light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q3. Do you have any MOQ limit for Obstruction light order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for Obstruction light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on Obstruction light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
