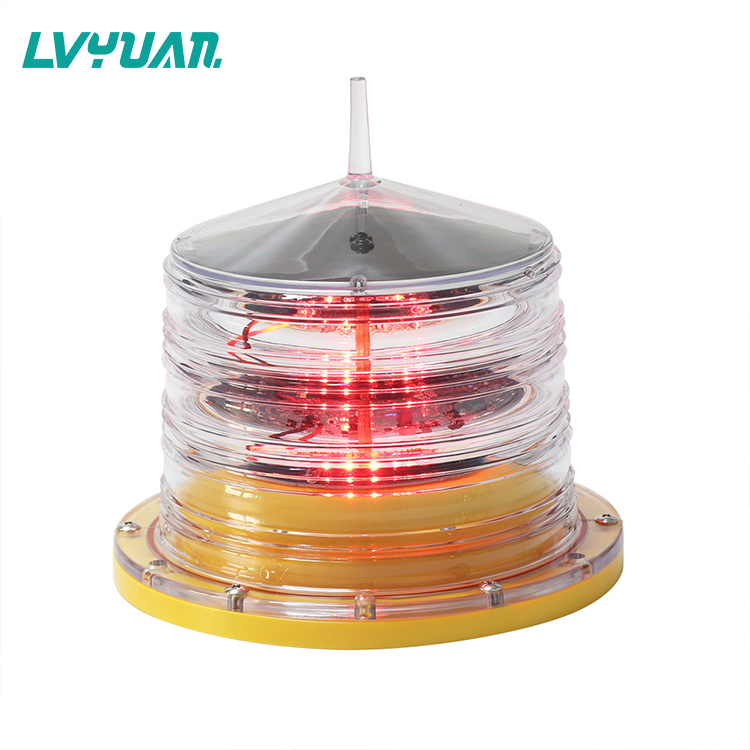

Low intensity Solar Powered Aviation Obstruction Light for Antena/Telecom GMS/ High rise building/tower crane Adopts insert solar panel whose photoelectric conversion efficiency is high to 19% integrated design, cooperate with solar dedicated lithium iron phosphate battery as power supply. Control circuit adopts micro-power consumption single chip microcomputer control chip, which can more precisecontrol the battery’s charge and discharge status.
- Type:
- Aviation Obstruction Lights
- Input Voltage(V):
- DC3.2V
- Lamp Power(W):
- 2
- Lamp Luminous Flux(lm):
- 200
- Lamp Luminous Efficiency(lm/w):
- 100
- CRI (Ra):
- 80
- Color Temperature(CCT):
- Cool White
- Beam Angle(°):
- 360
- IP Rating:
- IP68
- Certification:
- CE, FCC, RoHS
- Emitting Color:
- Red
- Lamp Body Material:
- PC
- Base Type:
- 2G11
- Light Source:
- LED
- Place of Origin:
- Guangdong, China
- Brand Name:
- Green&Source
- Quiescent Current:
- ≤50uA
- Flash Rate:
- Flashing 20-60times/minutes, steady-burning
- Transmitting Range:
- >5Km(T=0.95)
- Intensity:
- flashing≥32.5cd, steady-burning≥10cd
- Ambient Temperature:
- 100000 hours
- Battery Type:
- Replaceable lithium iron phosphate battery
- Vertical Divergence:
- 10°
- Overall Size(mm):
- 186mm(D) x 190mm(H)
- Installation Size:
- 170mm x M6
- Anti-wind Ability:
- 80m/s
- Supply Ability:
- 5000 Piece/Pieces per Month
- Packaging Details
- 8pcs/carton
- Port
- shenzhen
- Lead Time:
Quantity(Pieces) 1 - 10 11 - 50 51 - 100 >100 Est. Time(days) 3 7 12 To be negotiated
Product Details
Meanwhile, it can reduce controlling circuit ’s power consumption. Light source adopts special customized LED chip, which has the specific of high light intensity, low power consumption, long service life and so on. Lampshade adopts PC material, which can corrosion resistance, anti-UV anti-shock. The base adopts marine-grade dedicated plastic material, it can apply to seaways, bridge and chemical plant that have hostile and strong corrosive environment.
LIGHTING | ||
Effective Intensity | Flash>32.5cd, steady>10cd | |
Compliant with | FAA L810, ICAO TYPE A/B | |
Emitting Color | Red (optional: yellow amber, green blue, white) | |
Operation Mode | Adjustable Steady Burning / Flash Pattern | |
Vertical Divergence | >10° | |
Horizontal Out-put | 360° | |
Light source | LED | |
Light lifespan | >100,000 Hours |
POWER | ||
Solar panel | 2W,5.5V | |
Battery | 3.2V3Ah, lithium iron phosphate battery | |
Power consumption | ≤2W |
STRUCTURE | ||
Lens | Polycarbonate, UV Stabilize, Corrosion Resistance | |
Base | marine-grade dedicated plastic material | |
Temperature Range | -40℃~70℃ | |
Wind Load | >80m/s | |
Overall size(mm) | 186mm(D)×190mm(H) | |
Installation size(mm) | ¢170mm×M6 | |
Water-proof | IP68 | |
Net Weight | 1.2KG |
Q1. Can I have a sample order for Obstruction light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q3. Do you have any MOQ limit for Obstruction light order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for Obstruction light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on Obstruction light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
