- Type:
- Aviation Obstruction Lights
- Input Voltage(V):
- AC220V
- Lamp Power(W):
- 20
- Lamp Luminous Flux(lm):
- 100%
- Lamp Luminous Efficiency(lm/w):
- 124
- CRI (Ra):
- 222
- Color Temperature(CCT):
- Pure White
- Beam Angle(°):
- 360
- IP Rating:
- IP65
- Certification:
- CE, FCC, RoHS
- Emitting Color:
- White
- Lamp Body Material:
- PC
- Base Type:
- 2G11
- Light Source:
- LED
- Place of Origin:
- Guangdong, China
- Brand Name:
- Green Source
- Working Mode:
- Steady-burning
- Intensity:
- ≥3500cd
- Light Source Service Life:
- ≥10years
- Overall Size:
- D220mm x312mm
- Installation Size:
- 100mm xM10
- Ambient Temperature:
- -20℃~60℃
- Weight:
- 3.5KG
- Humidity:
- <95%
- Altitude:
- <4500M
- Supply Frequency:
- 50HZ~60HZ
- Supply Ability:
- 2000 Set/Sets per Month
- Packaging Details
- as order
- Port
- Shenzhen
Product Details

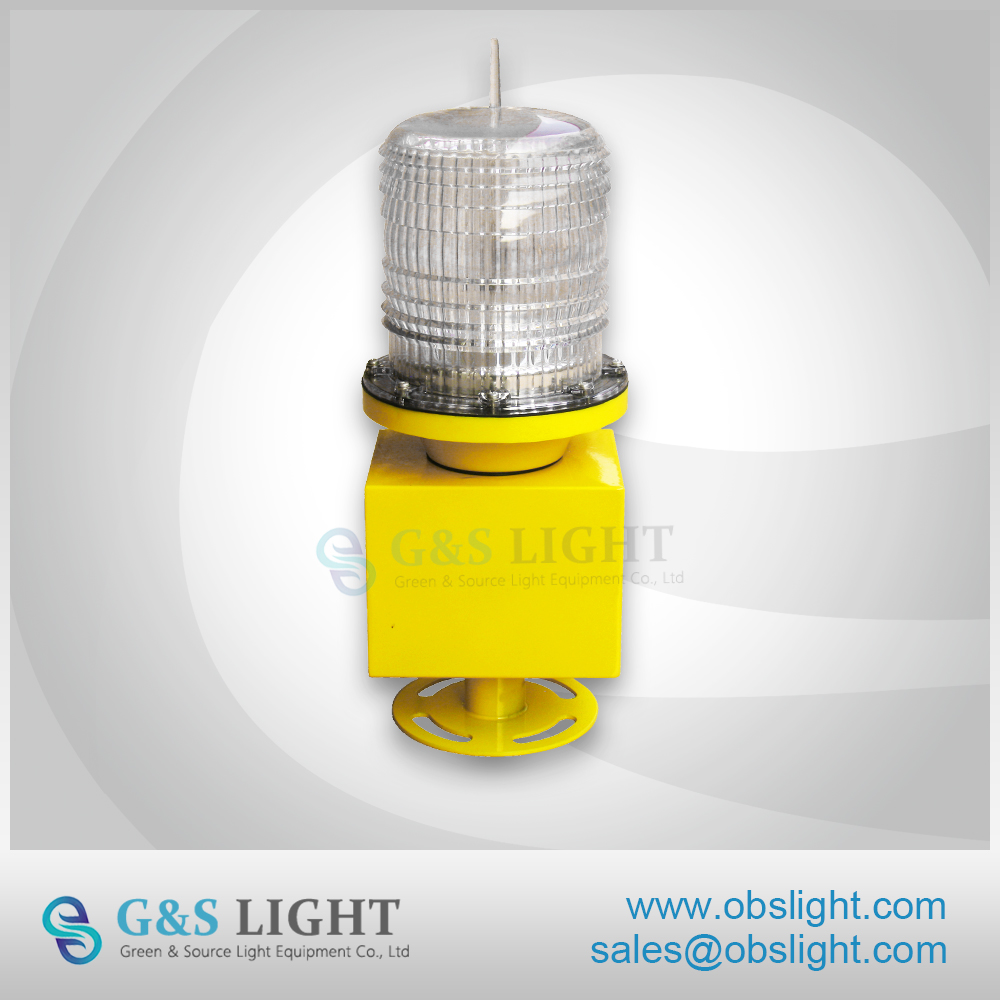

Helipad Approach Light Adopts SUS 304 stainless steel material, the product has the advantage of light weight and corrosion resistance. This product ‘s light resource is optional, LED and Xenon lamp, lampshade adopts PC material, which can corrosion resistance, anti-UV, anti-shock; controlling circuit has strong ability of anti-shock and with anti-surge protection device, which can adapt to extremely bad working environment.
Name | Parameter |
Model | GS-HP/LS |
Power Supply | AC220V |
Power Consumption | ≤20W |
Supply Frequency | 50HZ~60HZ |
Working Mode | Flashing |
Light Intensity | ≥3500cd |
Light Source Service Life | ≥10years |
Emitting Color | White |
Overall Size | 200mm×200mm×410mm |
Installation Size | ¢100mm×M10 |
IP Protection | IP65 |
Ambient Temperature | -20℃~60℃ |
Weight | 2.4KG |
Humidity | <95% |
Altitude | <4500M |
Wind Load | 80m/s |
Standardization of optical design, high photoelectric conversion efficiency.
Provide the function of flashing orderly.
With work stability, strong anti-interference ability and shock resistance.
Full sealed structure, excellent water proof characteristic.
With the anti-surge protection device.
The shell adopts SUS304 stainless steel material, which has the advantage of light weight and corrosion resistance.
Easy to fold design, can reduce the secondary damage to helicopters effectively.
Arc adjustable design in chassis mounting holes, easy to install.
PC material cover, provides corrosion resistance and UV protection.
