Home > Products > FAA Standard heliport runway Inset Centerline Light / helipad light /runway edge light

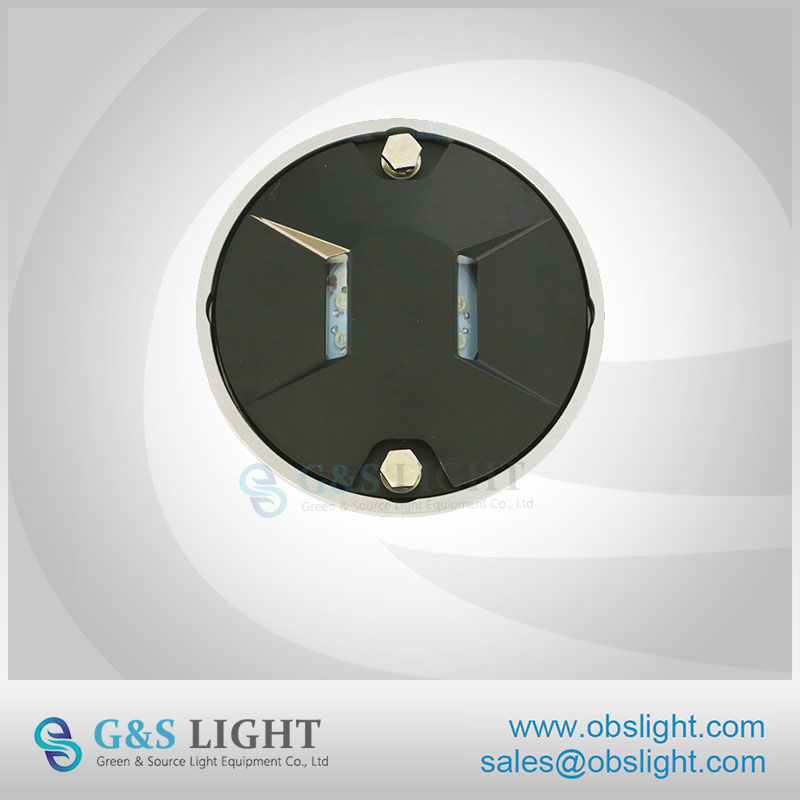

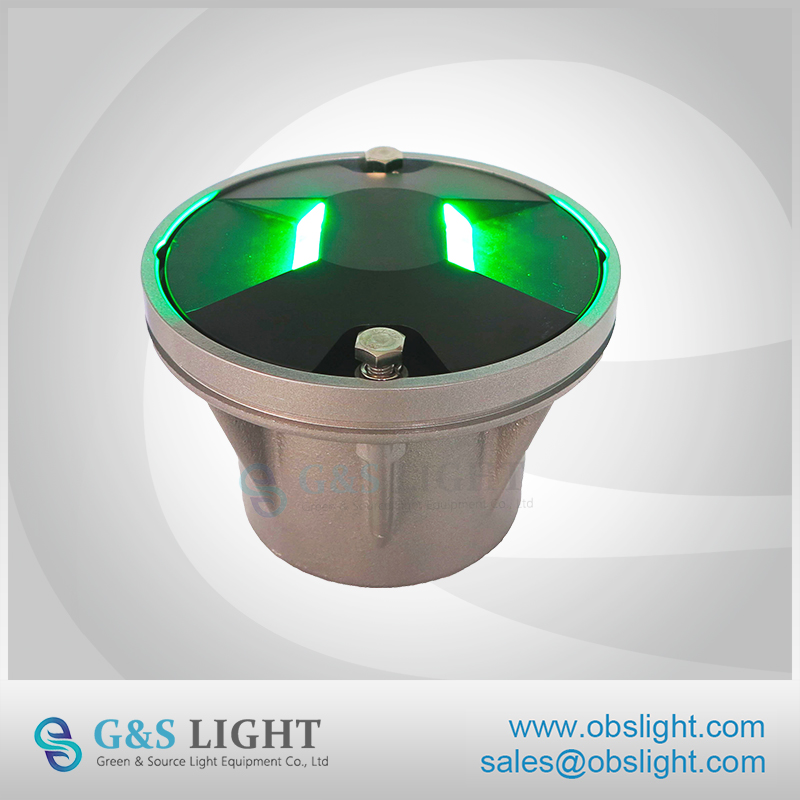

FAA Standard heliport runway Inset Centerline Light / helipad light /runway edge light
Click on the image to view the original image
Product: views:7FAA Standard heliport runway Inset Centerline Light / helipad light /runway edge light
Branch: Green Source
Type: Aviation Obstruction Lights
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-16 15:43
  Negotiated
Product Details
Overview
Quick Details
Type:
Aviation Obstruction Lights
Input Voltage(V):
AC220V, AC120V, DC48V
Lamp Power(W):
10
Lamp Luminous Flux(lm):
1000
Lamp Luminous Efficiency(lm/w):
100
CRI (Ra):
80
Color Temperature(CCT):
Cool White
Beam Angle(°):
180
IP Rating:
IP66
Certification:
CE, FCC, RoHS
Emitting Color:
Green
Lamp Body Material:
Aluminum Alloy
Base Type:
2G11
Light Source:
LED
Place of Origin:
Guangdong, China
Brand Name:
Green Source
Supply Frequency:
50HZ~60HZ
Working Mode:
Steady-burning
Max Intensity:
≥200cd
Light Source Service Life:
≥20 years
Overall Size:
194mm(D)x140mm(H)
Minimum Embedded Pit Size:
194mmx146mm
Ambient Temperature:
-40℃~60℃
Net Weight:
4.5Kg
Humidity:
<95%
Altitude:
<4500M
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
4pcs/ctn
Port
shenzhen
Lead Time:
Quantity(Pieces)1 - 12 - 2021 - 50 >50
Est. Time(days)51020To be negotiated
Product Description

Product Details

FAA Standard heliport runway Inset Centerline Light / helipad light /runway edge light Heliport inset taxiway center lines light shell adopts aluminum gravity casting, it's good at waterproof and heat dissipation. The inner adopt LED light source and cooperate with advanced optical glass design, emitting angle meet FAA standard. This product can provide taxiway center line indicate for heliport and airport, it can send out green steady both direction burning light signal at night or during low visibility daytime, which can clearly indicate the location of taxiway center line.

Specification
Description
Parameter
Mode
GS-HP/TC
Standard
ICAO
Light Intensity
200cd
Flash Rate
Steady Burning
Light Source
LED
Service Life of LED
≥100,000 Hours
Operating Voltage
AC220V (Optional: DC48V, AC110V, AC120V)
Power Consumption
10W
Overall Size(mm)
Φ194mm(D)×140mm(H)
Installation Size(mm)
¢199mm×145mm
Material
Base: Die-casting Aluminum
Weight
4.5Kg
Emitting Color
Green
Ambient Temperature
-40℃~70℃
Wind Load
80m/s
Protection Standard
IP68
Features

Adopt the high quality of thermal conductivity of aviation aluminum weight casting it can provides excellent cooling environment for LED light source.

With work stability, strong anti-interference ability and shock resistance.

Full sealed structure base, with superior waterproof performance.

With the anti-surge protection device.

Adopt independent encapsulation of high-power LED light source, which has the specific of high light brightness, long service life.

Shielding sealed power supply, with excellent waterproof and anti-jamming.

Structure Drawing
Applications
Related Products
FAQ

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application.
    Secondly We quote according to your requirements or our suggestions.
    Thirdly customer confirms the samples and places deposit for formal order.
    Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 2-5 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
