Home > Products > 6-10NM LED solar marine lantern for buoy

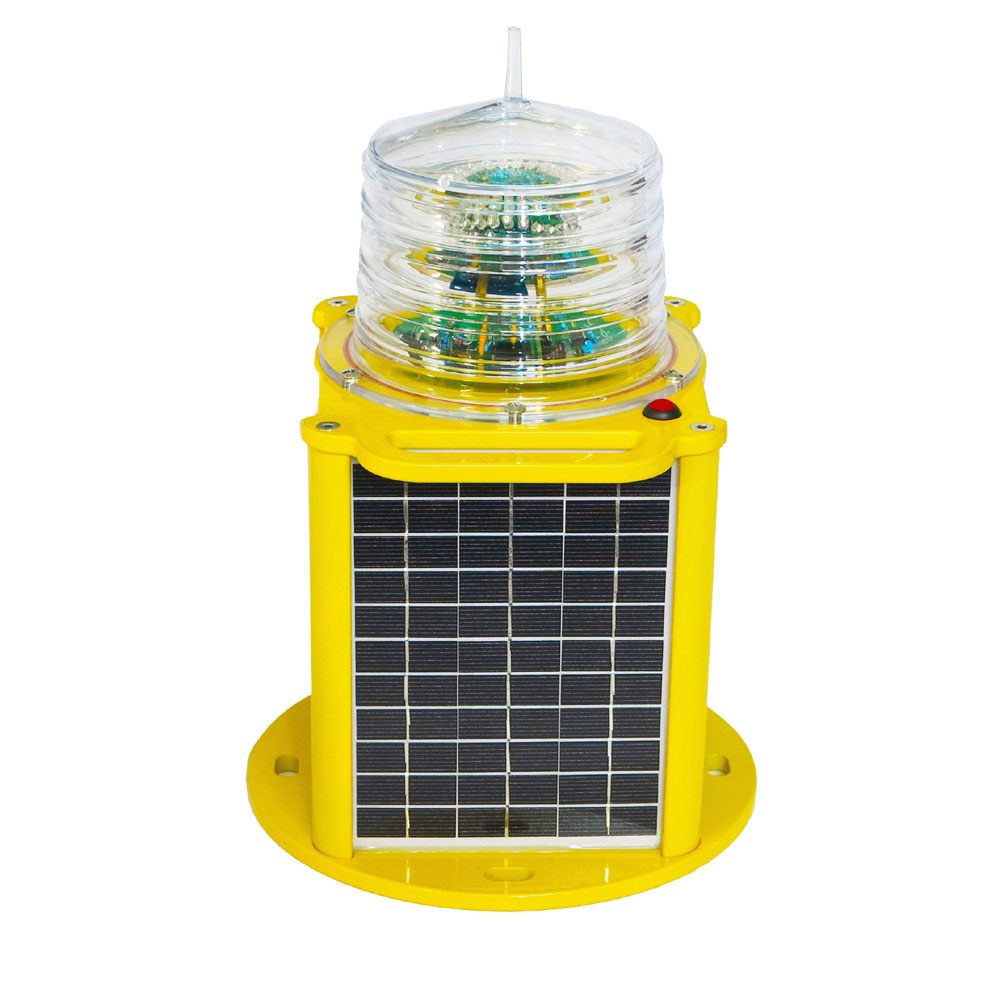

6-10NM LED solar marine lantern for buoy
Click on the image to view the original image
Product: views:66-10NM LED solar marine lantern for buoy
Branch: Green Source
Type: Aviation Obstruction Lights
Size: 33X33X49 cm
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-16 15:43
  Negotiated
Product Details
Overview
Quick Details
Type:
Aviation Obstruction Lights
Input Voltage(V):
DC12V
Lamp Power(W):
6
Lamp Luminous Flux(lm):
1100
Lamp Luminous Efficiency(lm/w):
100
CRI (Ra):
1000
Color Temperature(CCT):
Cool White
Beam Angle(°):
360
IP Rating:
IP68
Certification:
CE
Emitting Color:
Green
Lamp Body Material:
Aluminum Alloy
Base Type:
AR111
Light Source:
LED
Place of Origin:
Guangdong, China
Brand Name:
Green Source
Power Supply:
Mono-crystalline silicon solar panel
Battery Capacity:
12V12AH
Visible Range:
1-10miles
Ambient Temperature:
300±100LUX
Continuous Light-emitting Ttime:
>15days (10 hours a day)
Light Source Service Life:
>100000 hours
Optional Emitting Color:
white red,amberyelow,green,blue,white red
Horizontal Out-put:
360°
Overall Size:
260mm x440mm
Installation Size:
260x260x M10

Packaging & Delivery

Selling Units:
Single item
Single package size:
33X33X49 cm
Single gross weight:
8.0 kg
Package Type:
1PCS/CTN
Lead Time:
Quantity(Set)1 - 12 - 2021 - 50>50
Est. Time(days)31520To be negotiated
Product Description

Product Details

 GS-ML/D  buoy light / buoy lanterns for marine navigation used advanced structure design, adopts 4 groups of solar panels which can angle adjustable and high efficiently, co-operate with solar dedicated battery as power supply.Advanced power management system will be used to charge the power in a comprehensive protection in order to save the service life ofbattery when it is under the condition of short-voltage or over-voltage or its temperature is too high or too low.

The control circuit adopts the micro power control chip, which effectively reduces the static power consumption of the circuit.
Its shell is die casting with aviation aluminum ,this material has the specific of light weight and corrosion resistance ,which can reduce the weight of light equipment, it is very convenient for installation and transportation.
Lampshade adopt with PC material, which can resist corrosion ,anti-UV, anti-shock an so on.

Specification
Name
Parameter
Type
GS-ML/C
Power Supply
Mono-crystalline silicon solar panel
Solar panel voltage
16.5V
Battery Capacity
12V12AH
Power Consumption
≤6W
Visible Range
6-10 NM
Light Source
LED
Working temperature
-20℃~60℃
Storage Temperature
-40℃~70℃
Weight
7.1kg
Continuous Light-emitting Ttime
>15days (10 hours a day)
Light Source Service Life
>100000 hours
Optional Emitting Color
Red,amber yellow, green,blue,white
Solar panel power
6W x 4pcs
Battery Type
Sealed Lead Acid Battery
Vertical Divergence
>7°
Horizontal Out-put
360°
Overall Size
¢260×420mm
Installation Size
Pitch circle 220 mm distributed 4M12 holes
Anti-wind Ability
80m/s
Working mode
256 light characteristics
Sun Switch Illuminance Threshold
300LUX±100LUX
IP standard
IP68
Features

Continuous working time in rainy day can reach more than 15 days. (10 hours a day)

Photocell can switch ON/OFF the light in rainy days or at night automatically.

Standardization of optical design, high photoelectric conversion efficiency.

Special LED chips for aviation obstruction lights, conversion efficiency is much higher than other general LED

Provide ability of lightning protection, light fastness, resist snow and rain.

Base on LED technology, its color meet the ALA Recommendations E-200-1 requirement.

Bird spike against bird drop.

No radio frequency (RF), no electromagnetic interference.

Optional GPS, remote control


6-10NM visual range adjustable.
