Home > Products > 5NM range solar Marine lantern / marine LED light for buoys

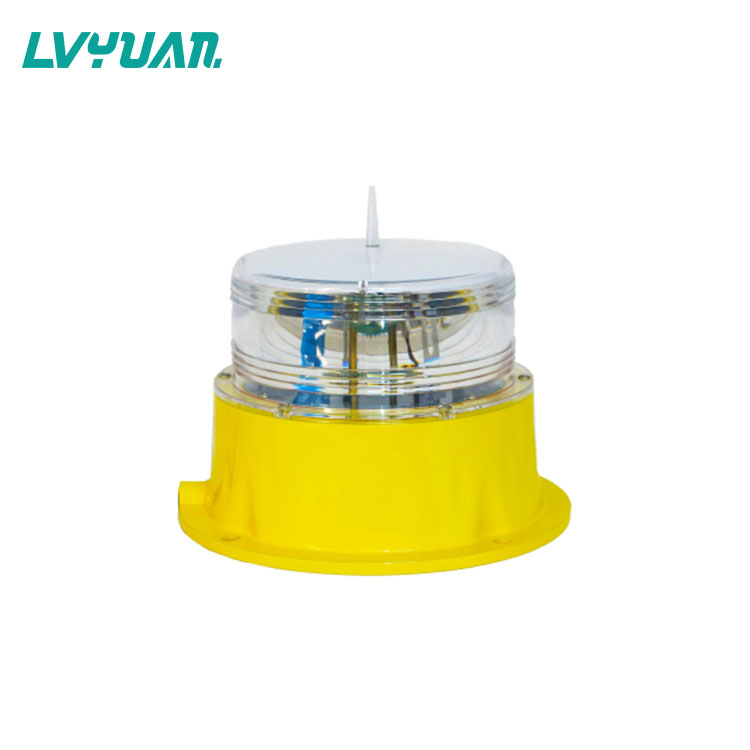

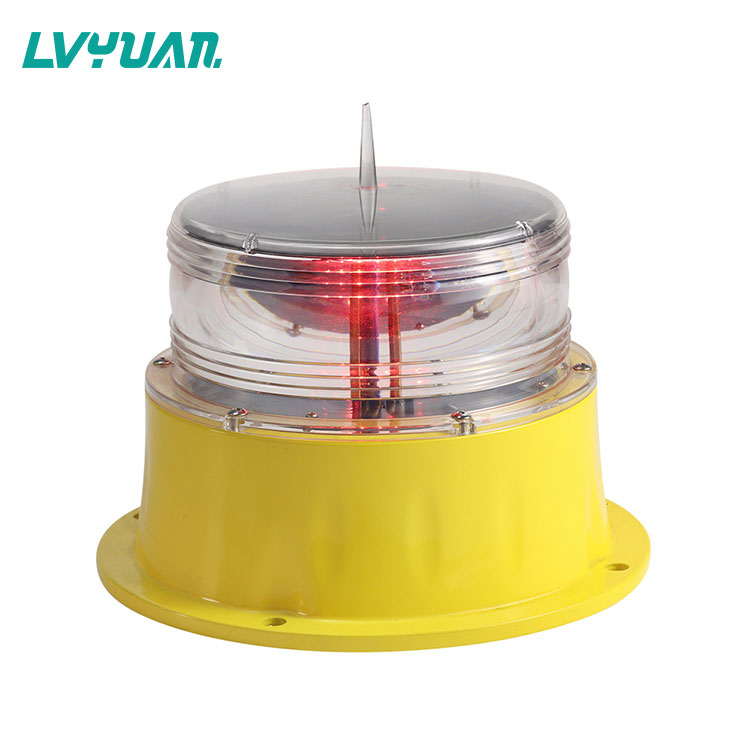

5NM range solar Marine lantern / marine LED light for buoys
Click on the image to view the original image
Product： views：65NM range solar Marine lantern / marine LED light for buoys
Branch： Green Source
Type： lantern
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 15:43
  Negotiated
Product Details
Overview
Quick Details
Lighting Period (h):
>12
Color Temperature(CCT):
COOL WHITE
IP Rating:
IP68
Input Voltage(V):
DC6.4
Lamp Luminous Efficiency(lm/w):
100
Lamp Luminous Flux(lm):
1000
Lamp Power(W):
10
CRI (Ra):
80
Place of Origin:
Guangdong, China
Type:
lantern
Power Source:
DRY BATTERY
Battery Type:
Lithium Metal
Brand Name:
Green Source
Certification:
ce, FCC, RoHS
Usage:
Emergency
Light Source:
LED
Power Supply:
Mono-crystalline silicon solar panel
Battery Capacity:
6.4V6AH
Power Consumption:
≤10W
Visible Range:
1~4 mile(s)
Ambient Temperature:
-40℃~70
Weight:
2kg
Continuous Light-emitting Time:
>15days (10 hours a day)
Light Source Service Life:
>100000 hours
Optional Emitting Color:
Red, amber yellow, green, blue, white
IP Standard:
IP68
Supply Ability
Supply Ability:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
box/carton
Port
Shenzhen
Lead Time:
Quantity(Sets)1 - 23 - 20 >20
Est. Time(days)210To be negotiated

Product Details

1-4 NM Marine warning light / solar marine LED lanterns / solar beacon lanterns Adopts aluminum alloy stoving varnish structure, this material have specific of light weight and corrosion resistance.
Light source adopts independent research and development of LED chips encapsulation, which has the specific of high light intensity low power consumption, long service life and so on.
Lampshade adopts with PC material, it can resist corrosion, anti-UV, anti-shock.

Control circuit has strong lightning protection ability, with anti surge protective device that can apply to bad working environment.

Specification

LIGHTING
Visual Range
1-5NM
Compliant With
IALA
Emitting Color
Red, Green, Yellow, Blue, White
Operation Mode
256 flash characteristics
Vertical Divergence
>8°
Horizontal Out-put
360°
Light Source
LED
Light Lifespan
>100,000 Hours
POWER SUPPLY
Solar Panel
2.5w, 9v
Battery
6.4v 6Ah, Lithium Iron Phosphate Battery
Power Consumption
≤3w
Solar Panel Lifespan
>20 Years
STRUCTURE
Lens
Polycarbonate, UV Stabilize, Corrosion Resistance
Body
Aircraft  Aluminum, Die-casting
Temperature Range
-40°C~70°C
Wind Load
>80m/s
Overall Size(mm)
Φ255 by 210
Installation  Size(mm)
Φ234mm x M8
Water-proof
IP68
Weight
>3.5KG

Features

1.    Up to 5 nautical miles.
2.    Based on LED technology, and its color complies to IALA Recommendations E 200-1. 3.
3.    Bird spike against bird drop.
4.    Comprehensive protection is short-voltage, over-voltage, floating charge.
5.    International-advanced cold and special LED with low power consumption, high brightness and service life of light source reaching 100,000 hours.
6.    Strong corrosion resistance, rain and snow, shock and vibrations protection and UV protection.
7.    Clean, renewable, green and reliable energy source.
8.    Dusk-to-dawn operation: photocell, light can work at night automatically by photocell.
9.    At least 7 days autonomy without sunshine (optional: 20 days).
10.  Recyclable batteries with the lightest environmental.
11.  IP68 protection standard, full sealing structure.

Options

1. GPS synchronous.


2. 256 user adjustable IALA flash characters.



3. Remote controller.



4. Emitting color (optional): red, white, green, yellow.
