Home > Products > IALA integrated solar buoy Navigation Led Underwater Solar Marine Light

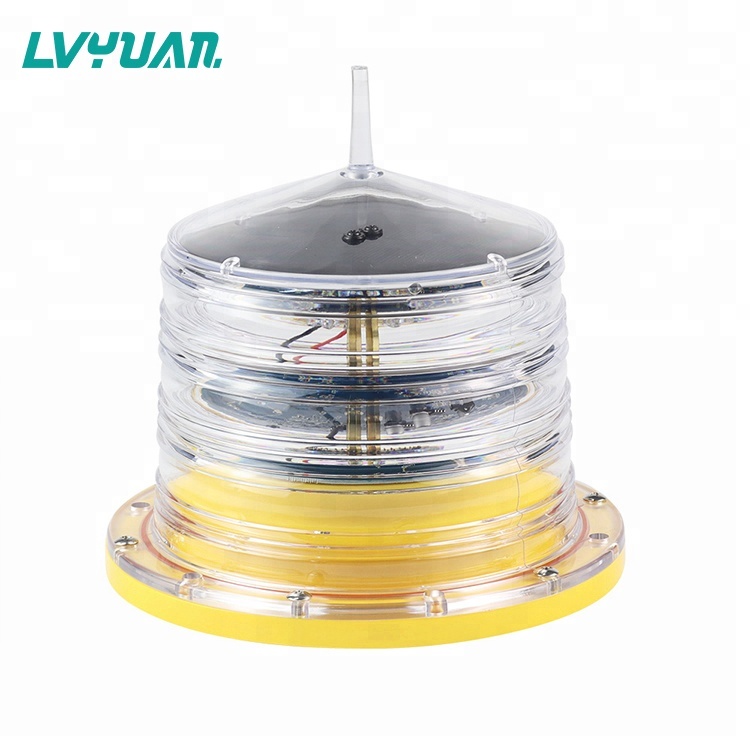

IALA integrated solar buoy Navigation Led Underwater Solar Marine Light
Click on the image to view the original image
Product: views:11IALA integrated solar buoy Navigation Led Underwater Solar Marine Light
Branch: Green Source
Type: buoy lantern
Size: 22X22X22 cm
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-16 15:43
  Negotiated
Product Details
Overview
Quick Details
Lighting Period (h):
>12
Color Temperature(CCT):
COOL WHITE
IP Rating:
IP68
Input Voltage(V):
3.2
Lamp Luminous Efficiency(lm/w):
1000
Lamp Luminous Flux(lm):
10000
Lamp Power(W):
3
CRI (Ra):
100
Place of Origin:
Guangdong, China
Type:
buoy lantern
Power Source:
Solar
Battery Type:
Lithium Ion
Brand Name:
Green Source
Certification:
ce, RoHS
Usage:
Emergency
Light Source:
LED
Power Supply:
Class A high efficient solar panel
Battery Capacity:
>3.2V3.3H
Power Consumption:
≤1W
Visible Range:
1~4 mile(s)
Ambient Temperature:
-40℃~70
Weight:
1.2kg
Continuous Light-emitting Time:
>15days (10 hours a day)
Light Source Service Life:
>100000 hours
Optional Emitting Color:
Red, amber yellow, green, blue, white
IP Standard:
IP68

Packaging & Delivery

Selling Units:
Single item
Single package size:
22X22X22 cm
Single gross weight:
1.0 kg
Package Type:
1set/ctn
Picture Example:
package-img
Lead Time:
Quantity(Set)1 - 1011 - 3031 - 100>100
Est. Time(days)3715To be negotiated

Product Detail

IALA integrated solar buoy light / IP68 sea marine lantern / sea navigation light Adopts insert solar panel whose photo electric conversion efficiency is high to 19% integrated design, cooperate with solar dedicated lithium iron phosphate battery as power supply. Control circuit adopts micro-power consumption single chip controlling chip, which can control battery"s charge and discharge statue.

Meanwhile, it can reduce controlling circuit"s power consumption. Light source adopts high efficient LED chip, which has specific of high light intensity, low power consumption, long service life and so on.

Lampshade adopts PC material, which can corrosion resistance, anti-uv anti-shock. The base adopts marine-grade dedicated plastic material, it can apply to seaways and chemical plant that have hostile and strong corrosive environment.

Specification

LIGHTING
Visual Range
1-4NM adjustable
Compliant With
IALA
Emitting Color
Red, White, Green, Blue, Yellow
Operation Mode
Flashing/Steady Burning
Vertical Divergence
>8°
Horizontal Out-put
360°
Light Source
LED
Feature function
256 flash characteristics
Light Lifespan
>100,000 Hours
POWER SUPPLY
Solar Panel
2W, 5.5V
Battery
3.2V 3.2AH, Lithium Iron Phosphate Battery
Power Consumption
≤1W
Solar Panel Lifespan
>20 Years
STRUCTURE
Lens
Polycarbonate, UV Stabilize, Corrosion Resistance
Body
Aircraft Aluminum, Die-casting
Temperature Range
-40°C~70°C
Wind Load
>80m/s
Overall Size(mm)
186 by 190
Installation Size(mm)
170 by M6
Water-proof
IP68
Weight
>1.2KG

Features

1.    Up to 4 nautical miles.Optional adjustable 1-4 NM
2.    Based on LED technology, and its color complies to IALA Recommendations E 200-1..3.
3.    Bird spike against bird drop.
4.    Comprehensive protection is short-voltage, over-voltage, floating charge.
5.    International-advanced cold and special LED with low power consumption, high brightness and service life of light source reaching 100,000 hours.
6.    Strong corrosion resistance, rain and snow, shock and vibrations protection and UV protection.
7.    Clean, renewable, green and reliable energy source.
8.    Dusk-to-dawn operation: photocell, light can work at night automatically by photocell.
9.    At least 7 days autonomy without sunshine(optional: 20 days).
10.  Recyclable batteries with the lightest environmental.
11.  IP68 protection standard, full sealing structure.
12.Optional GPS sync flash
13. Optional adjustable 256 flash characteristics


Structure Drawing

Related Products

Our Company



Exhibition

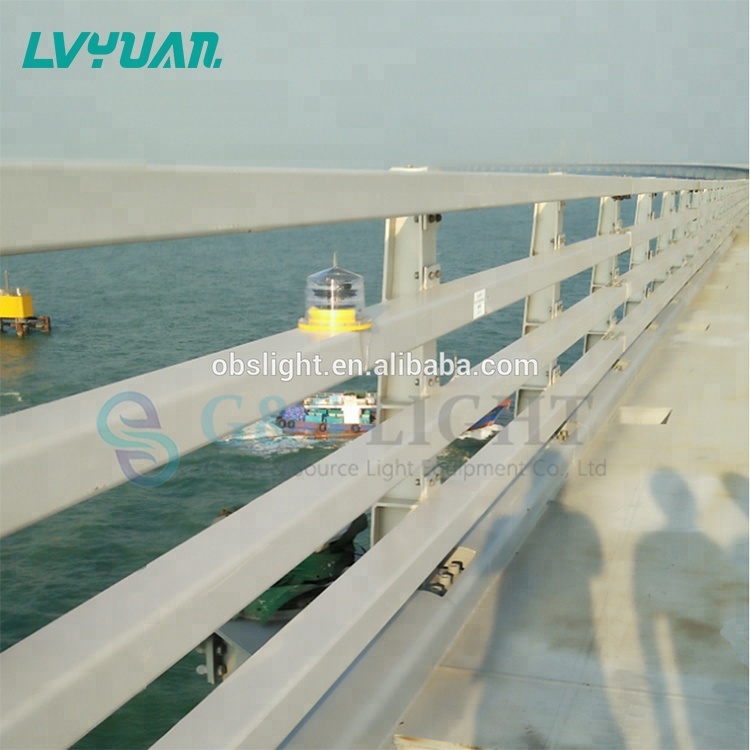

Application

FAQ
Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?

A:  Firstly let us know your requirements or application.
     Secondly We quote according to your requirements or our suggestions.
     Thirdly customer confirms the samples and places deposit for formal order.
     Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 2-5 years warranty to our products.

Q8: How to deal with the faulty?

A:  Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
     Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
