High Aviation Solar Obstruction Obstacle Led Grow Light Intensity Sensor Emergency Light
Click on the image to view the original image
Product： views：6High Aviation Solar Obstruction Obstacle Led Grow Light Intensity Sensor Emergency Light
Branch： Green Source
Type： Aviation Obstruction Lights
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 15:43
  Negotiated
Product Details
Overview
Quick Details
Type:
Aviation Obstruction Lights
Input Voltage(V):
AC220V.AC120V,AC110V,DC48V
Lamp Power(W):
15
Lamp Luminous Flux(lm):
1500
Lamp Luminous Efficiency(lm/w):
100
CRI (Ra):
80
Color Temperature(CCT):
Cool White
Beam Angle(°):
360
IP Rating:
IP65
Certification:
CE, RoHS
Emitting Color:
Red, red
Lamp Body Material:
Aluminum Alloy
Base Type:
BA15d
Light Source:
LED
Place of Origin:
Guangdong, China
Brand Name:
Green Source
FAAStandard:
L-864
Light intensity:
1600cd(more or less 25 percent)
Operating voltage:
AC220V (option voltage,.AC120V,AC110V,DC48V)
Power Supply Frequency:
50HZ~60HZ
Average Power Consumption:
≤15W
Flash rate:
Flashing 20 times/min
Continuous working time:
200ms
Horizontal Out-put:
360°
Vertical Divergence:
>3°
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
4pcs/carton
Port
shenzhen
Lead Time:
Quantity(Sets)1 - 12 - 2021 - 50 >50
Est. Time(days)3712To be negotiated
High Aviation Solar Obstruction Obstacle Led Grow Light Intensity Sensor Emergency Light

Product Details

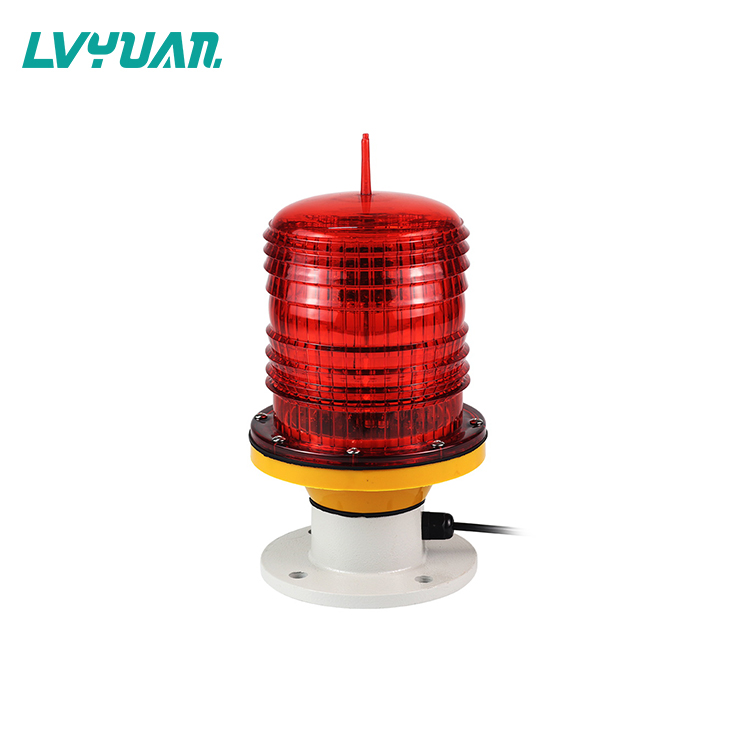

LED ICAO Medium Intensity Type B Red Aviation Obstruction Light Its base is caste by aviation aluminum with full sealed structure. Light source adopts special aviation obstruction light LED chip, it has high light intensity, low power consumption, long service life. Lamp shade adopts PC material, which has strong ability of corrosion, anti-UV, anti-shock. Controlling circuit has strong ability of shock resistance and with anti-surge protection device, it can adapt to extremely bad working environment.

LIGHTING
Effective Intensity
1600cd
Compliant with
FAA L864, ICAO Medium TYPE B
Emitting Color
Red (optional: yellow amber, green blue, white)
Operation Mode
Flash Pattern
Vertical Divergence
>3°
Horizontal Out-put
360°
Light source
LED
Light lifespan
>100,000 Hours
POWER SUPPLY
Operating Voltage
AC220V/230V (default), optional: (AC120V,AC110V,DC48V)
Power consumption
≤15W
STRUCTURE
Lens
Polycarbonate, UV Stabilize, Corrosion Resistance
Body
Aircraft Aluminum, Die-casting
Temperature Range
-40℃~60℃
Wind Load
>80m/s
Overall size(mm)
158mm(D)×285mm(H)
Installation size(mm)
φ119 X M8
Water-proof
IP65
Weight
3KG

Related Products
Our Company



Exhibition



Application



FAQ

Q1. Can I have a sample order for Obstruction light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.

Q3. Do you have any MOQ limit for Obstruction light order?

A: Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for Obstruction light?

A: Firstly let us know your requirements or application.
     Secondly We quote according to your requirements or our suggestions.
     Thirdly customer confirms the samples and places deposit for formal order.
     Fourthly We arrange the production.

Q6. Is it OK to print my logo on Obstruction light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 2-5 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
