- Type:
- Aviation Obstruction Lights
- Input Voltage(V):
- AC85~260V
- Lamp Power(W):
- 30
- Lamp Luminous Flux(lm):
- 252
- Lamp Luminous Efficiency(lm/w):
- 12
- CRI (Ra):
- 225
- Color Temperature(CCT):
- Cool White
- Beam Angle(°):
- 120 Degree
- IP Rating:
- IP65
- Certification:
- CE, FCC, RoHS
- Emitting Color:
- White
- Lamp Body Material:
- Aluminum Alloy
- Base Type:
- 2G11
- Light Source:
- LED, LED
- Place of Origin:
- Guangdong, China
- Brand Name:
- Green&Source
- Supply Frequency:
- 50HZ~60HZ
- Working Mode:
- Steady-burning
- Luminous Flux:
- ≥3240~3600Lm
- Overall Size:
- 255mmX 185mmX130mm
- Ambient Temperature:
- -20℃~65℃
- Weight:
- 3.5kg
- Connection Mode:
- External connection
- Supply Ability:
- 10000 Piece/Pieces per Month
- Packaging Details
- 4 pcs /ctn
- Port
- shenzhen
- Lead Time:
Quantity(Sets) 1 - 10 >10 Est. Time(days) 7 To be negotiated
Product Details

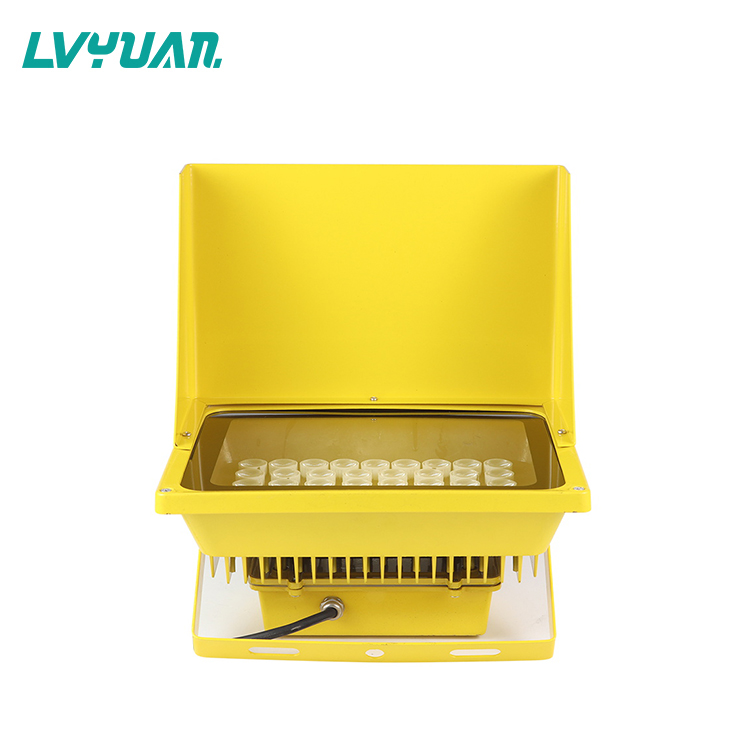

GS-HP/F Flood light adopts full sealed aluminum shell. Protection standard is IP68. Light source uses LED with high-efficiency and low attenuation, which has illumination uniformity angle. This kind of flood light is professional used at heliport .
Type | Parameter |
Type | GS-HP/F |
Power Supply | AC85~260V |
Supply Frequency | 50HZ~60HZ |
Power Consumption | 50W |
Light Source | LED |
Working Mode | Steady burning |
Luminous Flux | ≥8000~10000Lm |
Emitting Color | White |
Overall Size | 310mm×285mm×235mm |
IP Protection | IP68 |
Ambient Temperature | -45℃~85℃ |
Weight | 3.5kg |
Connection Mode | External connection |
Full sealed structure base, with superior waterproof performance.
With work stability, strong anti-interference ability and shock resistance.
With the anti-surge protection device.
Professional custom LED chips, with high light brightness and long service life.
Adopts constant current as power supply, stable working, No RF interference.
Adopts the toughened glass smooth, provides corrosion resistance and UV protection.
Q1. Can I have a sample order for Obstruction light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q3. Do you have any MOQ limit for Obstruction light order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for Obstruction light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on Obstruction light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
