- Type:
- Aviation Obstruction Lights
- Input Voltage(V):
- AC220V.AC120V,AC110V,DC48V)
- Lamp Power(W):
- 20
- Lamp Luminous Flux(lm):
- 2000
- Lamp Luminous Efficiency(lm/w):
- 100
- CRI (Ra):
- 80
- Color Temperature(CCT):
- Cool White
- Beam Angle(°):
- 360
- IP Rating:
- IP65
- Certification:
- CE, RoHS
- Emitting Color:
- Red
- Lamp Body Material:
- Aluminum Alloy
- Base Type:
- AR111
- Light Source:
- LED
- Place of Origin:
- Guangdong, China
- Brand Name:
- Green Source
- FAAStandard:
- L-864 ICAO Annex 14
- Light intensity::
- 2000cd(more or less 25%)
- Power Supply Frequency:
- 50HZ~60HZ
- Working way:
- Day and Night
- Flash rate:
- Flashing 20~40 times/min
- Light source::
- Big power and High brightness LED
- Operating voltage:
- AC120V,AC110V,DC48V
- Horizontal Out-put:
- 360°
- Vertical Divergence:
- >10°
- IP Protection:
- IP68
- Supply Ability:
- 1000 Set/Sets per Month
- Packaging Details
- 1pc/ctn
- Port
- shenzhen
- Lead Time:
Quantity(Sets) 1 - 10 11 - 50 51 - 100 >100 Est. Time(days) 3 10 15 To be negotiated
Product Details

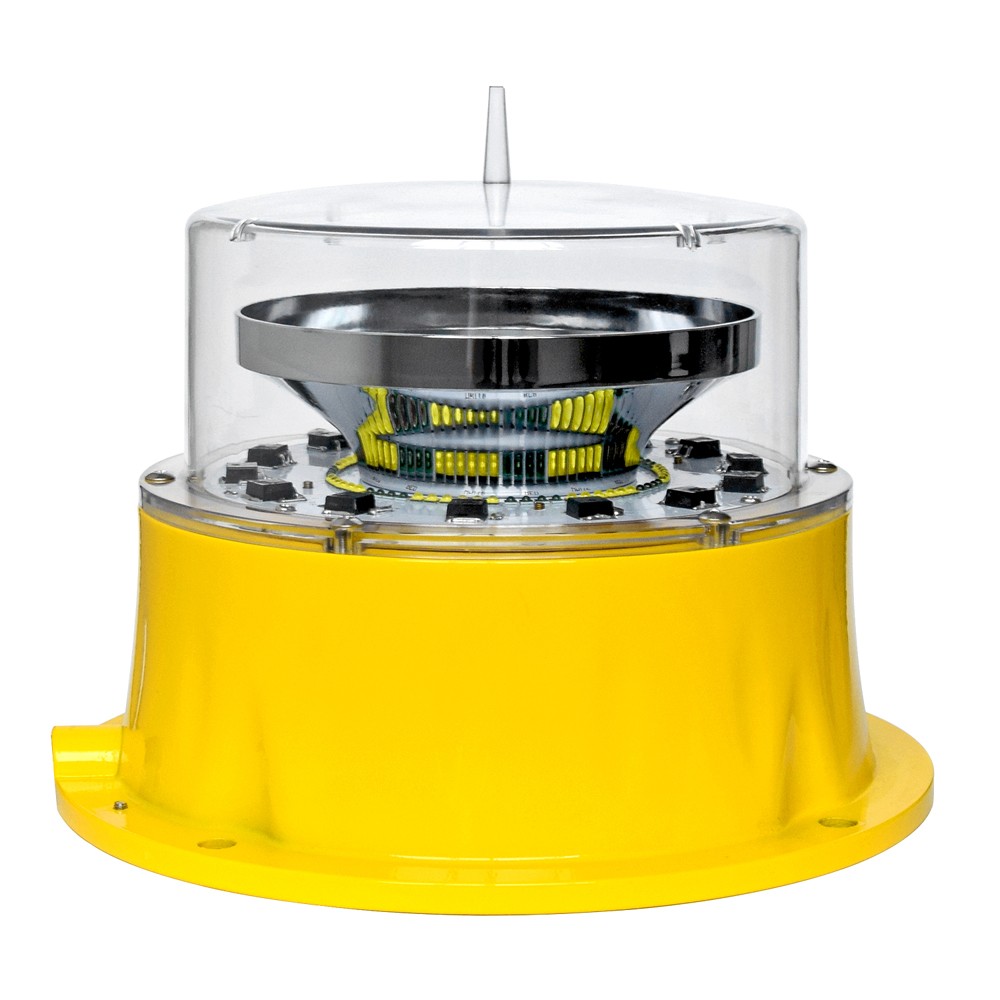

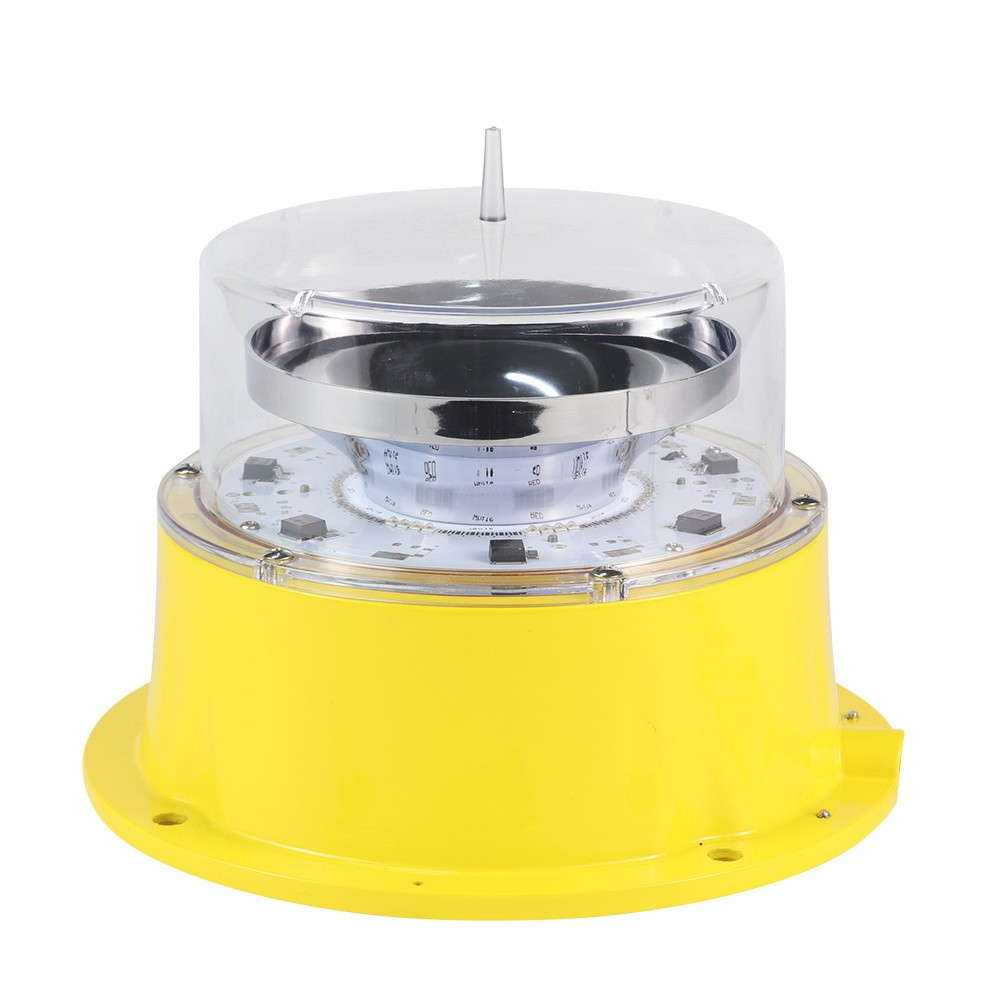

China Factory IP67 Aviation light system, Medium Intensity Light Aviation
Its base is caste by high intensity aviation aluminum with full sealed structure;Light source adopts high efficient CREE chip that cooperate with independent researching and developing optical system, which has the high light intensity, low power consumption, long service life, lamp shade adopts Boron silicate glass materials, which has strong ability of corrosion, anti-UV, anti-shock; Controlling circuit has strong ability of lighting protection and with anti-surge protection device, it can adapt to extremely bad working environment.
LIGHTING | |
Effective Intensity | 2000cd (±25%) |
Compliant with | FAA L 864 /865 |
Emitting Color | red at night, white at daytime |
Operation Mode | White light:flash 40 times/min; red light:flash 20~40 times/min |
Vertical Divergence | ≥3° |
Horizontal Out-put | 360° |
Light source | LED |
POWER SUPPLY | |
Operating Voltage | AC 180V-264 V optional: (AC120V,AC110V,DC48V) |
Power consumption | ≤20W |
power frequency | 50-60HZ |
STRUCTURE | |
Housing | Borosilicate glass |
Body | Aircraft Aluminum, Die-casting |
Temperature Range | -40℃~70℃ |
Wind Load | >80m/s |
Overall size(mm) | Φ255 by 210 |
Installation size(mm) | Φ234 by M8 |
Water-proof | IP68 |
Weight | 5.5KG |
Q1. Can I have a sample order for Obstruction light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q3. Do you have any MOQ limit for Obstruction light order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for Obstruction light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on Obstruction light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
