Home > Products > IP68 Medium Intensity Tower Light Aviation Obstruction Lights

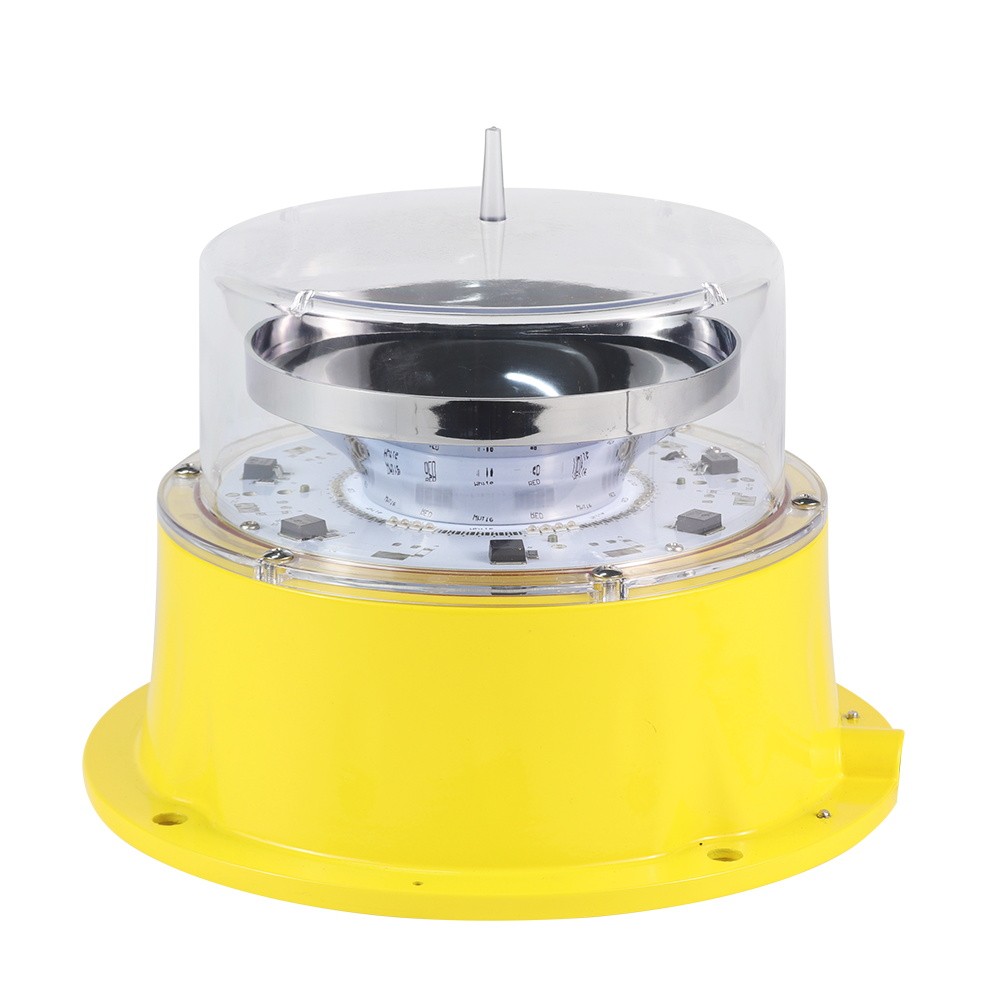

IP68 Medium Intensity Tower Light Aviation Obstruction Lights
Click on the image to view the original image
Product： views：7IP68 Medium Intensity Tower Light Aviation Obstruction Lights
Branch： Green Source
Type： Aviation Obstruction Lights
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 15:43
  Negotiated
Product Details
Overview
Quick Details
Type:
Aviation Obstruction Lights
Input Voltage(V):
AC220V.AC120V,AC110V,DC48V)
Lamp Power(W):
20
Lamp Luminous Flux(lm):
2000
Lamp Luminous Efficiency(lm/w):
100
CRI (Ra):
80
Color Temperature(CCT):
Cool White
Beam Angle(°):
360
IP Rating:
IP65
Certification:
CE, RoHS
Emitting Color:
Red
Lamp Body Material:
Aluminum Alloy
Base Type:
AR111
Light Source:
LED
Place of Origin:
Guangdong, China
Brand Name:
Green Source
FAAStandard:
L-864 ICAO Annex 14
Light intensity::
2000cd(more or less 25%)
Power Supply Frequency:
50HZ~60HZ
Working way:
Day and Night
Flash rate:
Flashing 20~40 times/min
Light source::
Big power and High brightness LED
Operating voltage:
AC120V,AC110V,DC48V
Horizontal Out-put:
360°
Vertical Divergence:
>10°
IP Protection:
IP68
Supply Ability
Supply Ability:
10000 Set/Sets per Month
Packaging & Delivery
Packaging Details
8pcs/ctn
Port
shenzhen
Lead Time:
Quantity(Sets)1 - 1011 - 5051 - 100 >100
Est. Time(days)31015To be negotiated
Product Description

Product Details

tower crane light


Its base is caste by high intensity aviation aluminum with full sealed structure;Light source adopts high efficient CREE chip that cooperate with independent researching and developing optical system, which has the high light intensity, low power consumption, long service life, lamp shade adopts Boron silicate glass materials, which has strong ability of corrosion, anti-UV, anti-shock; Controlling circuit has strong ability of lighting protection and with anti-surge protection device, it can adapt to extremely bad working environment.

Specification
LIGHTING
Effective Intensity
2000cd (±25%)
Compliant with
FAA L 864 /865
Emitting Color
red at night, white at daytime
Operation Mode
White light:flash 40 times/min;
red light:flash 20~40 times/min
Vertical Divergence
≥3°
Horizontal Out-put
360°
Light source
LED
POWER SUPPLY
Operating Voltage
AC 180V-264 V optional: (AC120V,AC110V,DC48V)
Power consumption
≤20W
power frequency
50-60HZ
STRUCTURE
Housing
Borosilicate glass
Body
Aircraft Aluminum, Die-casting
Temperature Range
-40℃~70℃
Wind Load
>80m/s
Overall size(mm)
Φ255 by 210
Installation size(mm)
Φ234 by M8
Water-proof
IP68
Weight
5.5KG
Applications

Vietnam Vinh Tan Thermal Plant Project
Vietnam Vinh Tan Thermal Plant Project Installing Our High Intensity Aviation Obstacle Waning Lights 4 Units And Medium Intensity Aviation Obstruction Lights 12 Units.
Easy installation and working perfect!
Related Products
FAQ

Q1. Can I have a sample order for Obstruction light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.

Q3. Do you have any MOQ limit for Obstruction light order?

A: Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for Obstruction light?

A: Firstly let us know your requirements or application.
    Secondly We quote according to your requirements or our suggestions.
    Thirdly customer confirms the samples and places deposit for formal order.
    Fourthly We arrange the production.

Q6. Is it OK to print my logo on Obstruction light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 2-5 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
