- Type:
- Aviation Obstruction Lights
- Input Voltage(V):
- DC6.4
- Lamp Power(W):
- 4
- Lamp Luminous Flux(lm):
- 400
- Lamp Luminous Efficiency(lm/w):
- 100
- CRI (Ra):
- 80
- Color Temperature(CCT):
- Cool White
- Beam Angle(°):
- 360
- IP Rating:
- IP67
- Certification:
- CE, FCC, RoHS
- Emitting Color:
- Red
- Lamp Body Material:
- Aluminum Alloy
- Base Type:
- 2G11
- Light Source:
- LED
- Place of Origin:
- Guangdong, China
- Brand Name:
- Green Source
- Standard:
- ICAO (Aerodromes Annex 14) , FAA L-810
- Light intensity:
- ≥32.5cd
- Working mode:
- Steady-burning mode or Flashing mode(20-60times/minute)
- Material:
- Housing: PC-Base: SUS304 stainless steel
- Overall Size(mm):
- 330 by 158 by 340
- Installation Size(mm):
- 3/4inch or 100 by 100 by 12
- Weight:
- 3Kg
- Ambient Temperature:
- -40℃~+60℃
- Windload:
- 80m/s
- Light source:
- LED,100,000hours service life
- Supply Ability:
- 5000 Piece/Pieces per Month
- Packaging Details
- 4pcs/carton
- Port
- shenzhen
- Lead Time:
Quantity(Sets) 1 - 10 11 - 50 51 - 100 >100 Est. Time(days) 5 10 15 To be negotiated
Product Details

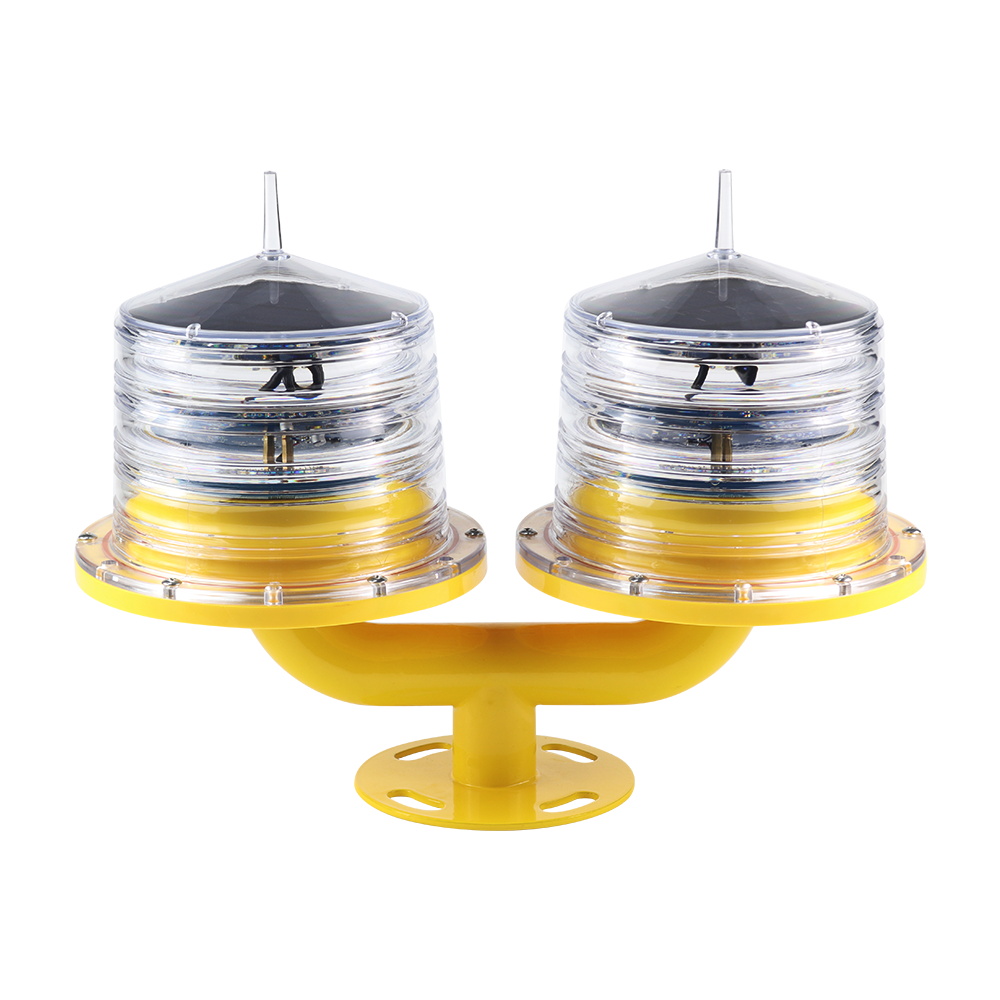

FAA L810 Led Tower Chimney Building Aircraft Obstruction Solar Aviation Warning light
Adopts insert high efficient solar panels integrated design. Control circuit adopts micro-power consumption, which reduce controlling circuit "s power consumption. Light source adopts high efficient LED chip, which has specific of high light intensity, low power consumption, long service life and so on.
The product base is made of stainless steel integrated that has the specific of light weight and corrosion insistence. It"s very convenient for installation and transportation.
Lampshade adopts PC material, which can corrosion resistance, anti-UV anti-shock.
LIGHTING | |
Effective Intensity | 32.5cd |
Compliant with | FAA L810, ICAO TYPE A |
Emitting Color | Red (optional: yellow amber, green blue, white) |
Operation Mode | Steady Burning / Flash Pattern |
Vertical Divergence | >10° |
Horizontal Out-put | 360° |
Light source | LED |
Light lifespan | >100,000 Hours |
POWER SUPPLY | |
Solar panel | 4W, 8.5V |
Battery | 6.4V 3Ah, lithium iron phosphate battery |
Power consumption | ≤1W |
solar panel lifespan | >20 Years |
STRUCTURE | |
Lens | Polycarbonate, UV Stabilize, Corrosion Resistance |
Body | SS 304 |
Temperature Range | -40℃~70℃ |
Wind Load | >80m/s |
Overall size(mm) | 356 by 186 by 282 |
Installation size(mm) | 3/4 inch or Φ100 x M10 |
Water-proof | IP67 |
Weight | 3KG |
Q1. Can I have a sample order for Obstruction light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q3. Do you have any MOQ limit for Obstruction light order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for Obstruction light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on Obstruction light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
