Shenzhen Helipad landing light Elevated Perimeter Light for helipad
Click on the image to view the original image
Product: views:8Shenzhen Helipad landing light Elevated Perimeter Light for helipad
Branch: Green & Source
Type: Aviation Obstruction Lights
Size: 17X17X32.5 cm
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-16 15:43
  Negotiated
Product Details
Overview
Quick Details
Type:
Aviation Obstruction Lights
Input Voltage(V):
AC220V ,AC120V,DC24V
Lamp Power(W):
3
Lamp Luminous Flux(lm):
300
Lamp Luminous Efficiency(lm/w):
100
CRI (Ra):
80
Beam Angle(°):
360
IP Rating:
IP65
Certification:
CE, EMC, LVD, RoHS
Emitting Color:
Green
Lamp Body Material:
Aluminum Alloy
Base Type:
BA9s
Light Source:
LED
Place of Origin:
Guangdong, China
Brand Name:
Green & Source
Supply Frequency:
50HZ~60HZ
Working Mode:
Steady burning
Intensity:
≥25cd
Light Source Service life:
≥20 years
Overall Size:
136x280
Installation Size:
D93 X M10
Ambient Temperature:
-20℃~60℃
Weight:
1.4kg
Humidity:
<95%
IP Protection:
IP 65

Packaging & Delivery

Selling Units:
Single item
Single package size:
17X17X32.5 cm
Single gross weight:
1.6 kg
Picture Example:
package-img
Lead Time:
Quantity(Set)1 - 56 - 2021 - 50>50
Est. Time(days)81020To be negotiated
Product Description


Product Details

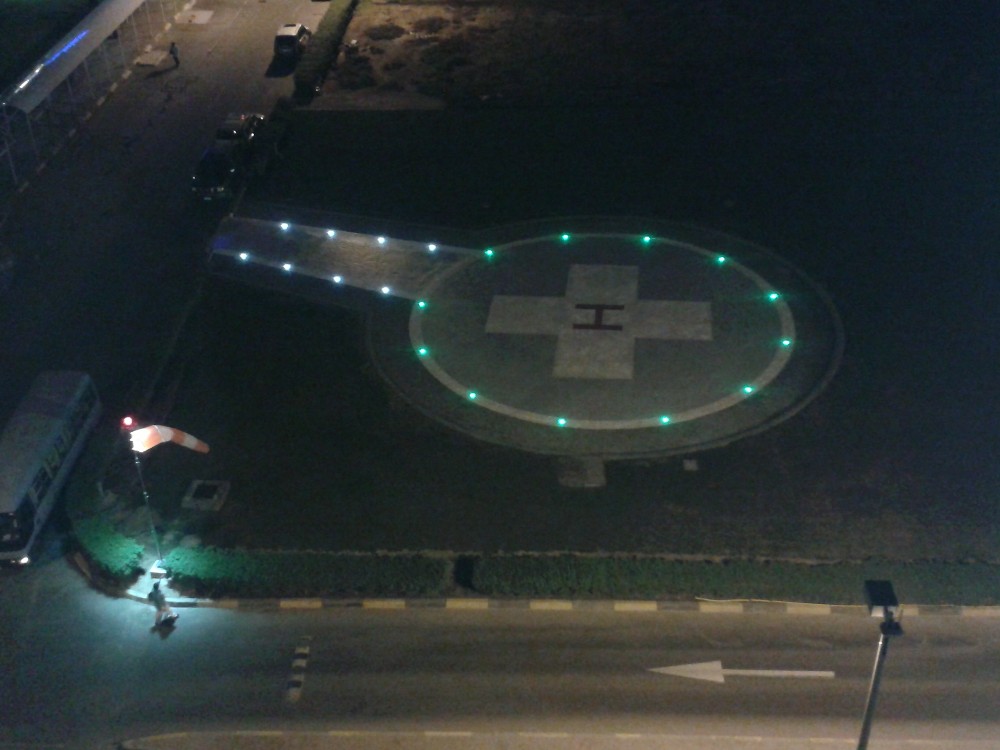

Adopts LED Light source technology, the service life is above 10 years, lampshade adopts tempress glass materials. This product is used for shining omnidirectional green light to indicate the location of helicopter ground connection and lift off.

Specification
Name
Parameter
Model
GS-HP/E
Standard
ICAO
Light Intensity
25cd
Working Mode
Steady Burning
Light Source
LED
Service Life Of LED
≥100,000 Hours
Operating Voltage
AC220V (Optional: AC110V, AC120V)
Power Consumption
≤3W
Overall Size
165mm×165mm×150mm
Installation Size
¢145mm×M10
Material
Tempress glass lampshade + Die-casting Aluminum base
Weight
1.8kg
Emitting Color
Green/Yellow/amber
Ambient Temperature
-20℃~60℃
Wind Load
80m/s
Protection Standard
IP65
Features

Independent designed tempered glass lens, irritation angle follow the standard ofICAO.


With work stability, strong anti-interference ability and shock resistance.

Full sealed structure base, with superior waterproof performance.

With the anti-surge protection device.

Professional custom LED chips, with high light brightness and long service life.

Transformer isolation step-down, all electrical work in low voltage circuit can save the service life of light source.

Easy to fold design, can reduce the secondary damage to helicopters effectively.

Arc adjustable design in chassis mounting holes, easy to install.

Structure Drawing
Applications
Related Products
FAQ

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for helipad light?

A: Firstly let us know your requirements or application.
    Secondly We quote according to your requirements or our suggestions.
    Thirdly customer confirms the samples and places deposit for formal order.
    Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 2-5 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
