Home > Products > Red Color Low intensity ICAO LED Aircraft Warning Light

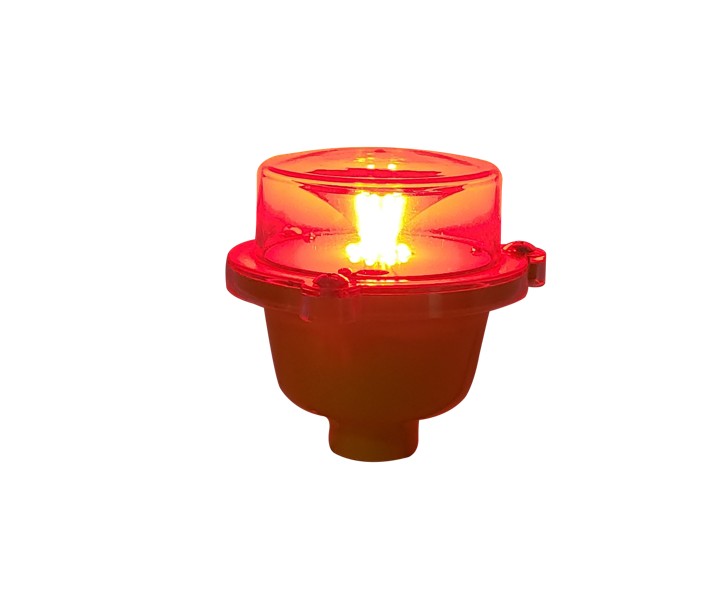

Red Color Low intensity ICAO LED Aircraft Warning Light
Click on the image to view the original image
Product: views:7Red Color Low intensity ICAO LED Aircraft Warning Light
Branch: Green Source
Type: Aviation Obstruction Lights
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-16 15:43
  Negotiated
Product Details
Overview
Quick Details
Type:
Aviation Obstruction Lights
Input Voltage(V):
AC220V AC110V DC48V or other
Lamp Power(W):
3
Lamp Luminous Flux(lm):
300
Lamp Luminous Efficiency(lm/w):
100
CRI (Ra):
80
Color Temperature(CCT):
Cool White
Beam Angle(°):
360 Degree
IP Rating:
IP65
Certification:
CE, RoHS
Emitting Color:
Red
Lamp Body Material:
Aluminum Alloy
Base Type:
2G11
Light Source:
LED
Place of Origin:
Guangdong, China
Brand Name:
Green Source
FAA Classify:
L-810
Supply Frequency:
50HZ~60HZ
Working Mode:
steady burning / flashing
Light Intensity:
32.5cd
Vertical Divergence:
≥3°
Light Source Service Life:
≥20 years
Ambient Temperature:
-40℃~70℃
Weight:
1kg
Anti-wind ability:
120m/s
Installation Size:
3/4 inches or 1 inch
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
12pcs/carton
Port
Shenzhen
Lead Time:
Quantity(Sets)1 - 1011 - 100101 - 500 >500
Est. Time(days)3715To be negotiated
Product Description

FAA L-810 LED Aviation Obstruction Light, Aircraft Warning Light for Tower and Crane

Light source adopt with independent research and development dedicated LED chip, which have the specific of low power consumption and long long life. Lampshade adopt with PC material, it can resist corrosion, anti-UV, anti-shock.

Management circuit with strong lightning protection and With the surge protection device, which can adopt to extremity bad working environment. This lamp with photoswich, it can turn on when light intensity less than 50LUX, and turn off when above 50Lux.

Specification
LIGHTING
Effective Intensity
32.5cd
Compliant with
FAA L810, ICAO TYPE B
Emitting Color
Red (optional: yellow amber, green blue, white)
Operation Mode
Steady Burning / Flash Pattern
Vertical Divergence
>3°
Horizontal Out-put
360°
Light source
LED
Light lifespan
>100,000 Hours
POWER SUPPLY
Voltage
AC220V AC120V DC48V DC24V DC12V
 Supply Frequency
50HZ-60HZ
Power consumption
≤3W
LED lifespan
>100000 hours
Light intensity
32.5cd
STRUCTURE
Lens
PC
Body
Aircraft Aluminum, Die-casting
Temperature Range
-40℃~70℃
Wind Load
120m/s

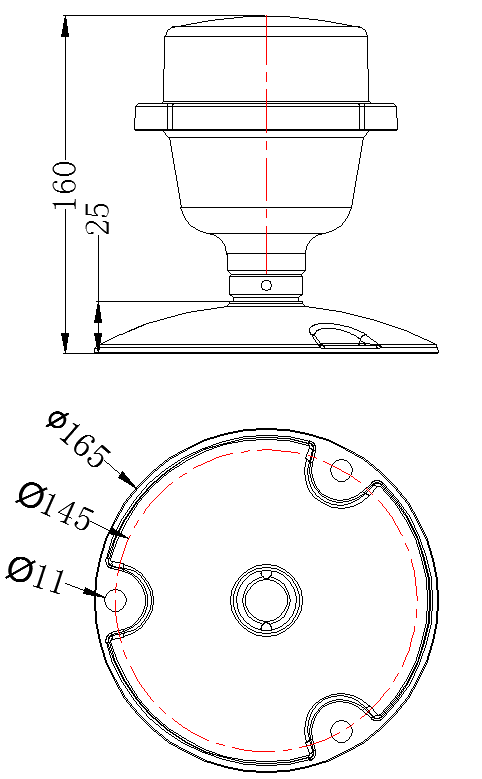

Overall size(mm)
136×136×210
Installation size(mm)
3/4 inches or 1 inche
Water-proof
IP65
Weight
1KG
Applications

Project Case
TNB tower project in Kuala Lumpur Malaysia, installed our low intensity obstruction lights.
Related Products

Solar Powered Low Intensity Single Aviation Obstruction Light

Solar Powered Low Intensity Double Aviation Obstruction Light

Solar Powered Low Intensity Aviation Obstruction Light

Solar Powered Medium Intensity Type B Aviation Obstruction Light

Solar Powered Medium Intensity Type A Aviation Obstruction Light

Solar Powered Medium Intensity Type B Aviation Obstruction Light

FAQ

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for obstruction light?

A: Firstly let us know your requirements or application.
    Secondly We quote according to your requirements or our suggestions.
   Thirdly customer confirms the samples and places deposit for formal order.
    Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 2-5 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution
including re-call according to real situation.
