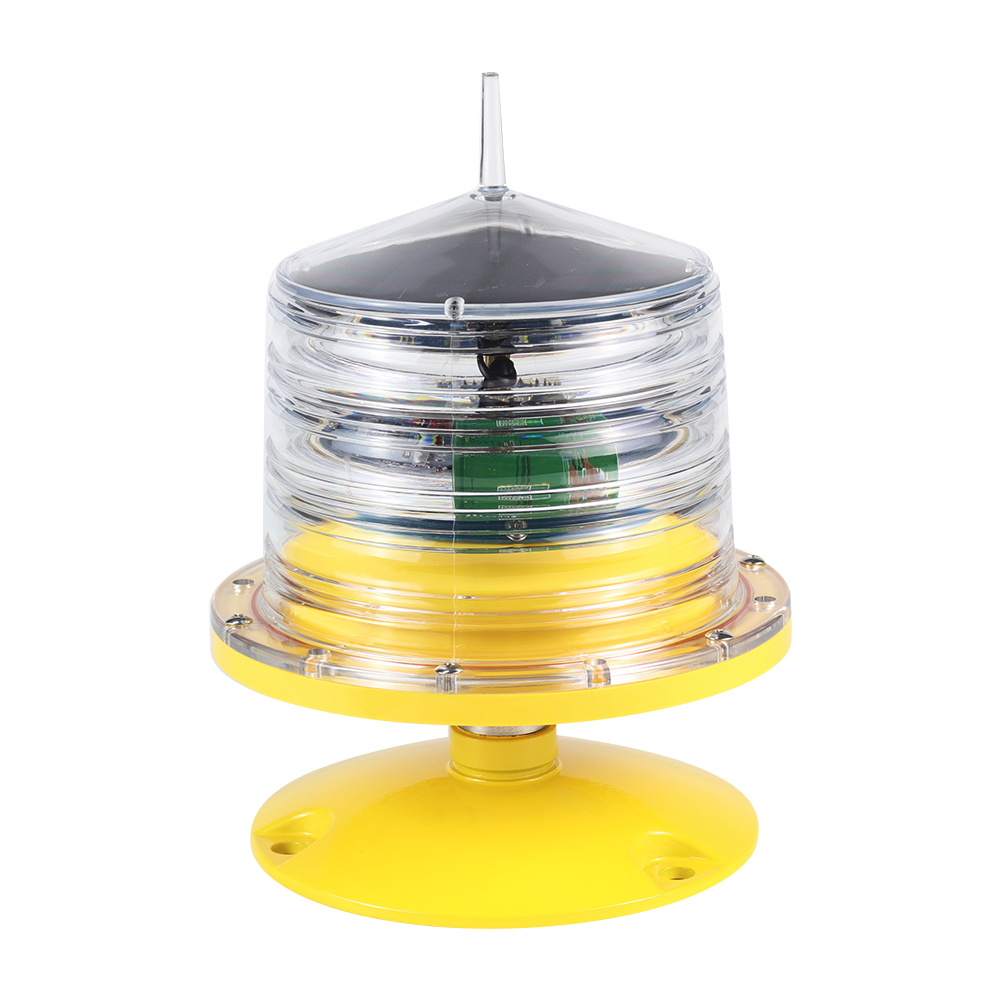

GS-HP/ET Solar Powered Heliport navigation light Elevated Perimeter Light adopts LED Light source technology, the service life is above 10 years, lampshade adopts tempress glass materials. This product is used for shining omnidirectional green light to indicate the location of helicopter ground connection and lift off.
Overview
Quick Details
- Type:
- Aviation Obstruction Lights
- Input Voltage(V):
- 6.4V
- Lamp Power(W):
- 3
- Lamp Luminous Flux(lm):
- 300
- Lamp Luminous Efficiency(lm/w):
- 100
- CRI (Ra):
- 80
- Beam Angle(°):
- 360
- IP Rating:
- IP65
- Certification:
- CE, EMC, LVD, RoHS
- Emitting Color:
- Green
- Lamp Body Material:
- Aluminum Alloy
- Base Type:
- BA9s
- Light Source:
- LED
- Place of Origin:
- Guangdong, China
- Brand Name:
- Green & Source
- Supply Frequency:
- 50HZ~60HZ
- Working Mode:
- Steady burning
- Intensity:
- ≥25cd
- Light Source Service life:
- ≥20 years
- Overall Size:
- 186mmx245mm
- Installation Size:
- D145mm X M10
- Ambient Temperature:
- -20℃~60℃
- Weight:
- 1.4kg
- Humidity:
- <95%
- IP Protection:
- IP 65
Supply Ability
- Supply Ability:
- 10000 Piece/Pieces per Month
Packaging & Delivery
- Packaging Details
- Each on in bubble pack, then in small carton, 8 pcs in a big carton
- Port
- Shenzhen
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Sets) 1 - 5 6 - 20 21 - 50 >50 Est. Time(days) 8 10 20 To be negotiated
Product Description
Product Details
Specification
Name | Solar Powered Heliport navigation light Elevated Perimeter Light |
Model | GS-HP/ET |
Standard | ICAO |
Light Intensity | 25cd |
Working Mode | Steady Burning |
Light Source | LED |
Service Life Of LED | ≥100,000 Hours |
Operating Voltage | DC6.4V |
Power Consumption | ≤3W |
Overall Size | 186mm×186mm×245mm |
Installation Size | ￠145mm×M10 |
Material | Aluminum base+Speicial PC lampshade |
Weight | 2kg |
Emitting Color | Green |
Ambient Temperature | -20℃～60℃ |
Wind Load | 80m/s |
Protection Standard | IP65 |
Features
1.Integrated structure design, simple installation and disassembly.
2.Easy folding protection device.
3.Stable work, strong anti - interference ability, anti - vibration.
4.Fully sealed structure, excellent waterproof performance.
5.Self-packaging high-power LED light source with high brightness and long service life.
6.Can choose to have remote control function, can control the lamp remotely.
Structure Drawing
Applications
Related Products
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for helipad light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
