- Type:
- Aviation Obstruction Lights
- Input Voltage(V):
- AC120V, DC12V,DC24V,DC48V
- Lamp Power(W):
- 3
- Lamp Luminous Flux(lm):
- 300
- Lamp Luminous Efficiency(lm/w):
- 100
- CRI (Ra):
- 80
- Beam Angle(°):
- 360
- IP Rating:
- IP65
- Certification:
- CE
- Emitting Color:
- Red
- Lamp Body Material:
- Aluminum Alloy
- Base Type:
- 2G11
- Light Source:
- LED
- Place of Origin:
- Guangdong, China
- Brand Name:
- Green & Source Light
- Products name:
- LED Low Intensity Aviation Obstruction Light
- Working mode:
- Steady Burning, or Flashing 20~60 times/Min.
- Light Intensity:
- Type B not less than 32.5cd, Type A not less than 10cd
- Horizontal out-put:
- 360
- Vertical Divergence:
- 10
- Light Source Service Life:
- not less than 20 years
- Overall Size:
- 136mm x 136mm x 220mm
- Weight:
- 1.2KG
- Installation Size:
- 3/4inches or 1 inch, Chassis install
- Ambient Temperature:
- -40degree ~70degree
- Supply Ability:
- 5000 Piece/Pieces per Month
- Packaging Details
- 4pcs/carton
- Port
- Shenzhen
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 10 11 - 50 51 - 100 >100 Est. Time(days) 3 10 13 To be negotiated
Model type: GS-LI/B GS-LI/A
Product Overviews
GS-LI/B GS-LI/A low intensity Single Aviation Obsturction Light , base with high intensity aviation aluminum casting, fully sealed structure; Light source adopt with independent research and developmtn dedicated LED chip, which have the specific of low power consumption and long operational life; Lampshade adopt with PC material, it can resist corrosion, anti-UV, anti-Shock; management circuit with Strong lightning protection and With the surge protection device, which can adopt to extremely bad working environment. The type of lamp has photoswitch, it can turn on when enviroment light intensity is less than 50 LUX, and turn off when that above 50 LUX.
Product Details
Function & Features
- Adopts Fresnel lens PC lamp shade, Converging angle meets FAA standard
- With automatically light control function that can change to working mode at rainy day and night.
- Led light source, it service life is up to 100,000hours.
- Low voltage design, high safety degree for using.
- With the impact resistance, anti lighting, resistant to sunlight, anti snow, can resist typhoons, hail and other severe weather.
- With over-current protection function.
- Possess lightning protection function.
- It can be added with warning function at dry contact.
- It contains switch for changing flashing light and steady light.
- No radio frequency(rf), no electromagnetic interference.

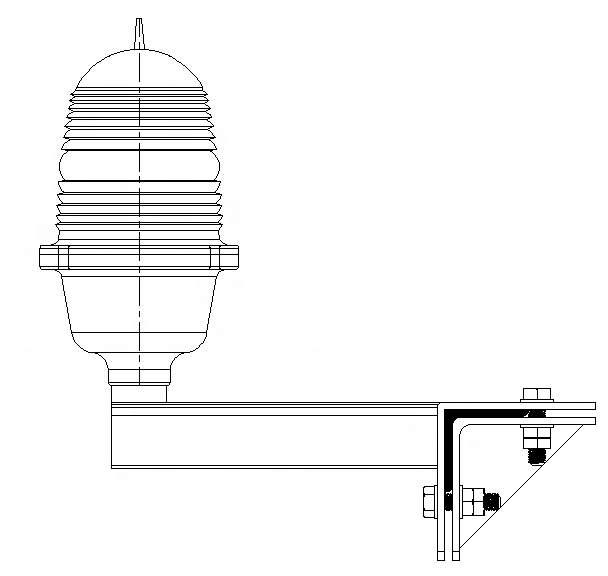

Dimension Drawing
Usage Notice
- Don"t use any out of nominal voltage, or will destroy equipment.
- Don"t open it if the device is out of operation, or will be hurt by the internal high pressure.
- After finished the installation, the personnel must check whether the device is in a good waterproof condition and whether the screw spikes are tightened.
- Non-professional workers cannot do the device maintenance, or will expand the error and be hurt.

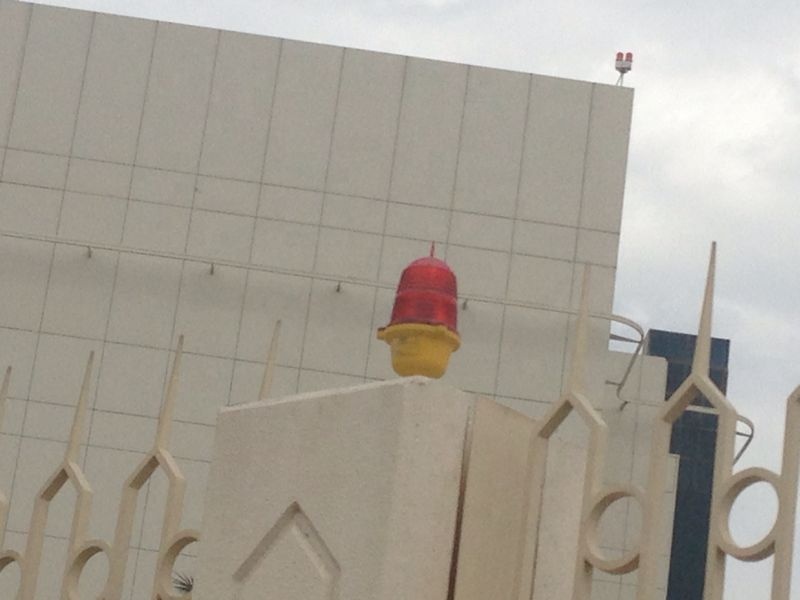

Application
- Block
- Airport
- High mast lamp
- Chimney
- Bridge
- Iron tower
- Communication Tower
- High-rise building
