Click on the image to view the original image
- Type:
- Aviation Obstruction Lights
- Input Voltage(V):
- AC 85V~264V
- Lamp Power(W):
- 3
- Lamp Luminous Flux(lm):
- 300
- Lamp Luminous Efficiency(lm/w):
- 100
- CRI (Ra):
- 80
- Color Temperature(CCT):
- Cool White
- Beam Angle(°):
- 360
- IP Rating:
- IP67
- Certification:
- CE, RoHS
- Emitting Color:
- Red
- Lamp Body Material:
- Aluminum Alloy
- Base Type:
- 2G11
- Light Source:
- LED
- Place of Origin:
- Guangdong, China
- Brand Name:
- Green Source
- FAA Classify:
- L-810
- Supply Frequency:
- 50HZ~60HZ
- Working mode:
- Steady burning / Flashing
- Light Intensity:
- 32.5cd
- Vertical Divergence:
- 3°
- Service Life:
- Not less than 20 years
- Ambient Temperature:
- -40 ~+70
- Weight:
- 1kg
- Anti-wind ability:
- 120m/s
- Installation size:
- 3/4 Inches or 1 inch
- Supply Ability:
- 5000 Piece/Pieces per Month
- Packaging Details
- each one in bubble pack, in small carton , 12 sets in big carton.
- Port
- Shenzhen
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Sets) 1 - 10 11 - 50 51 - 100 >100 Est. Time(days) 7 10 15 To be negotiated

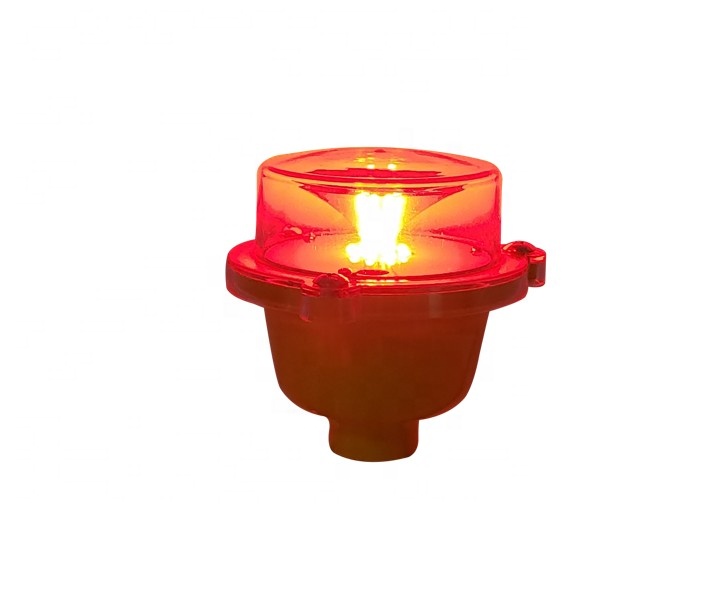

IP67 FAA L810 newest model Low Intensity Aviation Obstruction Light
Model type:GS-LI/B with the mounting base
Model type:GS-LI/B without the mouting base(default setting)
Product Overviews
GS-LI/B Low-intensity aviation obstruction lights, compliance to ICAO Annex 14 Low Intensity types B (32.5cd) and FAA L-810, are for use on aviation obstructions. The mounting base is cast with high intensity aviation aluminum, fully sealed structure. Light source adopt with independently researched and produced LED chip,and upgrate with reflective optical structure, which create better uniformity of luminance, lower power consumption.The LED"s are rated for 100,000 hours. Lampshade adopt with PC material, which has the ability of anti-UV, anti-shock, and corrosion resistance. Circuit management system has strong lightning protection design. The good seismic performance can guarantee proper use under the extremely bad working environment. Our lamp has automatic photoswitch, which can turn on when environment intensity less than 50 Lux, and turn off when above 50 Lux. We offer 2~5years limited warranty subject to Green Source Terms & Conditions of Sales.
Product Details
Function & Features
- Upgrated with reflective optical structure, Better uniformity of luminace, Lower power consumption.
- Set with automatic light control function that can change to working mode at rainy day and night.
- LED light source, its service life can be up to 100,000hours.
- Low voltage design, high safety degree for using.
- Good ability of Impact resistance, anti-lighting, anti-UV, anti-snow, typhoon resistance, and function well on other severe weather.
- Possess over-current protection function.
- It can be added warning function at dry contact.
- It contains switch between flashing light and steady light.
- No radio frequency, no electromagnetic interference.

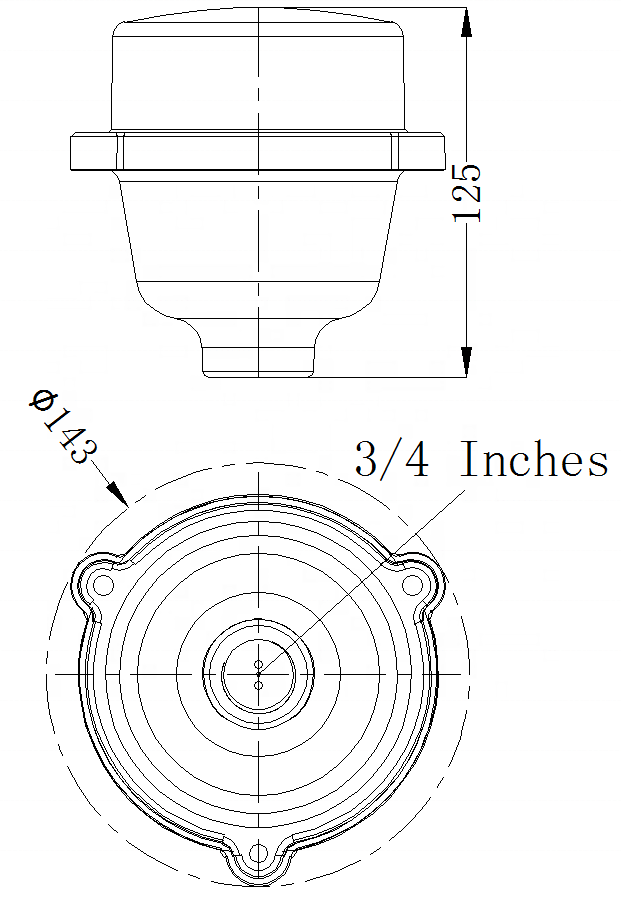

Dimension Drawing
Model type:GS-LI/B with the mounting base
Model type:GS-LI/B without the mouting base(default setting)
Usage Notice
- Don"t use any out of nominal voltage, or will destroy equipment.
- Don"t open it if the device is out of operation, or will be hurt by the internal high pressure.
- After finished the installation, the personnel must check whether the device is in a good waterproof condition and whether the screw spikes are tightened.
- Non-professional workers cannot do the device maintenance, or will expand the error and be hurt.
Application
- Block
- Airport
- High mast lamp
- Chimney
- Bridge
- Iron tower
- Communication tower
- High-rise building
