Shenzhen Green Source Light Equipment Co., Ltd.

Product Overviews

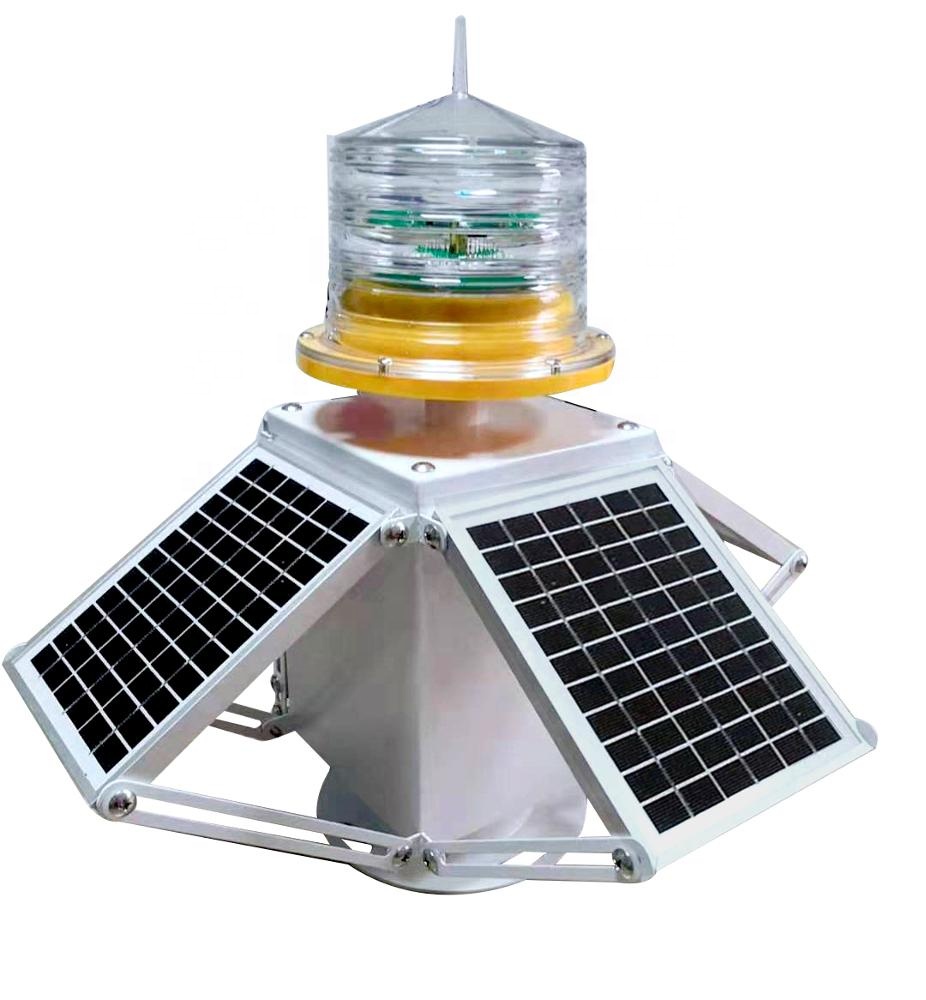

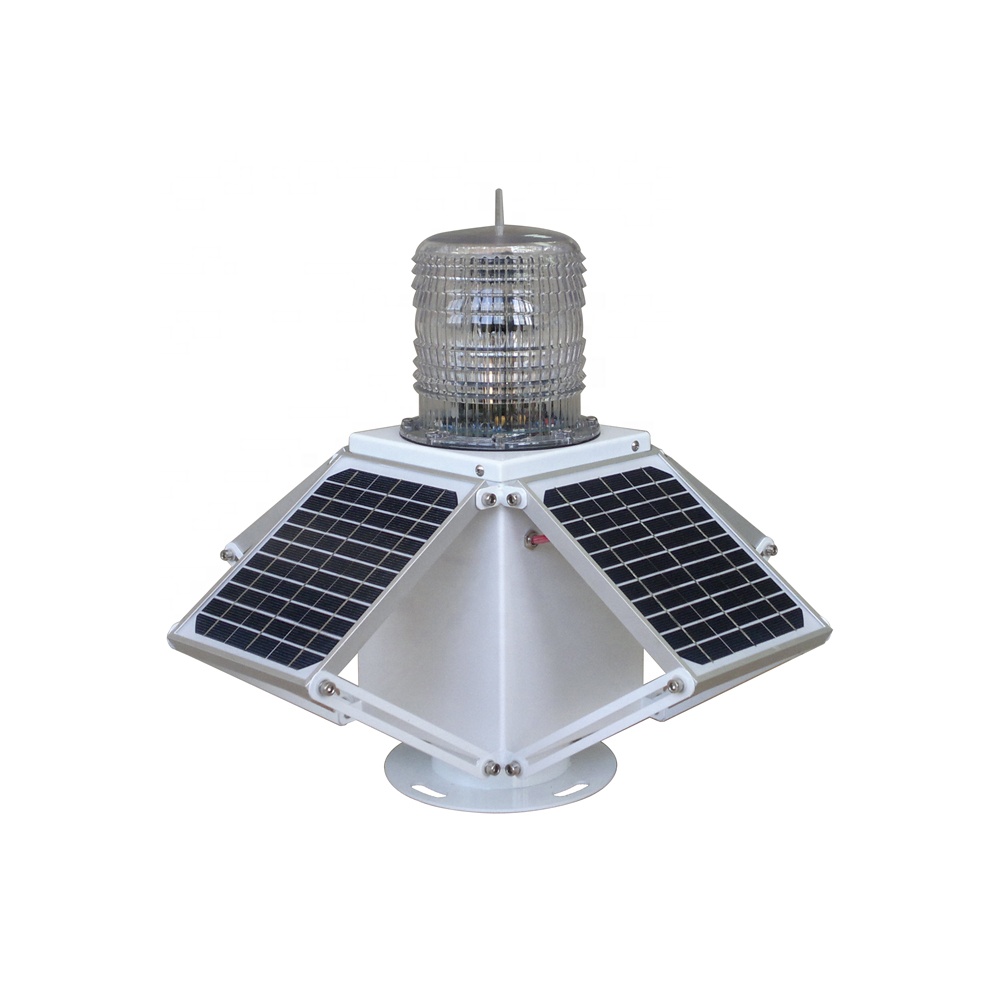

GS-LS/B Range 5~10 NM GPS sync Solar powered marine lantern navigation light adopts advanced structure design with 4 groups of solar panels which features with angle adjustable and high efficiency, cooperated with solar dedicated battery as power supply.

Advanced power management system will be used to charge the power in a full protection in order to save the service life of battery if it is under the condition of short-voltage/over-voltage or temperature too high/too low.

Control circuits adopt with low power dissipation control chip, which can reduce circuit power consumption.

The light source adopts imported LED chip, which has advantage of high ligh intensity, lower power consuption, long service life and so on.

Lampshade adopts PC material, which has the ability of anti-UV, anti-shock, and corrosion resistance.

Product shell adopt 304L stainless steel materials with stoving varnish, which is lightweight and corrosion resistance and easy installation and transportation.

Remote monitoring programmer optional, it can transfer lantern"s real-time information to mobile terminal, or forward the real-time working situation by SMS. And manager can control the equipment by smart phone software.

Product Details

Function & Features

• Continuous working time in rainy day can reach to more than 30days.(10 hours a day)
• Internal GPS synchronisation system optional, as standard for synchronized flashing
• Photocell can switch ON/OFF the light in rainy days or at night automatically
• Special LED chips for aviation obstruction lights, conversion efficiency is much higher than other general LED.
• Special LED chips for aviation obstruction lights, conversion efficiency is much higher than general LED.
• Good ability of Impact resistance, light fastness,  anti-lighting, anti-UV, anti-snow, typhoon resistance, and function well on other severe weather.
• Bse on LED technology, its color meet the IALA recommendations E-200-2 requirement.
• Replaceable sealed lead-acid battery which service life can reach to 2 years.
• Incorporated an enviroment-friendly spike-deterring unwelcome bird life
• No radio frequency, no electromagnetic interference
• Optional remote control function.
• 2~5 years warranty subject to our sales term

Dimension Drawing

Usage Notice

• Please read the instruction carefully and then use the device correctly
• Solar powered marine lantern must be installed in a sunny place to keep it working continuously
• Please install this light on the installation plane that perpendicular to light axis, installation plane should has enough mechanical strength
• Ensure to place the device under sunlight to recharge power 12 hours before the initial use
• Please turn off the device and put it under sunlight for 5 days to recharge power each 3 months if stored without use

Application

• Sea ways
• River ways
• Lakes
• Shore beacone
• Mariculture zone
• Lighthouse
• Oilfield
• Derrick

 Company Information

 Shenzhen Green Source Light Equipment Co., Ltd is specialized in independently researching, developing and manufacturing the full range of Aviation Obstruction Light & Heliport and Helideck Light & Marine Lanterns and Equipment.

We provide full series solutions from Research to Production. We insist on offering high quality Aviation Obstruction Light & Heliport and Helideck Light & Marine Lanterns. All those products compliance to ICAO Annex 14, FAA standard, MH/T6012-2015 standard, etc. We produce High intensity/ Medium intensity / Low intensity LED & Solar Powered Aviation Obstruction Light. And Heliport or Helideck light includes aiming point light, Beacon, Insert & Elevated FATO Perimeter light, Taxiway Edge light, Guidence light, Lighted wind cone & Surface Floodlights. We design, produce and supply all these products and own some our patented inventions.

After 10 years development, we rank ahead in our industry in China.

Key products

 Our Certifications

FAQ

Q1:Can I have a sample order for your products?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2: What about the lead time?

A:Sample needs 3~5days, mass production time needs 1~2 weeks. It is negotiable, if quantity more than 100.

Q3:Do you have any MOQ limit for Obstruction light order?

A:No limit, 1pc for sample checking is avaiable.

Q4:How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT worldwide Express. It usually takes 3~5days to arrive, door to door. You also could choose freight by air or by sea.

Q5:How to procced an order for Obstruction light?

A:Firstly let us know your requirement or appliction.

   Secondly we will quote according to your requirement or suggested appropriate products.

   Thirdly you confirm prices and check the samples.

   Fourthly you confrim order and place deposit for formal order.

   Then we will arrange the mass production for you.

Just feel free to contact us, we will effectively serve you and satisfy you.

Q6: is it OK to print my logo on Obstruction light product?

A: Yes, Please inform us formally before our production and confirm the design firstly based on our sample.

Q7:Do you offer guarantee for the products?

A:Yes. we offer 2~5years warranty on our products.

Q8:How to deal with the faulty?

A: Firstly, our products are produced under strict quality control system and the defective rate will be less than 0.2%.

    Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
