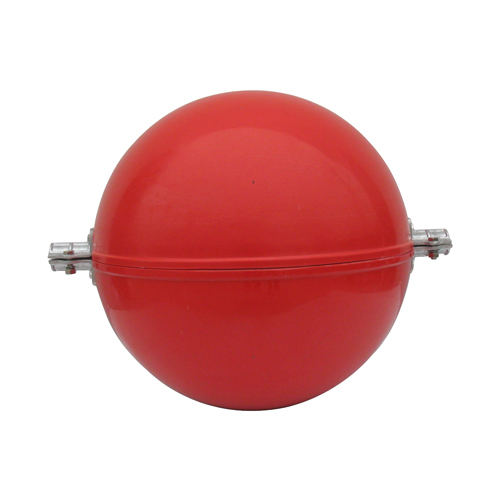

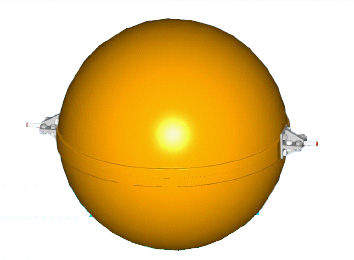

GS-AWS High Quality Aviation Obstruction Ball Aircraft Warning Sphere Alerting Ball
Product Overviews
GS-AWS High Quality Aviation Obstruction Ball Aircraft Warning Sphere Alerting Ball, adopts high intensity glass fiber, the surface coating adopts reflective coatings that is corrosion and aging resistance, non-discoloured service life can be above 5 years.
Product Details
| Model Type | GS-AWS |
| Overall Size | 600(diameter) x741.5mm |
| Optional color | Red, white, orange |
| Reflection coefficient | 0.3~0.7 |
| Optional material | Glass fiber, FRP |
| Weight | 6.3kg |
| Standard | ICAO(Aerodromes Annex 14) |
Function & Features
- Adopts high reflection coefficient coatings
- Aluminum Alloy material clamp, Light weight and convenient to install.
- Glass fiber material, light weight, high strength. Tensile strength not less than 128Mpa, Bending strength not less than 230Mpa.
Dimension Drawing
Installation Info.
- At the mount point the alerting ball, wrap cable protecting bars round cables for 1000~1200mm long, with two ends of protecting bars extending 200~300mm beyong the surface of the ball.
- Fix the plastic wires which are mounted on lower hemisphere of the ball onto the cables and twist them.
- Combine the lower hemisphere with the upper hemisphere according to module codes. Turn the hemisphere during the assembly and make sure two hemispheres are joined into position.
- Insert stainless stell bolt(M12*35)and then put flat washers and spring washers around each bolt. Tighten each nut at last.
Usage Notice
- To avoid causing accident, installers should do good personel safety measurement.
- No beat, no press, no heavy weight for long time to avoide damaged, deformation, or will affect installation.
- To avoid potential drop, clamp fixed screw must be checked if tightening
Application
- Overhead transmission line, ultrahigh-tension transmission line, Rive-crossing transmission cable, ultra high cable.
