Home > Products > IP68 GS-HP/ET Steady burning solar powered Heliport Elevated Perimeter Light

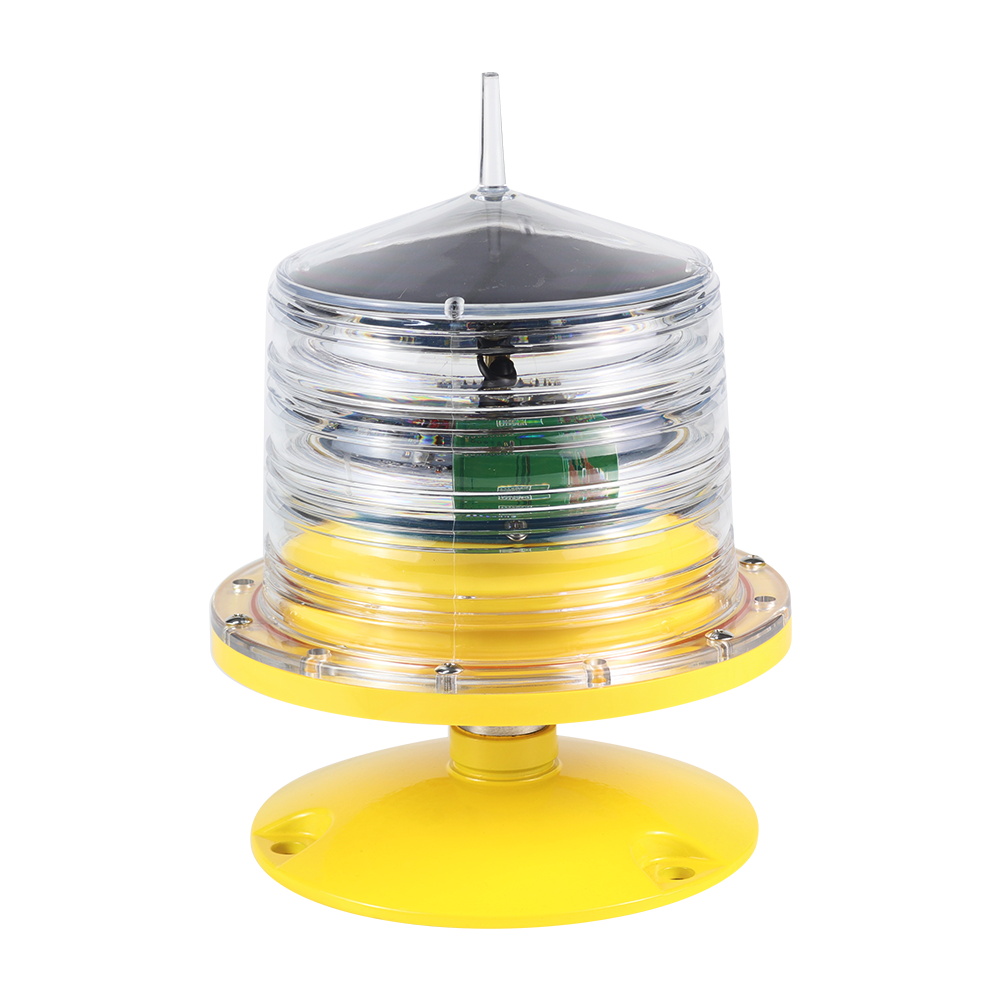

IP68 GS-HP/ET Steady burning solar powered Heliport Elevated Perimeter Light
Click on the image to view the original image
Product： views：6IP68 GS-HP/ET Steady burning solar powered Heliport Elevated Perimeter Light
Branch： Green & Source
Type： Aviation Obstruction Lights
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 15:43
  Negotiated
Product Details
Overview
Quick Details
Type:
Aviation Obstruction Lights
Input Voltage(V):
6.4V
Lamp Power(W):
3
Lamp Luminous Flux(lm):
300
Lamp Luminous Efficiency(lm/w):
100
CRI (Ra):
80
Beam Angle(°):
360
IP Rating:
IP65
Certification:
CE, EMC, LVD, RoHS
Emitting Color:
Green
Lamp Body Material:
Aluminum Alloy
Base Type:
BA9s
Light Source:
LED
Place of Origin:
Guangdong, China
Brand Name:
Green & Source
Supply Frequency:
50HZ~60HZ
Working Mode:
Steady burning
Intensity:
≥25cd
Light Source Service life:
≥20 years
Overall Size:
186mmx245mm
Installation Size:
D145mm X M10
Ambient Temperature:
-20℃~60℃
Weight:
1.4kg
Humidity:
<95%
IP Protection:
IP 65
Supply Ability
Supply Ability:
5000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Each in bubble pack, then in small carton, 4 sets in a big carton
Port
Shenzhen
Picture Example:
package-img
Lead Time:
Quantity(Sets)1 - 56 - 2021 - 50 >50
Est. Time(days)81020To be negotiated
Product Description


Product Overviews


IP68 GS-HP/ET steady burning solar powered Heliport Elevated Perimeter Light Shell is injection mold  with high strength materials which has excellent water resistance and aging resistance.

Internal LED light source is designed with advanced optical lens, which luminous angle meet FAA standards.

It can emitting 360 degree green light signal at night or in low visibility daytime, clearly indicating the heliport perimeter.

Specification
Name
Parameter
Model
GS-HP/ET
Standard
ICAO
Light Intensity
25cd
Working Mode
Steady Burning
Light Source
LED
Service Life Of LED
≥100,000 Hours
Operating Voltage
DC6.4V
Power Consumption
≤3W
Overall Size
186mm×186mm×245mm
Installation Size
￠145mm×M10
Material
Aluminum base+Speicial PC lampshade
Weight
2kg
Emitting Color
Green
Ambient Temperature
-20℃～60℃
Wind Load
80m/s
Protection Standard
IP68
Features

1.Integrated structure design, simple installation and disassembly.


2.Easy folding device.


3.Stable work, strong anti - interference ability, anti - vibration.


4.Fully sealed structure, excellent waterproof performance.


5.Self-packaging high-power LED light source with high brightness and long service life.


6.Can choose to have remote control function, can control the lamp remotely.

Structure Drawing
Applications
Company Profile

Shenzhen Green Source Light Equipment Co., Ltd

 We are specialized in independently researching, developing and manufacturing the full range of Aviation Obstruction Light & Heliport and Helideck Light & Marine Lanterns and Equipment.

We provide full series solutions from Research to Production. We insist on offering high quality Aviation Obstruction Light & Heliport and Helideck Light & Marine Lanterns. All those products compliance to ICAO Annex 14, FAA standard, MH/T6012-2015 standard, etc. We produce High intensity/ Medium intensity / Low intensity LED & Solar Powered Aviation Obstruction Light. And Heliport or Helideck light includes aiming point light, Beacon, Insert & Elevated FATO Perimeter light, Taxiway Edge light, Guidence light, Lighted wind cone & Surface Floodlights. We design, produce and supply all these products and own some our patented inventions.

After 10 years development, we rank ahead in our industry in China.



Recommend Products
FAQ

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for helipad light?

A: Firstly let us know your requirements or application.
    Secondly We quote according to your requirements or our suggestions.
    Thirdly customer confirms the samples and places deposit for formal order.
    Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 2-5 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
