- Type:
- Aviation Obstruction Lights
- Input Voltage(V):
- AC 220V
- Lamp Power(W):
- 3
- Lamp Luminous Flux(lm):
- 300
- Lamp Luminous Efficiency(lm/w):
- 100
- CRI (Ra):
- 80
- Color Temperature(CCT):
- other
- Beam Angle(°):
- 360
- IP Rating:
- IP67
- Certification:
- CE, RoHS
- Emitting Color:
- Red
- Lamp Body Material:
- Aluminum Alloy
- Base Type:
- 2G11
- Light Source:
- LED
- Place of Origin:
- Guangdong, China
- Brand Name:
- Green Source
- FAA Classify:
- L-810
- Supply Frequency:
- 50HZ~60HZ
- Working mode:
- Steady burning
- Light Intensity:
- not less than 200cd
- Vertical Divergence:
- 3°
- Service Life:
- Not less than 20 years
- Ambient Temperature:
- -40 ~70 degree
- Weight:
- 3.5KG
- Anti-wind ability:
- 80m/s
- Installation size:
- 234 by M8
- Supply Ability:
- 5000 Piece/Pieces per Month
- Packaging Details
- each one in bubble pack, in small carton ,4 pcs in big carton.
- Port
- Shenzhen
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 10 11 - 50 51 - 100 >100 Est. Time(days) 7 10 15 To be negotiated

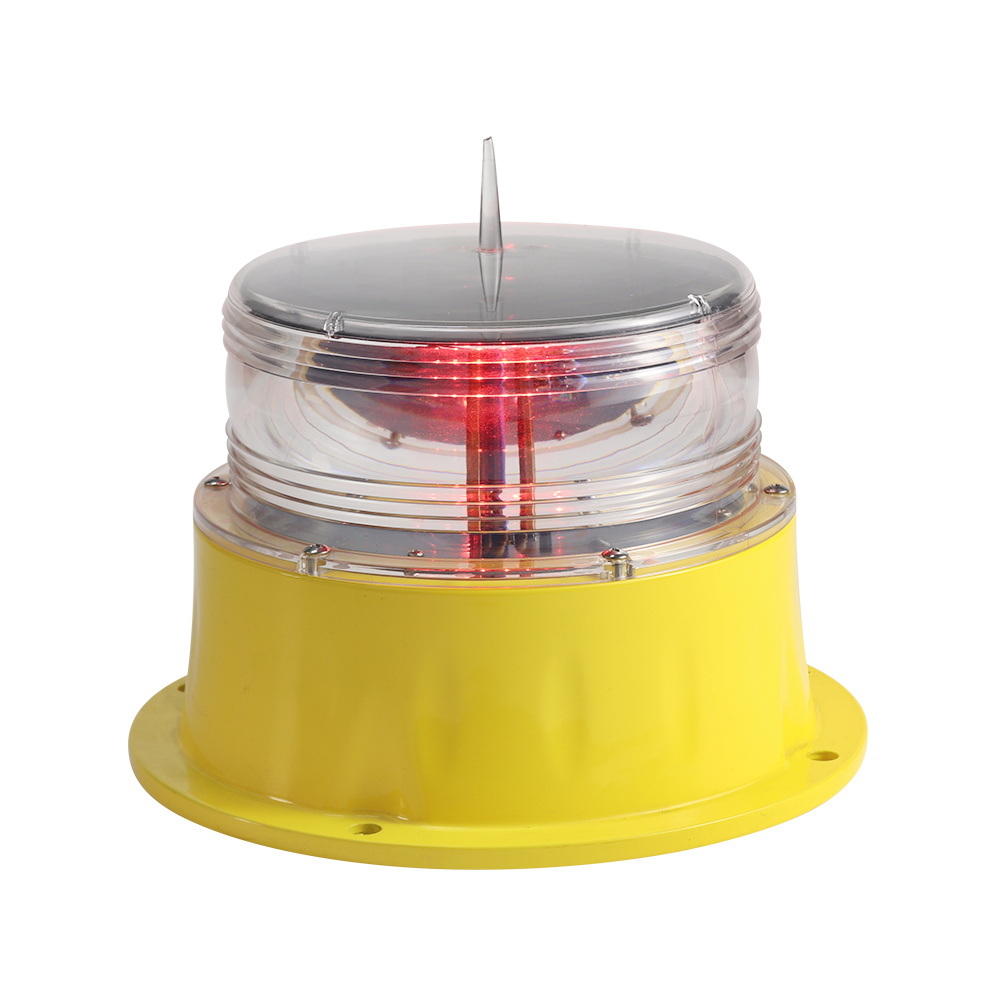

FAA L810 GS-LI/C Low Intensity type C
Aviation Obstruction Light for moving obstacles
Model type:GS-LI/C
Product Overviews
FAA L810 GS-LI/C Low Intensity type C Aviation Obstruction Light for moving obstacles
, compliance to ICAO Annex 14 Low Intensity types C (40cd~400cd) and FAA L-810, are applyed on moving aviation obstructions.
Base adopts high strength/intensity aviation aluminum die-casting, fully sealed structure.
Light source adopt with independently researched and produced LED chip,which have the specific of high light intensity and long service life.
Lampshade adopt with PC material, which has the ability of anti-UV, anti-shock, and corrosion resistance.
Circuit management system has strong lightning protection and surge protection function. The good seismic performance can guarantee proper use under the extremely bad working environment.
We offer 2~5years limited warranty subject to Green Source Terms & Conditions of Sales.
Product Details
Function & Features
- Adopts imported chip, which has the specific of high light intensity, low power consuption, long service life.
- The shell adopts high intensity aviation aluminum to cast, with full seal structure.
- Independent research and development design with patented optical lens, emitting angle compliance to standard of FAA, ICAO.
- Lamp shade adopts PC material, provide strong ability of corrosion resistance, anti-uv,anti-shock.
- With anti-surge protection device, it can adapt to extremely bad working enviroment.
- Adopts advanced technology of powder coating, provide excellent heat dissipation, which can reduce the volume and weight of lamps effectively
- Possess ability of anti-shock, light fastness, anti-rain and snow.
- With over-current protection function.
Dimension Drawing
Usage Notice
- Don"t use any out of nominal voltage, or will destroy equipment.
- Don"t open it if the device is out of operation, or will be hurt by the internal high pressure.
- After finished the installation, the personnel must check whether the device is in a good waterproof condition and whether the screw spikes are tightened.
- Non-professional workers cannot do the device maintenance, or will expand the error and be hurt.
Application
- Any moving obstacles that may affect aviation safety.
Company Information
Shenzhen Green Source Light Equipment Co., Ltd is specialized in independently researching, developing and manufacturing the full range of Aviation Obstruction Light & Heliport and Helideck Light & Marine Lanterns and Equipment.
We provide full series solutions from Research to Production. We insist on offering high quality Aviation Obstruction Light & Heliport and Helideck Light & Marine Lanterns. All those products compliance to ICAO Annex 14, FAA standard, MH/T6012-2015 standard, etc. We produce High intensity/ Medium intensity / Low intensity LED & Solar Powered Aviation Obstruction Light. And Heliport or Helideck light includes aiming point light, Beacon, Insert & Elevated FATO Perimeter light, Taxiway Edge light, Guidence light, Lighted wind cone & Surface Floodlights. We design, produce and supply all these products and own some our patented inventions.
After 10 years development, we rank ahead in our industry in China.
